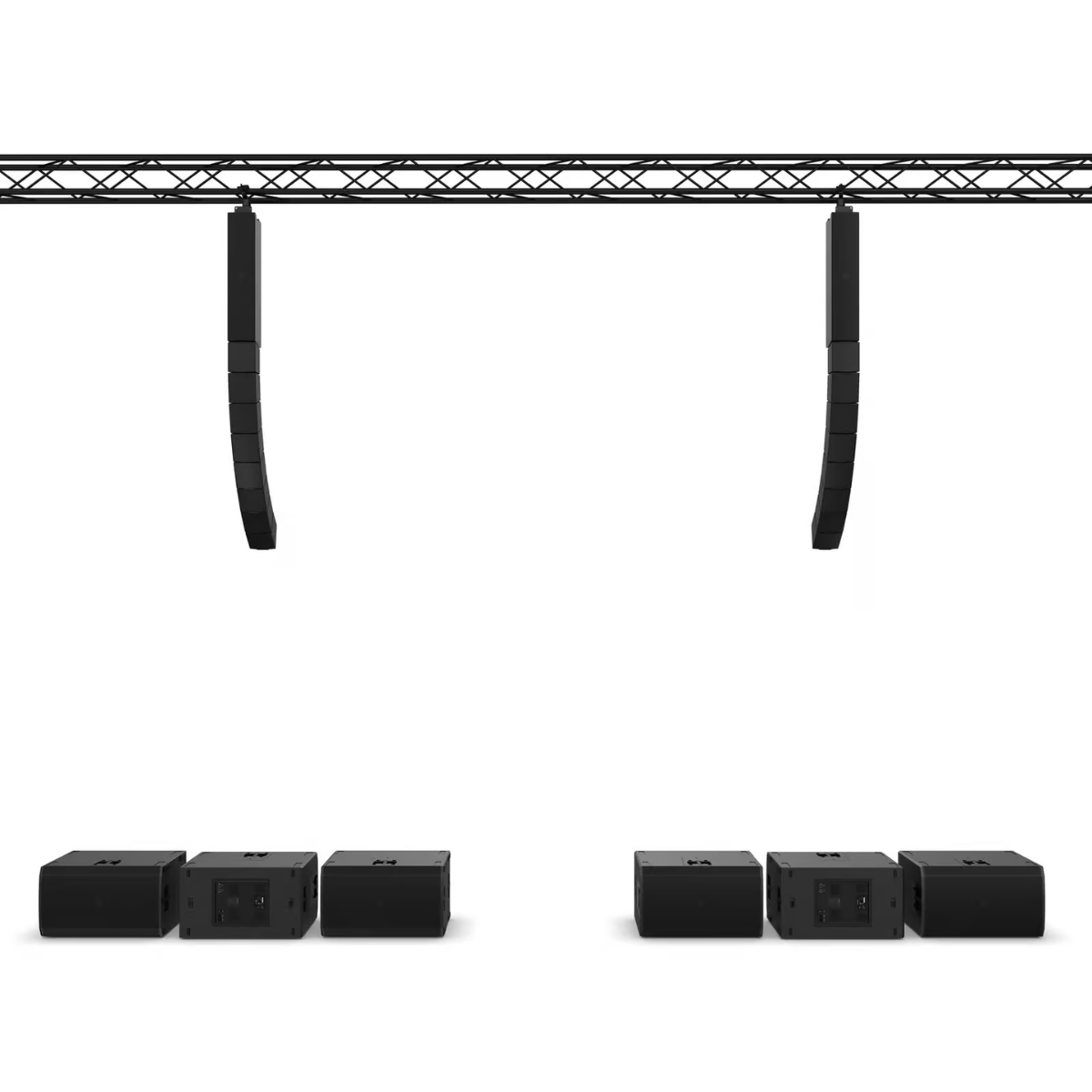

LD Systems MAILA XXL | 20kW Flown Stereo Line Array System | 6x Dual 15in Bandpass Subs + 16 Satellites

LD Systems MAILA XXL  (LD Systems LDMAILAXXL)

High-Power Flown Line Array Stereo PA System

LD Systems MAILA XXL is the most powerful system in the MAILA family, delivering 20kW RMS in a compact, scalable stereo line array format. Designed primarily for flown applications, it combines high-performance bandpass subwoofers, powered column modules with integrated DSP, and cable-free line array satellites to provide maximum throw, consistent dispersion, and flexible deployment for professional live sound and rental production environments.

LD Systems MAILA XXL Competitive Differences

• 20,000W RMS total system output with six 2x15" bandpass subwoofers
• Flown-ready configuration with powered MAILA COL modules and SmartLink+® cable-free satellite connection

LD Systems MAILA XXL Description

The LD Systems MAILA XXL is engineered for professional users who demand the highest levels of output, coverage consistency, and flexibility. Built as a scalable stereo line array system, MAILA XXL can be deployed in flown configurations or reconfigured into a MAILA L-style ground stack when required, making it ideal for rental companies and production providers seeking maximum versatility.

The low-frequency foundation is formed by six MAILA SUB powered bandpass subwoofers, each equipped with dual 15" neodymium drivers and a 2,500W Class D amplifier with SysCore® DSP. With low-frequency extension down to 33 Hz and peak SPL up to 137 dB per sub, the system delivers massive, controlled bass suitable for large halls, clubs, and live event productions.

Each hang is powered by a MAILA COL full-range column module featuring four 6.5" woofers and an integrated 2,500W 4-channel DSP amplifier. The column extends low-mid performance while supplying power and control to the satellites via SmartLink+® rails, eliminating traditional speaker cabling between modules. Eight MAILA SAT satellites mount beneath each column in an elegant die-cast aluminium housing, creating a slim, cable-free flown array.

Every MAILA SAT utilizes Advanced WaveAhead® technology, combining five 1" tweeters placed in front of a 6.5" midrange driver and coupled through SonicGuide® waveguides for reduced interference and consistent dispersion. An integrated passive membrane enhances punch down to 100 Hz. With EasySplay® angle adjustment (0° to 8° per cabinet), vertical coverage can be optimized quickly and precisely, achieving a total vertical dispersion range of 8° to 64°. Wireless configuration is handled via the MAILA Quick Setup App (iPadOS), with LogoLink® antennas discreetly integrated into the LD logos for reliable control up to 30 meters.

MAILA XXL Features

• Total system power: 20,000W RMS
• Compact stereo line array system designed primarily for flown applications
• 6x MAILA SUB powered 2x15" bandpass subwoofers with SysCore® DSP
• 2x MAILA COL powered column modules with integrated 2,500W DSP amplifiers
• 16x MAILA SAT passive array satellites (8 per hang)
• SmartLink+® cable-free connection between column modules and satellites
• EasySplay® adjustable satellite angle (0° – 8°)
• WaveAhead® tweeter alignment with SonicGuide® waveguides
• Integrated passive membrane for extended low-mid punch
• EasyMount+® bracket system included for flown mounting
• App control via MAILA Quick Setup App (iPadOS)
• LogoLink® wireless antenna integration
• Robust aluminium housings for columns and satellites

MAILA XXL Specifications

• Total RMS Output Power: 20,000 W
• Frequency Response (-6 dB): 34 – 20,000 Hz
• Beam Angle: 100° Horizontal / 8° – 64° Vertical
• Maximum Height: 2,730 mm (107.5 in)
• Total System Weight: 782 kg (1,724 lb)
• Subwoofer LF Extension (-6 dB): 33 Hz
• Subwoofer Max SPL Peak: 137 dB
• Column Max SPL Peak (Pink Noise): 130 dB
• Operation Voltage: 100 – 240 V AC / 50 – 60 Hz
• AD/DA Conversion: 24-bit / 48 kHz
• Bluetooth®: 4.2 (COL) / 5.0 (SUB)
• Color: Black

What's In The Box

• 16 x MAILA SAT Satellite Speakers
• 2 x MAILA COL Powered Column Modules
• 6 x MAILA SUB Dual 15" Subwoofers
• 2 x EasyMount+® Brackets
• 2 x MAILA FC2 (Flight cases – not included in North America)
• 1 x MAILA FC3 (Flight case – not included in North America)
• 6 x MAILA SUB CB
• 6 x MAILA SUB PC
• 8 x Power Cables
