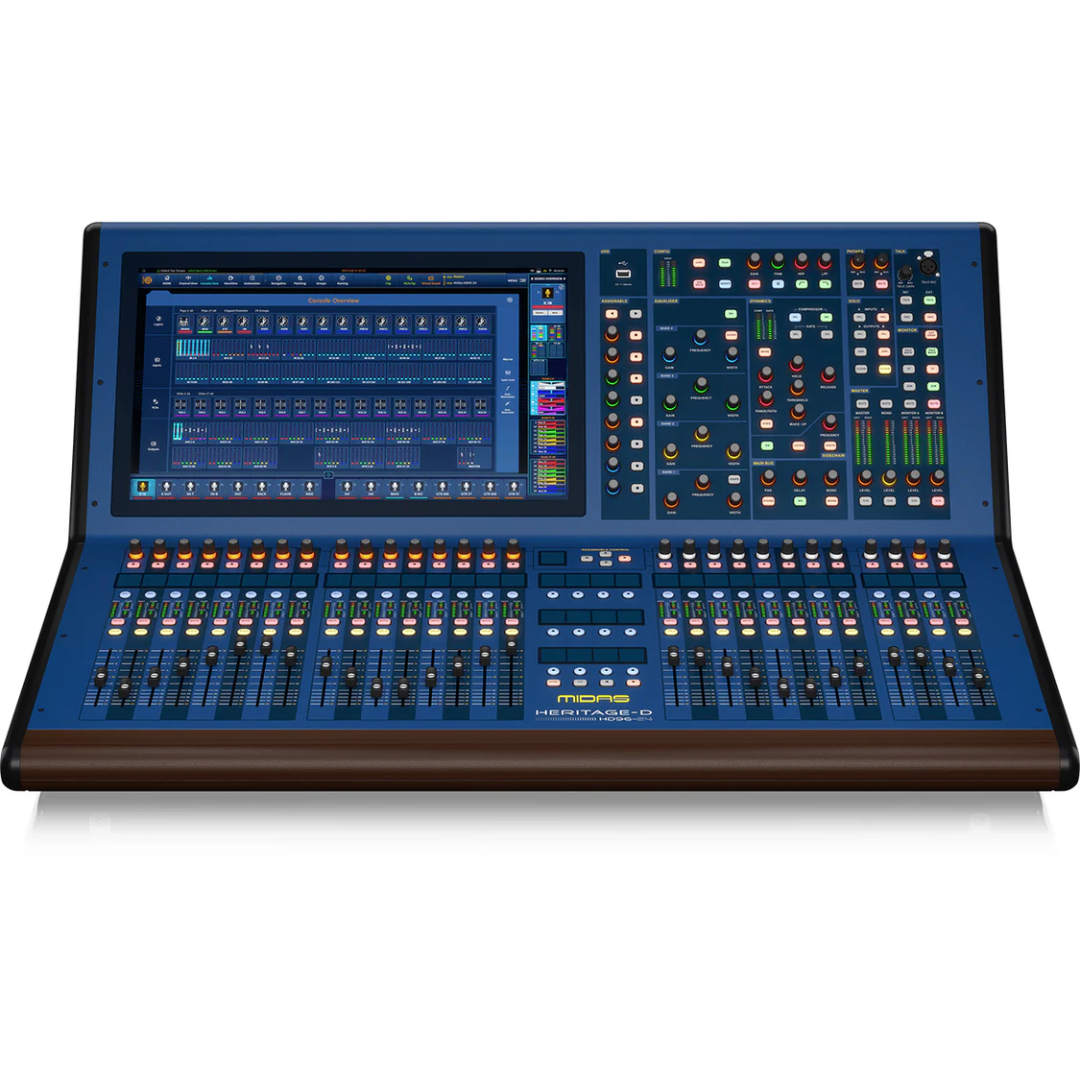

Midas MDS-HD96-24-CC-IP | 144-Channel Digital Mixing Console | 96kHz, 21" Touchscreen, Dual Redundant PSU

Midas MDS-HD96-24-CC-IP  (Midas HD96-24-CC-IP-UL)

Flagship Digital Mixing Console for Live Sound

The Midas HD96-24-CC-IP is the evolution of the legendary Heritage 3000, bringing together cutting-edge digital technology and timeless analog sound quality. With 144 flexible input channels, 123 mix buses, and a 21" multi-touch display, the HD96-24 is designed for professional live engineers seeking the ultimate control surface. It's built for today’s most demanding venues, tours, and broadcast environments.

Midas HD96-24-CC-IP Competitive Differences

• 144 flexi input channels and 123 phase-aligned mix buses at 96kHz
• 21" HD capacitive touchscreen with multi-gesture GUI interface

Midas HD96-24-CC-IP Description

The HD96-24-CC-IP reimagines live mixing with a future-forward interface, AI-assisted channel processing, and unparalleled sonic performance. Building on the legacy of the Heritage 3000 and PRO Series, this console delivers pristine 96kHz, 64-bit floating-point audio processing with minimal latency (1.34ms from input to output). Its 21" 1920x1080 touchscreen offers up to 10 simultaneous touchpoints, allowing intuitive access to routing, EQ, effects, dynamics, and more. Fully assignable touch-sensitive rotary controls and 28 motorized 100mm faders give you tactile command of every function. The HD96-24 supports up to 480x480 I/O via HyperMAC and AES50, and includes dual redundant power supplies, integrated Bluetooth, dual ULTRANET ports, and a dual network bridge with asynchronous sample rate conversion. Whether for festival stages, broadcast rigs, or complex theatrical installations, the HD96-24 is built to adapt and expand—empowering engineers with flexibility, clarity, and confidence.

Model Features

• 144 input and 96 output flexi channels with 96kHz operation
• 123 time-aligned, phase-coherent mix buses
• 21" multi-gesture HD touchscreen (1920x1080 resolution)
• AI-enhanced channel processing and intuitive GUI
• Dual HyperMAC/AES50 networks—up to 480x480 I/O
• Dual ULTRANET ports for 32 digital outputs
• 28 motorized 100mm faders with touch-sensitive rotary controls
• Up to 48 assignable Klark Teknik DN370 1/3 octave graphic EQs
• Up to 24 onboard multi-channel FX engines
• Integrated wireless module and Bluetooth
• Dual redundant auto-switching PSUs

Model Specifications

• Input Channels: 144 flexi inputs
• Output Channels: 96 aux, 24 matrices, stereo + mono bus
• Processing Resolution: 64-bit floating point
• Sampling Rate: 96kHz
• Latency (input to output): 1.34ms
• A/D & D/A Conversion: 24-bit @ 96kHz with 128x oversampling
• Routing Matrix: 622 x 652
• Faders: 28 x 100mm motorized
• Touchscreen: 21" capacitive, 10-point multi-touch
• Assignable Groups: 24 VCAs, 24 POPulation groups
• Talkback: 12 talk groups
• Mute Groups: 12
• External I/O: 8x mic inputs (XLR), 8x XLR balanced outputs
• Networking: Dual HyperMAC/AES50, Dual ULTRANET
• Connectivity: Integrated Bluetooth and Wi-Fi transceiver
• Power Supply: Dual redundant switch-mode, auto-ranging
• Model Number: HD96-24-CC-IP-UL
• EAN: 4033653071123

What's In The Box

• Midas HD96-24-CC-IP digital mixing console
• Power cables (dual PSU configuration)
• User manual
• Quick start guide
