Midas MDS-HD96-24-CC-TP | Heritage-D Console with Touring Flight Case | AI Mixing & Graviton Mk2 Engine

Midas MDS-HD96-24-CC-TP  (Midas HD96-24-CC-TP-UL)

Heritage-D Touring Digital Mixing Console

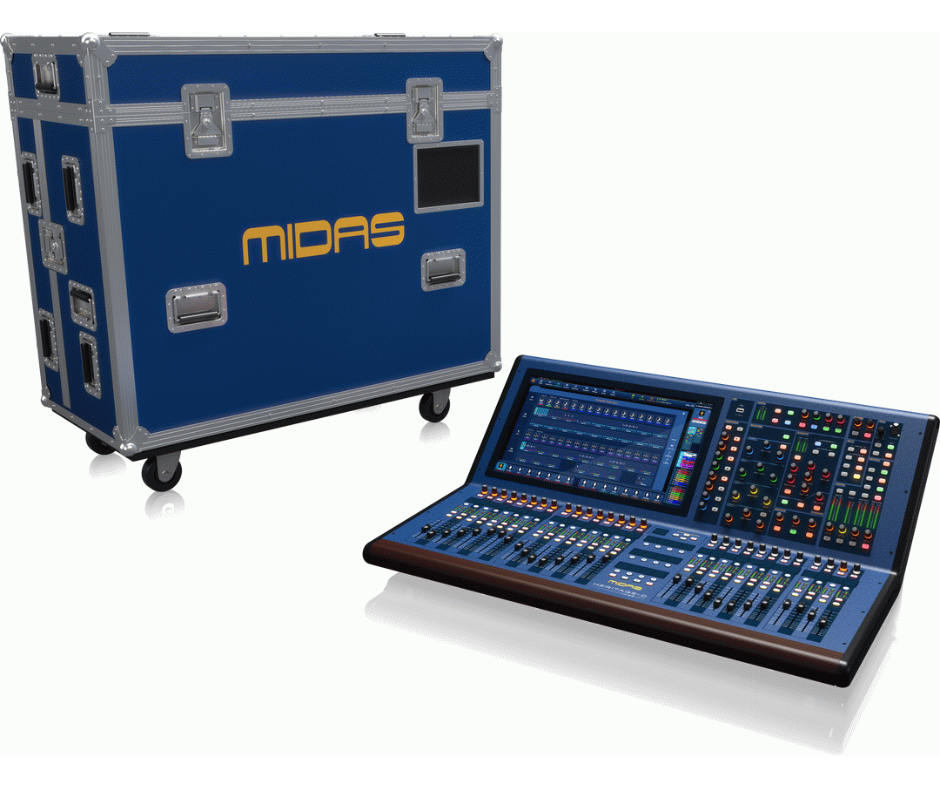

The Midas HD96-24-CC-TP is the touring version of Midas’s flagship Heritage-D digital mixing console. Built into a rugged flight case for transport and protection, this powerful console delivers unmatched audio quality with modern workflow enhancements like Channel AI, touchscreen gesture control, and cloud-based session management via mCloud. Designed for large-scale touring, festivals, and high-end live productions, it brings innovation and legendary Midas sound to the road.

Midas HD96-24-CC-TP Competitive Differences

• Includes heavy-duty flight case for safe transport
• Channel AI for intelligent gain, EQ, compression, and gate suggestions

Midas HD96-24-CC-TP Description

The HD96-24-CC-TP is built on the powerful Graviton Mk2 processing engine, offering pristine 96kHz operation with 64-bit floating-point precision. With support for up to 144 input channels and 123 mix buses, this console is ready for the most demanding applications. The 21” capacitive touchscreen allows multi-touch gestures and features an intuitive layout with widget-style controls for fast and efficient workflow. New Tap-Off Points allow you to send signal from any point in the channel strip, making routing more flexible than ever. The innovative Channel AI system listens to incoming audio and can suggest optimal preamp gain, EQ curves, compression, and gate settings—perfect for speeding up soundchecks and mixing under pressure. Designed for the future, the HD96-24 supports remote wireless control, has integrated Bluetooth and Wi-Fi, and connects to the mCloud platform for cloud-based session storage, device sync, and system updates. Whether you’re on tour or building a high-end rental inventory, this touring pack console is road-ready and fully future-proof.

Model Features

• Graviton Mk2 processing engine with 64-bit floating-point resolution
• Channel AI for automated setup suggestions (Gain, EQ, Compression, Gate)
• 21" full HD capacitive touchscreen with multi-touch support
• Tap-Off Points for flexible routing from any stage of the signal path
• Up to 144 flexi input channels and 123 mix buses
• Built-in Wi-Fi, Bluetooth, and mCloud integration
• Touring-grade flight case included for protection and mobility

Model Specifications

• Touchscreen: 21” HD (1920x1080) with up to 10-point multi-touch
• Max Input Channels: 144
• Mix Buses: 123 (including 96 aux, 24 matrices, stereo + mono buses)
• Processing: 64-bit floating-point at 96kHz
• Signal Routing Matrix: 622 x 652
• Latency: 1.34ms (surface input to output)
• Faders: 28 x 100mm motorized
• Connectivity: AES50, HyperMAC, dual ULTRANET, Bluetooth, Wi-Fi
• Power Supply: Dual redundant auto-switching PSUs
• Height: 114 cm
• Width: 70 cm
• Length: 123.5 cm
• Weight: 151 kg

What's In The Box

• Midas HD96-24-CC-TP digital console
• Heavy-duty flight case (pre-mounted)
• Power cables (dual PSU setup)
• User manual and quick start guide
