Midas MDS-HUB4 PRO | 96kHz Personal Monitor Hub | 16 Analog Outs + PoE for DP48

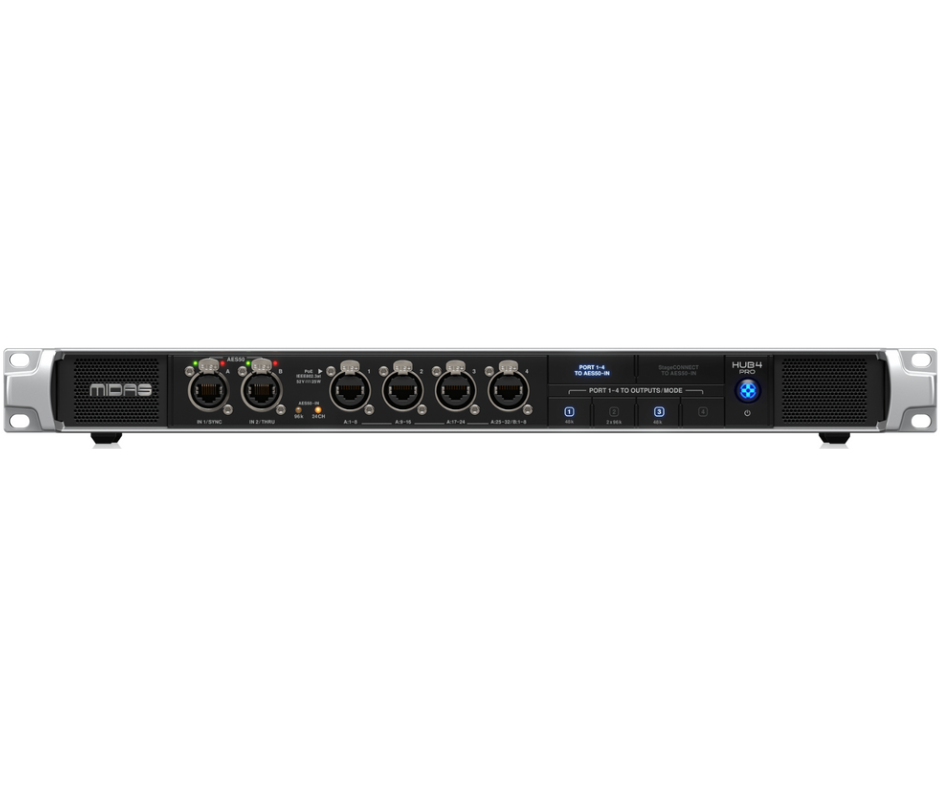

Midas MDS-HUB4 PRO  (Midas HUB4 PRO_US1)

Personal Monitoring System Hub

Midas MDS-HUB4 PRO is a powerful 96kHz personal monitoring hub designed for seamless distribution of audio and control signals in complex stage environments. Built to serve as a central connection point, it offers both analog and digital outputs for various monitoring applications, making it an ideal solution for side racks, in-ear monitor setups, and stagebox integration.

Midas MDS-HUB4 PRO Competitive Differences

• 16 balanced analog outputs for 8 stereo IEM mixes
• PoE for powering 4 DP48 mixers or DL8 stageboxes

Midas MDS-HUB4 PRO Description

The MDS-HUB4 PRO is engineered to streamline personal monitoring with high flexibility and low-latency digital transmission. Designed to pair seamlessly with Midas DP48 personal mixers and DL8 stageboxes, it allows up to four units to be powered directly via PoE through RJ45 connections. Each of its four ports transmits up to two stereo mixes, routed to 16 analog outputs—ideal for IEM transmitter integration. With support for both 48kHz and 96kHz operation, and AES50 networking via industry-standard RJ45 connectors, the HUB4 PRO offers scalable system expansion using shielded CAT5e cables. Front panel controls give users quick access to routing settings and allow configuration of StageConnect and AES50 paths without a computer. Ideal for use with Midas M32 or HD96 consoles, the unit supports remote control, channel labeling, talkback routing, and distribution of mix settings—greatly simplifying personal monitoring in high-demand live settings. Housed in a robust 1U chassis, it’s built to withstand mobile use while providing rock-solid performance, whether for houses of worship, touring acts, or broadcast.

Model Features

• PoE for up to 4 DP48 mixers or DL8 stageboxes
• 16 balanced analog outputs for IEM or console routing
• Support for 96kHz (2x24ch) or 48kHz (48ch) operation
• StageConnect port for 32-channel audio over XLR/DMX
• Front-panel routing buttons for quick configuration

Model Specifications

• Max Output Level: +21.5 dBu
• Analog Outputs: 16 (6.35mm TRS & 3-pin XLRM)
• AES50 Ports: 2 x RJ-45
• StageConnect: 1 x XLRM (3-pin)
• USB: USB 2.0 Type B
• Dimensions: 19 x 1.97 x 11.5 in (482 x 50 x 291 mm)
• Weight: 8.73 lb (3.96 kg)

What's In The Box

• MDS-HUB4 PRO unit
• Power cable
• Quick start guide
