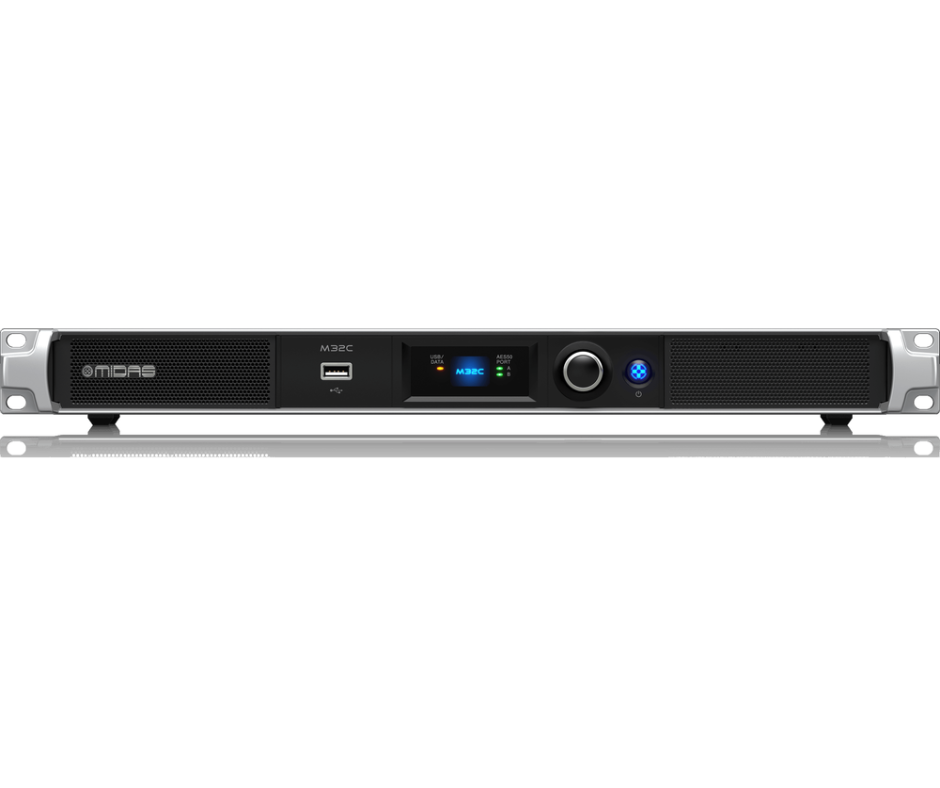

Midas MDS-M32C | 40-Input Digital Mixing Core | 96ch AES50 in Compact 1U Rack Format

Midas MDS-M32C  (Midas M32C_US1)

Digital Mixing Core

The Midas M32C delivers the full power of the M32 mixing engine in a compact 1U rackmount form factor, designed for remote-controlled mixing in touring, broadcast, and fixed installations. With its advanced digital processing, AES50 networking, and seamless integration with Midas stage boxes and control software, the M32C is ideal for systems requiring high I/O counts and flexible control in a space-saving design.

Midas M32C Competitive Differences

• 1U rackmount format with full 40-input, 25-bus M32 architecture
• Dual AES50 ports supporting up to 96 inputs and 48 outputs

Midas M32C Description

The M32C takes the same groundbreaking technology found in the flagship M32 console and puts it into a streamlined, rackmountable format. Engineered for scalability and remote operation, it offers 40 input channels and 25 mix buses with time-aligned, phase-coherent architecture—all accessible via Midas' suite of control software, including M32-EDIT, M32-MIX, and M32-Q. With dual AES50 ports, the M32C can handle large-scale I/O configurations using Midas DL16 or DL32 stage boxes, enabling up to 96 input and 48 output channels across remote locations. Its high-speed 0.8 ms audio engine ensures pristine performance with ultra-low latency, and its open architecture is designed to support future 96 kHz operation. Built for long-term use, the M32C features a rugged aluminum and steel chassis and is optimized for live production, houses of worship, corporate events, and permanent installs. The onboard 100-band Real Time Analyzer provides detailed visual feedback for tuning and system optimization, viewable directly within the M32-EDIT interface. Whether you're running front-of-house, monitors, or broadcast feeds from a centralized rack, the M32C offers the flexibility and sound quality Midas is known for—in a fraction of the space.

Model Features

• 40-input, 25-bus digital mixing architecture
• 1U rackmount chassis for compact installations
• Dual AES50 ports for 96 input / 48 output remote channels
• Compatible with DL16, DL32, and other Midas I/O units
• 100-band RTA with full-screen and overlay modes
• Remote control via M32-EDIT, M32-MIX, and M32-Q software

Model Specifications

• Input Channels: 40 (via AES50)
• Mix Buses: 25 (16 Aux, 6 Matrix, LCR)
• AES50 I/O: Up to 96 inputs and 48 outputs
• Latency: 0.8 ms
• Dimensions: 19 x 11.8 x 2.0 in (48.3 x 30.0 x 5.0 cm)
• Weight: 7.7 lb (3.5 kg)

What's In The Box

• Midas M32C unit
• Power cable
• Quick start guide
