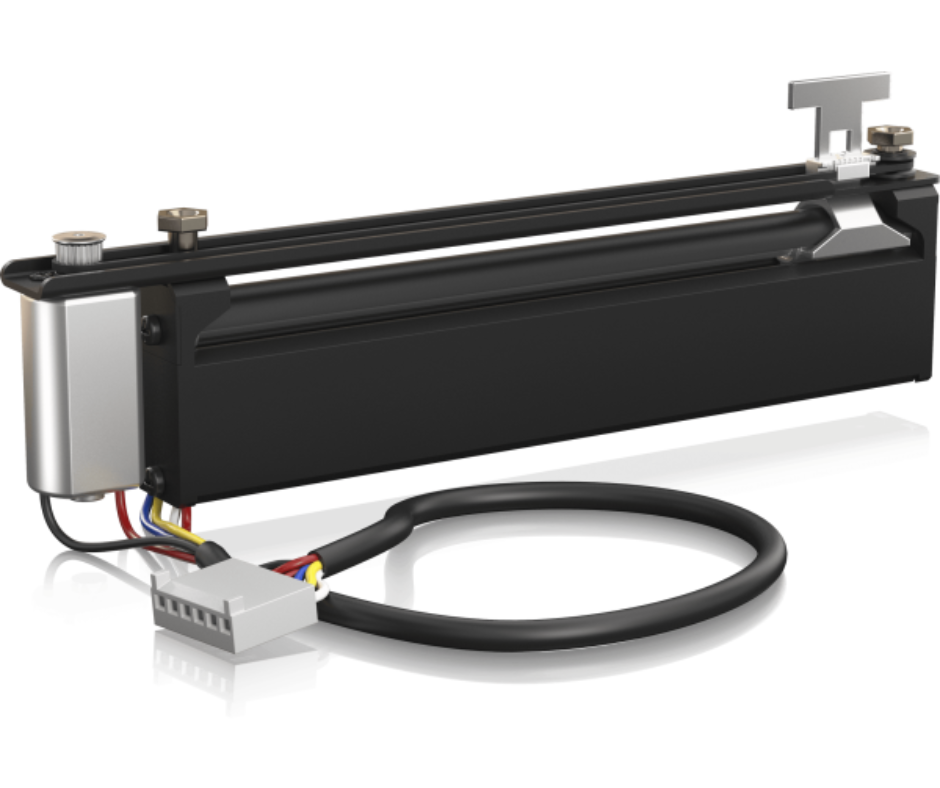

Midas MDSP-PROFADER200MM | Set of 5 100mm Motorised Faders | Touch-Sensitive with 200mm Cable

Midas MDSP-PROFADER200MM  (Midas PRO FADER (200 MM))

Touch-Sensitive Motorised Fader Set

The Midas MDSP-PROFADER200MM is a premium-grade set of five 100mm motorised faders with touch sensing, engineered for high-performance mixing applications. Designed for integration into Midas PRO Series digital consoles, these faders offer unmatched durability, linear response, and servo control accuracy. Each fader includes a 200mm cable for convenient connectivity and installation.

Midas MDSP-PROFADER200MM Competitive Differences

• Rated for up to 1 million cycles — 3x the industry standard
• Integrated touch sensing with conductive T-Bar for intelligent motor control

Midas MDSP-PROFADER200MM Description

Midas MDSP-PROFADER200MM faders are the result of a multi-disciplinary engineering effort that combines mechanical design, electronic optimization, and rigorous material testing. Developed specifically for the demands of digital mixing, these faders offer a smooth, consistent tactile response and precise linearity, ideal for servo-controlled automation. Unlike generic components, these faders are designed by a console manufacturer with a deep understanding of real-world audio workflow. The resistive track is highly linear, ensuring reliable performance across the entire 100mm travel. Semi-precious metals are used in the wiper fingers for enhanced wear resistance, and the touch-sensitive conductive T-Bar allows for software-triggered automation, including auto channel select and motor disengagement while held. With a 10 kΩ linear law, these faders are compatible with most digital mixing systems and can serve as drop-in replacements for standard models such as the Penny+Giles PGFM3200 and Alps K-Fader. The included 200mm cable supports full connection to the motor, touch, and resistive elements. Each unit mounts easily via dual M3 threaded pillars with 120mm mounting centers, making the MDSP-PROFADER200MM both reliable and installation-friendly for service techs and system integrators.

Model Features

• Set of 5 high-endurance 100mm motorised faders
• 10 kΩ linear law track for accurate servo response
• Touch-sensing track with conductive T-Bar
• Designed for Midas PRO Series input/output bays
• Includes 200mm cable for motor, touch, and track connections

Model Specifications

• Fader Travel: 100 mm
• Resistance: 10 kΩ linear
• Mounting: 120 mm center, M3 threaded pillars
• Cable Length: 200 mm
• Cycle Life: Rated for 1 million operations

What's In The Box

• 5x Midas MDSP-PROFADER200MM motorised faders
• Attached 200 mm cables
