NovaStar BB4009
(NovaStar Novastar MX40 Pro)
LED Display Controller

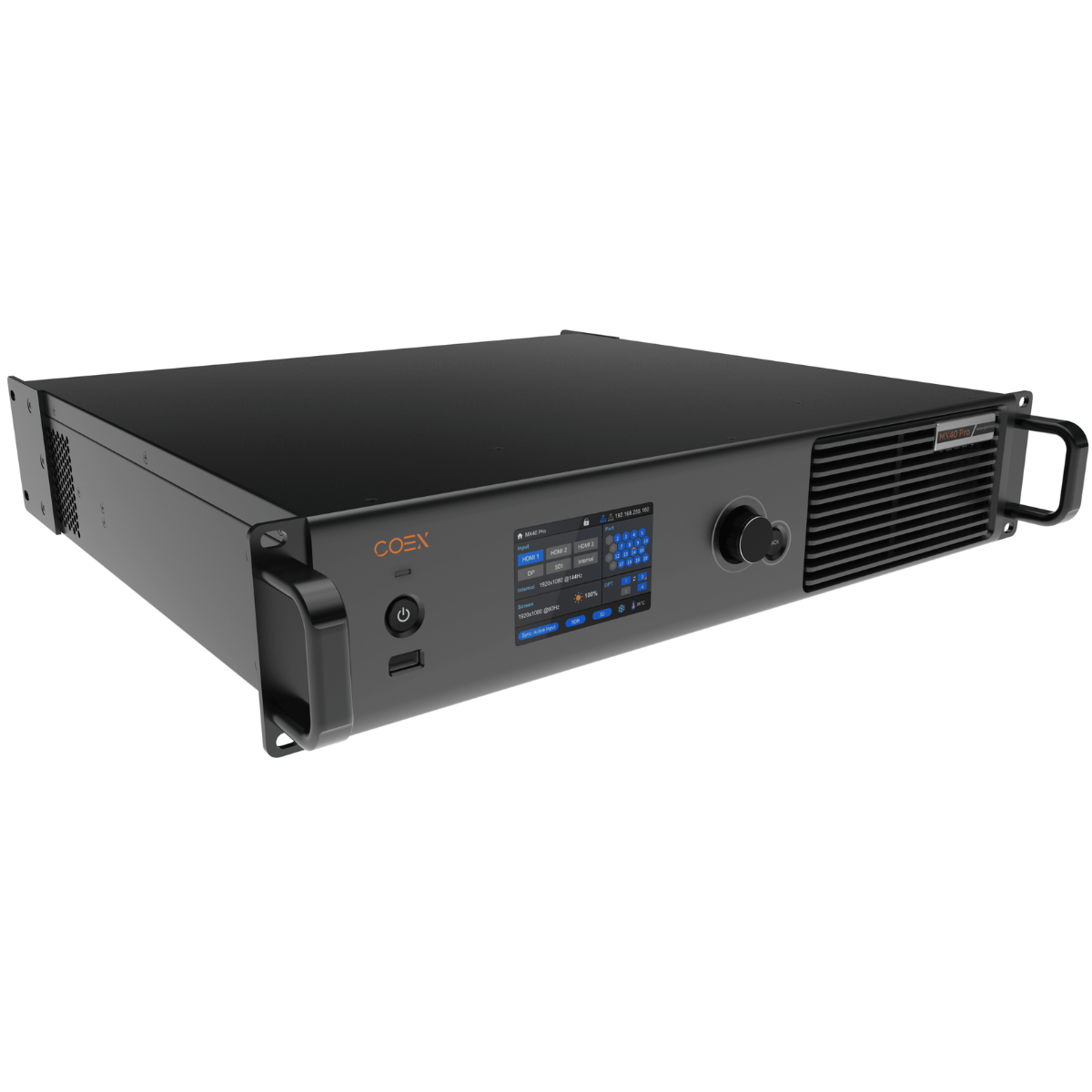

The NovaStar MX40 Pro is a flagship 2U LED display controller that combines high-resolution video processing and LED screen control in one rackmount chassis. Its 9 million-pixel capacity, four independent 4K layers, professional video connections, and extensive Ethernet and optical outputs provide the flexibility required for large-format LED displays and demanding live-production systems.
NovaStar MX40 Pro Competitive Differences
- Supports LED displays with a total loading capacity of up to 9 million pixels
- Provides four independent 4K layers with adjustable Z-order priority
- Includes 20 Gigabit Ethernet outputs and four 10G optical ports
- Optical ports support selectable 20-port and 40-port output modes
- Accepts HDMI 2.0, DisplayPort 1.2, and 12G-SDI video sources
- Supports 8-bit, 10-bit, and 12-bit video input signals
- Genlock input and loop-through support synchronization with professional video systems
- Supports HDR10, HLG, 3D LUT color processing, and advanced image adjustment
NovaStar MX40 Pro Description
The NovaStar MX40 Pro integrates video processing and LED display control into a rugged 2U chassis for touring, rental, broadcast, corporate AV, house-of-worship, and fixed-installation applications. Its 20 Gigabit Ethernet outputs support a combined loading capacity of up to 9 million pixels, while four 10G optical ports provide high-bandwidth connectivity for compatible fiber-based LED systems.
Three HDMI 2.0 inputs, one DisplayPort 1.2 input, and one 12G-SDI input accommodate a wide range of professional media servers, switchers, cameras, and playback devices. Each HDMI input includes a dedicated loop-through connection, and the 12G-SDI input also provides loop-through for distributing video to additional equipment.
Four independent layers support content with resolutions up to 4K and can be arranged using adjustable Z-order priority. Each layer supports custom scaling, pixel-to-pixel display, snap-to-canvas positioning, and fill-screen scaling for flexible LED canvas layouts.
Advanced image tools include HDR10 and HLG support, 14-channel color correction, RGBW color curves, color replacement, 3D LUT processing, and Dynamic Booster image enhancement. Genlock synchronization, low-latency processing, SPDIF digital audio output, and NovaStar VMP software compatibility make the controller suitable for demanding productions where image quality, synchronization, and centralized control are critical.
MX40 Pro Features
- All-in-one LED display controller and video processor
- Loading capacity up to 9 million pixels
- Four independent layers supporting up to 4K resolution
- Adjustable layer priority in Z order
- Custom, pixel-to-pixel, snap-to-canvas, and fill-screen scaling modes
- Three HDMI 2.0 inputs with dedicated loop-through outputs
- One DisplayPort 1.2 input
- One 12G-SDI input with loop-through output
- Twenty Gigabit Ethernet LED outputs
- Four 10G optical ports with selectable output modes
- Synchronous Ethernet and optical output support
- SPDIF digital audio output
- Genlock input with loop-through
- Two Gigabit Ethernet control ports
- AUX RS232 control connection
- Supports 8-bit, 10-bit, and 12-bit video input signals
- HDR10 and HLG support
- 14-channel color correction and RGBW color curves
- Supports 3D LUT files for advanced color processing
- Dynamic Booster image enhancement
- Low-latency processing support
- NovaStar VMP software control
- 3.5-inch front-panel display
- 2U rackmount chassis
MX40 Pro Specifications
- Product Type: LED Display Controller
- Maximum Loading Capacity: 9 million pixels
- Maximum Forced Input Width: 8192 pixels
- Maximum Forced Input Height: 8192 pixels
- Layers: 4 independent layers supporting up to 4K resolution
- HDMI Inputs: 3 HDMI 2.0
- DisplayPort Input: 1 DisplayPort 1.2
- SDI Input: 1 12G-SDI
- Video Loop Outputs: 3 HDMI 2.0 and 1 12G-SDI
- LED Outputs: 20 Gigabit Ethernet ports
- Optical Connections: 4 10G optical ports
- Optical Output Modes: 20-port or 40-port mode
- Audio Output: 1 SPDIF digital audio port
- Control Connections: 2 Gigabit Ethernet ports, Genlock input and loop, and 1 AUX RS232 port
- Video Input Bit Depth: 8-bit, 10-bit, and 12-bit
- Power Input: 100–240V AC, 50/60Hz
- Maximum Power Consumption: 95W
- IP Rating: IP20
- Chassis Height: 2U
- Dimensions: 19 x 3.71 x 18.39 in (482.6 x 94.2 x 467 mm)
- Weight: 16.53 lb (7.5 kg)
- UPC: 618528599366
What's In The Box
- NovaStar MX40 Pro LED Display Controller
- Power cord
- Ethernet cable
- HDMI cable
- DisplayPort cable
- Certificate of Approval
