NovaStar BB4011
(NovaStar VX400 Pro)
LED Display Controller

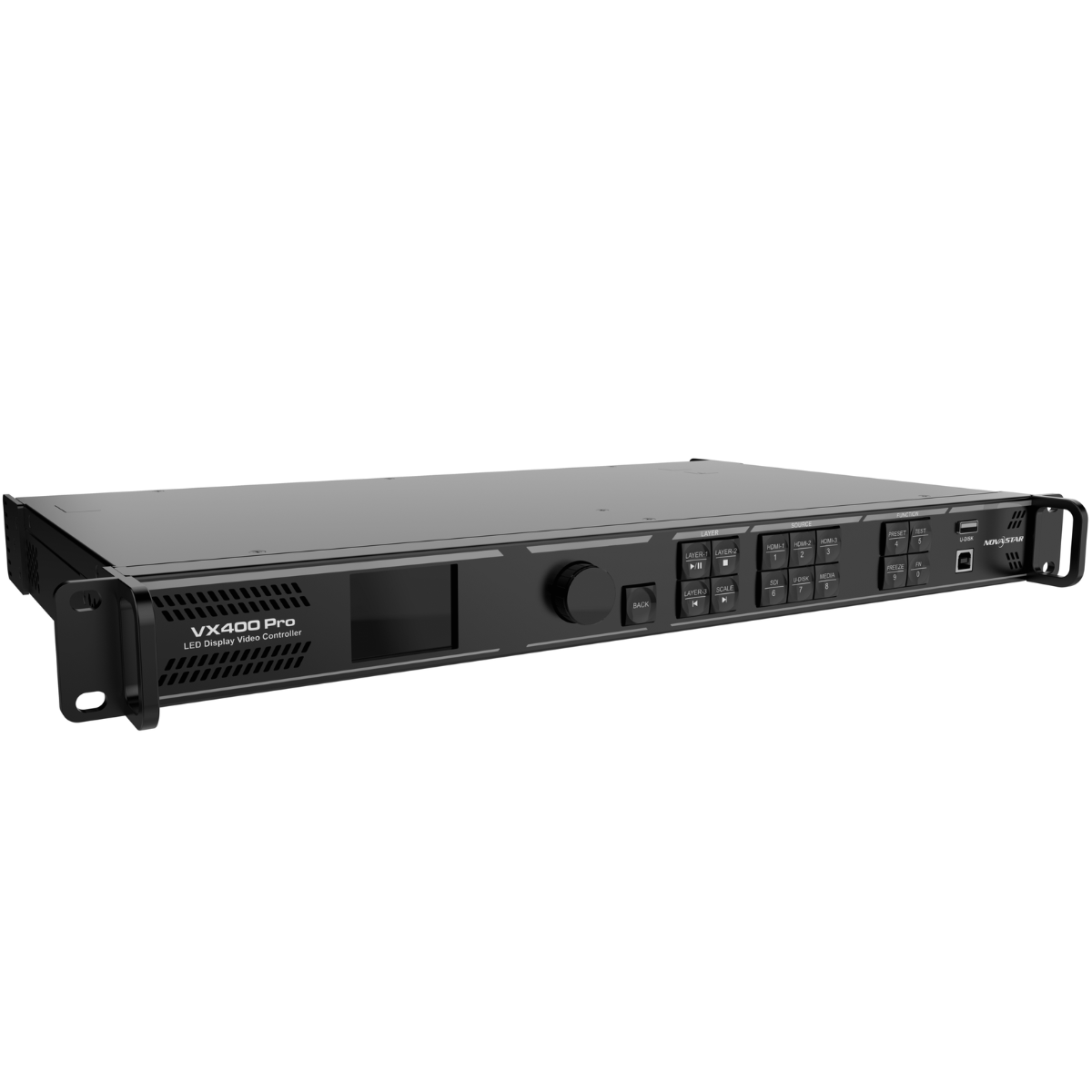

The NovaStar VX400 Pro is an all-in-one LED display controller that combines video processing and LED screen control in a compact 1U chassis. Its 2.6 million-pixel loading capacity, 4K60 input support, flexible layer resources, and Ethernet and optical outputs make it suitable for rental productions, stage-control systems, and fine-pitch LED displays.
NovaStar VX400 Pro Competitive Differences
- Supports LED displays with a total loading capacity of up to 2.6 million pixels
- Provides six 2K x 1K layer resources that can be allocated as 4K x 2K, 4K x 1K, or 2K x 1K layers
- Accepts video resolutions up to 4096 x 2160 at 60Hz through HDMI 2.0
- Includes four Gigabit Ethernet outputs and two 10G optical fiber ports
- Stores up to 256 user-defined presets with one-button preset loading
- USB 3.0 media playback allows compatible images and videos to be played directly from a USB drive
- Supports video controller, fiber converter, and Bypass operating modes
- Low-latency operation can provide zero-frame delay in Bypass mode
NovaStar VX400 Pro Description
The NovaStar VX400 Pro integrates video processing, scaling, source management, and LED display control into an industrial-grade rackmount enclosure. Four Gigabit Ethernet outputs can drive a combined total of up to 2.6 million pixels, with support for output canvases as wide as 10,240 pixels or as tall as 8192 pixels.
Video sources can be connected through HDMI 2.0, dual HDMI 1.3 inputs, 3G-SDI, a self-adaptive 10G optical connection, or USB 3.0 media playback. HDMI 2.0 and 3G-SDI loop-through connections simplify signal distribution, while the dedicated HDMI 1.3 monitoring output provides a fixed 1920 x 1080 display feed.
Six 2K x 1K layer resources provide flexible content arrangement. These resources can be configured as 4K x 2K, 4K x 1K, or 2K x 1K layers, with adjustable size, position, priority, and aspect ratio. Stepless scaling, input cropping, one-button full-screen display, output color adjustment, and pixel-level brightness and chroma calibration help maintain consistent image quality across the LED canvas.
The VX400 Pro is designed for professional rental, live-production, stage-control, and fine-pitch LED applications. Two 10G optical ports provide fiber transmission and backup options, while 256 presets, source backup, Ethernet-port backup, device backup, USB playback, and multiple control methods support reliable operation in complex production environments.
Embedded HDMI audio and independent 3.5 mm audio input and output connections support audio routing with adjustable output volume. The controller can be operated from its front panel or through compatible NovaStar control software and applications.
VX400 Pro Features
- All-in-one LED video processor and display controller
- Maximum loading capacity of 2.6 million pixels
- Maximum output width of 10,240 pixels
- Maximum output height of 8192 pixels
- Six 2K x 1K layer resources
- Supports 4K x 2K, 4K x 1K, and 2K x 1K layer configurations
- Adjustable layer size, position, priority, and aspect ratio
- One HDMI 2.0 input with loop-through output
- Maximum HDMI 2.0 input resolution of 4096 x 2160 at 60Hz
- Two HDMI 1.3 inputs
- One 3G-SDI input with loop-through output
- One USB 3.0 port for compatible image and video playback
- Four Gigabit Ethernet LED outputs
- Two 10G optical fiber ports
- Self-adaptive OPT 1 connection for video input or LED output
- OPT 2 supports output copying, backup, or optical loop-through
- Dedicated HDMI 1.3 monitoring output
- Supports up to 256 user-defined presets
- Video controller, fiber converter, and Bypass operating modes
- Stepless output scaling and free input cropping
- Full-screen, pixel-to-pixel, and custom scaling modes
- Low-latency processing with zero-frame delay available in Bypass mode
- Input-source, Ethernet-port, optical, receiving-card, and device backup options
- Text and image OSD support
- 3D display support with compatible optional equipment
- Pixel-level brightness and chroma calibration support
- Independent 3.5 mm audio input and output
- Embedded HDMI audio support
- Front-panel, Ethernet, USB, RS232, and compatible software control
- Light-sensor connection for automatic screen brightness adjustment
- Industrial-grade 1U rackmount enclosure
VX400 Pro Specifications
- Product Type: All-in-One LED Display Controller
- Maximum Loading Capacity: 2.6 million pixels
- Maximum Output Width: 10,240 pixels
- Maximum Output Height: 8192 pixels
- Layer Resources: 6 x 2K x 1K
- Supported Layer Sizes: 4K x 2K, 4K x 1K, and 2K x 1K
- HDMI 2.0 Input: 1 with loop-through output
- HDMI 1.3 Inputs: 2
- 3G-SDI Input: 1 with loop-through output
- USB Media Input: 1 USB 3.0
- LED Outputs: 4 Gigabit Ethernet ports
- Optical Connections: 2 10G optical fiber ports
- Monitoring Output: 1 HDMI 1.3 at 1920 x 1080 and 60Hz
- Audio Connections: 1 3.5 mm input and 1 3.5 mm output
- Control Connections: 2 Ethernet ports, 1 USB 2.0 port, 1 RS232 connection, and 1 light-sensor connection
- Presets: Up to 256 user-defined presets
- Power Input: 100–240V AC, 50/60Hz
- Rated Power Consumption: 42W
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Chassis Height: 1U
- Dimensions: 19 x 11.89 x 1.97 in (482.6 x 302.2 x 50.1 mm)
- Weight: 8.38 lb (3.8 kg)
- UPC: 618528599472
What's In The Box
- NovaStar VX400 Pro LED Display Controller
- Power cord
- Ethernet cable
- HDMI cable
- USB cable
- Phoenix connector
- Two silicone dustproof plugs
- Quick start guide
- Safety manual
- Certificate of approval
