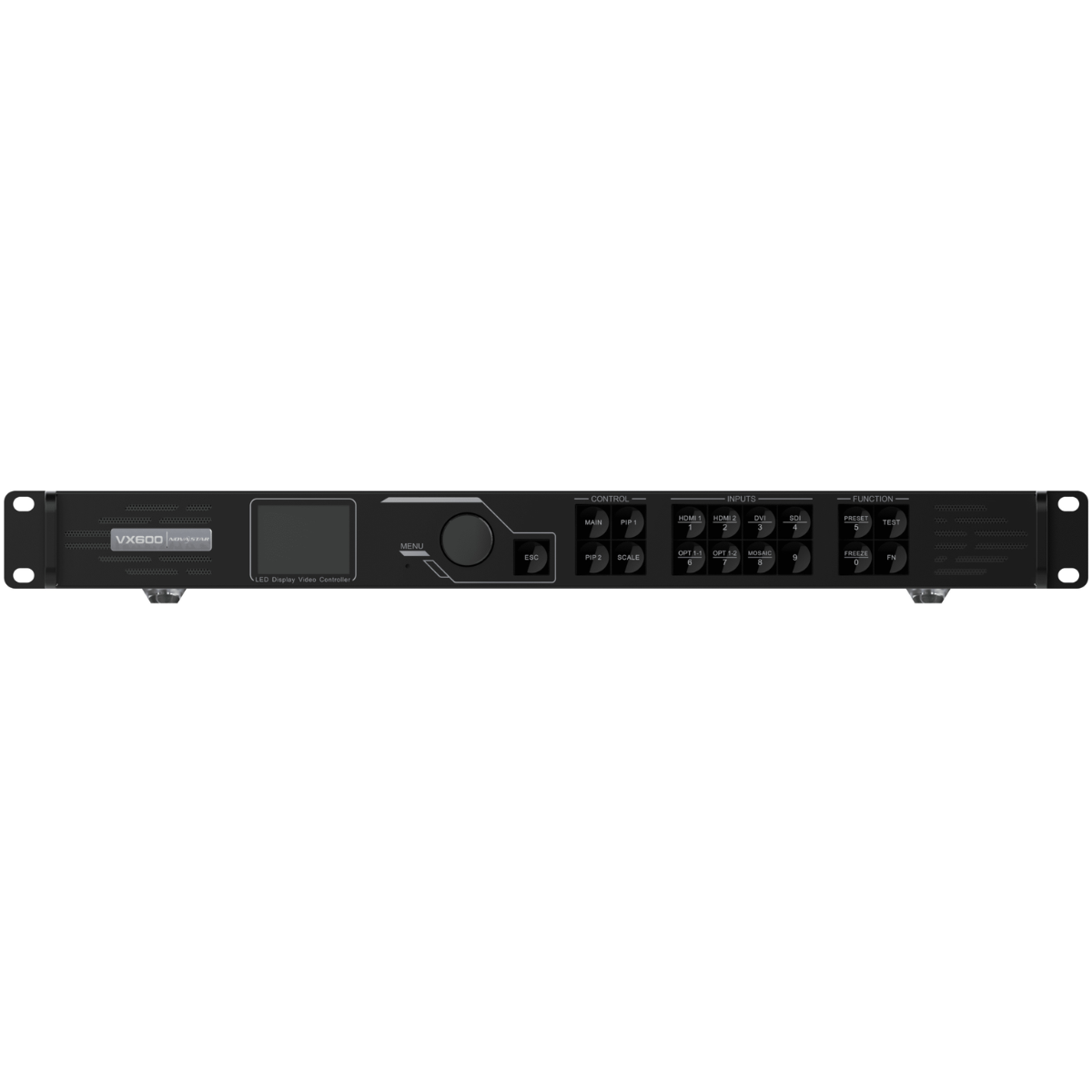

ADJ VX 600
(NovaStar VX-600)
LED Video Processor and Display Controller
The NovaStar VX600 combines LED video processing and display control in a single 1U rackmount unit. It can drive up to 3.9 million pixels and supports ultra-wide or ultra-tall LED canvases, making it useful for stage productions, rental systems, live events, and fine-pitch LED installations.
NovaStar VX600 Competitive Differences
- Drives up to 3.9 million pixels from a single controller
- Supports output widths up to 10,240 pixels and heights up to 8192 pixels
- Provides six Gigabit Ethernet outputs and two optical fiber ports
- Offers three adjustable video layers for flexible source positioning
- Supports video controller, fiber converter, and Bypass operating modes
- Stores up to 10 user-defined presets for fast setup changes
- Includes Genlock input and loop-through for synchronized video systems
NovaStar VX600 Description
The NovaStar VX600 is designed for professional LED display systems that require video processing, signal distribution, and screen control from one compact chassis. Its six Gigabit Ethernet outputs provide a combined loading capacity of up to 3.9 million pixels, with support for unusually wide or tall LED screen configurations.
The processor accepts 3G-SDI, HDMI 1.3, DVI, and compatible optical video sources. HDMI, DVI, and 3G-SDI loop-through connections simplify source distribution, while a separate HDMI 1.3 output can be used for monitoring or video output.
Three video layers can be resized, repositioned, and reordered to create flexible screen layouts. Stepless output scaling, input cropping, one-button full-screen scaling, low-latency operation, and pixel-level brightness and chroma calibration help optimize content for demanding LED applications.
The VX600 supports front-panel operation as well as control through compatible NovaStar software. Ten presets, Ethernet-port backup, input-source backup, device backup, Genlock synchronization, and optical transmission make it well suited for touring productions, rental companies, stage systems, and permanent LED installations.
VX600 Features
- All-in-one LED video processor and display controller
- Maximum loading capacity of 3.9 million pixels
- Maximum output width of 10,240 pixels
- Maximum output height of 8192 pixels
- Three adjustable video layers
- Adjustable layer size, position, and priority
- Two HDMI 1.3 inputs
- One DVI input with loop-through
- One 3G-SDI input with loop-through
- One self-adaptive optical port for compatible input or output operation
- Six Gigabit Ethernet LED outputs
- Two optical fiber ports
- One HDMI 1.3 monitoring or video output
- Supports video controller, fiber converter, and Bypass modes
- Stepless output scaling and free input cropping
- One-button full-screen scaling
- Low-latency processing support
- Internal source or external Genlock synchronization
- Up to 10 user-defined presets
- Input-source, Ethernet-port, and device backup options
- Pixel-level brightness and chroma calibration support
- Front-panel, Ethernet, and USB control options
- 1U rackmount chassis
VX600 Specifications
- Product Type: All-in-One LED Video Processor and Display Controller
- Maximum Loading Capacity: 3.9 million pixels
- Maximum Output Width: 10,240 pixels
- Maximum Output Height: 8192 pixels
- Layers: 3
- Video Inputs: 1 3G-SDI, 2 HDMI 1.3, 1 DVI, and 1 self-adaptive OPT 1
- Video Loop Outputs: 1 HDMI 1.3, 1 DVI, and 1 3G-SDI
- Monitoring or Video Output: 1 HDMI 1.3
- LED Outputs: 6 Gigabit Ethernet ports
- Optical Connections: 2 OPT ports
- Control Connections: 1 Ethernet port and 2 USB 2.0 ports
- Synchronization: Genlock input and loop-through
- Presets: 10 user-defined presets
- Power Input: 100–240V AC, 1.5A, 50/60Hz
- Rated Power Consumption: 35W
- Chassis Height: 1U
- Dimensions: 19.04 x 13.83 x 1.97 in (483.6 x 351.2 x 50.1 mm)
- Weight: 8.82 lb (4 kg)
- UPC: 618528598628
What's In The Box
- NovaStar VX600 LED Video Processor
- Power cord
- HDMI-to-DVI cable
- USB cable
- Ethernet cable
- HDMI cable
- Quick start guide
- Certificate of approval
