Obsidian FS16 | 12 Gigabit + 4 Fiber Ports | 180W PoE+ Network Switch

Obsidian NFS116  (Obsidian FS16)

PoE+ Entertainment Network Switch

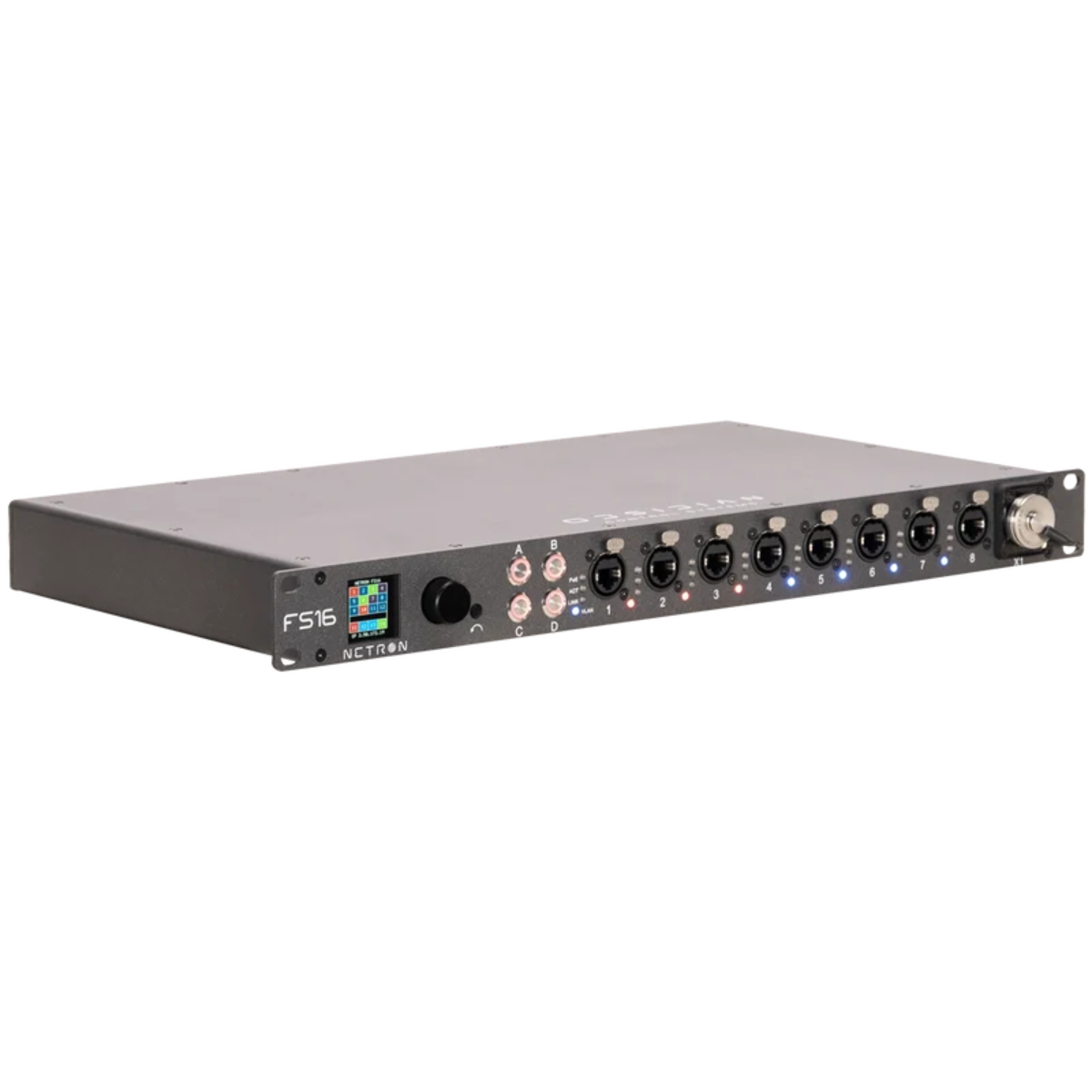

The Obsidian NETRON FS16 is a full-width 1U rackmount network switch designed for high-data-volume entertainment, lighting, and production networks. With 12 Gigabit locking RJ45 ports, four fiber connections, PoE+ support, and 48Gbps total switching capacity, it provides a centralized solution for distributing network data and power to NETRON nodes and other compatible network devices.

Obsidian NETRON FS16 Competitive Differences

• 12 locking Gigabit RJ45 ports plus four fiber ports in a compact 1U rackmount chassis
• 180W total PoE power budget with PoE and PoE+ support up to 30W per port
• One 10Gbps multimode fiber connection and three 1.25Gbps multimode fiber connections
• Four dedicated front-panel Network Selector and preset recall buttons for instant routing changes
• 48Gbps total switching capacity optimized for data-intensive entertainment networks
• Supports Art-Net, sACN, Dante, ONYX X-Net, MA-Net, HogNet, ETC Net3, and additional network protocols
• Integrated VLAN, IGMP, DHCP, and Dante-compliant QoS tools for advanced network management

Obsidian NETRON FS16 Description

The Obsidian NETRON FS16 is engineered for live production, touring, broadcast, and permanent installation environments where reliable high-speed network distribution is essential. Its 12 locking Gigabit Ethernet connections provide robust copper networking, while four preconfigured fiber ports extend connectivity over longer distances and support high-bandwidth backbone applications.

The fiber configuration includes one 10Gbps multimode 850nm connection and three 1.25Gbps multimode 850nm connections, each specified for distances up to 300 meters. This combination makes the FS16 useful for linking front-of-house positions, stages, equipment racks, and other network locations in larger entertainment systems.

PoE and PoE+ support allow compatible devices to receive network data and power through a single Ethernet cable. The FS16 provides up to 30W per port with a total PoE power budget of 180W, making it especially useful for powering NETRON nodes and other PoE-compatible network hardware.

Four dedicated Network Selector and preset recall buttons on the front panel provide fast access to stored routing and configuration setups. This allows operators to rapidly switch between main and backup consoles, different front-of-house systems, or other predefined network configurations. Presets can also be recalled through an optional remote button station or the internal web interface.

A full-color OLED display and rotary encoder provide direct configuration from the front panel, while remote management is available through the internal webpage and NETRON Central Utility. The convection-cooled powder-coated aluminum chassis operates without cooling fans and fits into a standard 1U rack space for professional touring and installation applications.

FS16 Features

• Full-width 1U rackmount entertainment network switch
• 12 locking Gigabit RJ45 Ethernet ports
• Four D-size swappable fiber ports with SEETRONIC duplex fiber connectors
• One 10Gbps multimode 850nm fiber connection
• Three 1.25Gbps multimode 850nm fiber connections
• Fiber transmission distance up to 300 meters
• PoE and PoE+ support
• Maximum 30W PoE+ output per compatible port
• 180W total PoE power budget
• 48Gbps total switching capacity
• Art-Net and sACN support
• Supports ONYX X-Net, MANet2, MA-Net3, HogNet, and ETC Net3
• Dante network support
• Broadcast, unicast, and multicast support
• IGMP Querier and IGMP Snooping
• Six VLAN groups with trunking and color coding
• DHCP server available per VLAN
• Dante-compliant QoS preset
• Factory and user presets for plug-and-play configurations
• Four Network Selector and preset recall buttons
• RJ45 remote port for optional external button station
• Full-color OLED display
• Rotary encoder with push-to-select and exit button
• Per-port LED feedback for activity, PoE, and VLAN status
• Remote configuration through integrated web interface
• Compatible with NETRON Central Utility
• Dedicated PoE power switch
• IP65 locking power input and thru connections
• Convection-cooled fanless design
• Powder-coated aluminum housing

FS16 Specifications

• Mounting: 1U Rackmount
• Gigabit Ethernet Ports: 12 Locking RJ45
• Front Ethernet Ports: 8 Locking RJ45
• Rear Ethernet Ports: 4 Locking RJ45
• Fiber Ports: 4 SEETRONIC SO2DF, LC and DUO Compatible
• Fiber Configuration: 1 x 10Gbps MMF 850nm, 3 x 1.25Gbps MMF 850nm
• Maximum Fiber Distance: 300 m
• Total Switching Capacity: 48Gbps
• PoE Standards: IEEE 802.3af / 802.3at
• PoE Output: Up to 30W Per Port
• Total PoE Power Budget: 180W
• Supported Protocols: sACN, Art-Net, ONYX X-Net, MANet2, MA-Net3, HogNet, ETC Net3, Dante
• Network Modes: Broadcast, Unicast, Multicast
• VLAN: 6 Groups with Trunking and Color Coding
• Power Input: 100–240V Nominal, 50/60Hz
• Dimensions: 19 x 10.33 x 1.4 in (482.5 x 262.3 x 44 mm)
• Weight: 7.05 lb (4.2 kg)
• IP Rating: IP20
• Approvals: CE, cETLus, FCC, UKCA
• US SKU: NFS116
• EU SKU: 1330000017
• UPC: 810008266526

What's In The Box

• Obsidian NETRON FS16 Network Switch
• 5 ft (1.5 m) Locking IP65 Power Cable
