Odyssey OSPJC106PM | 6ft Powercon & DMX Combo Jumper Cable | Power + DMX Signal Link

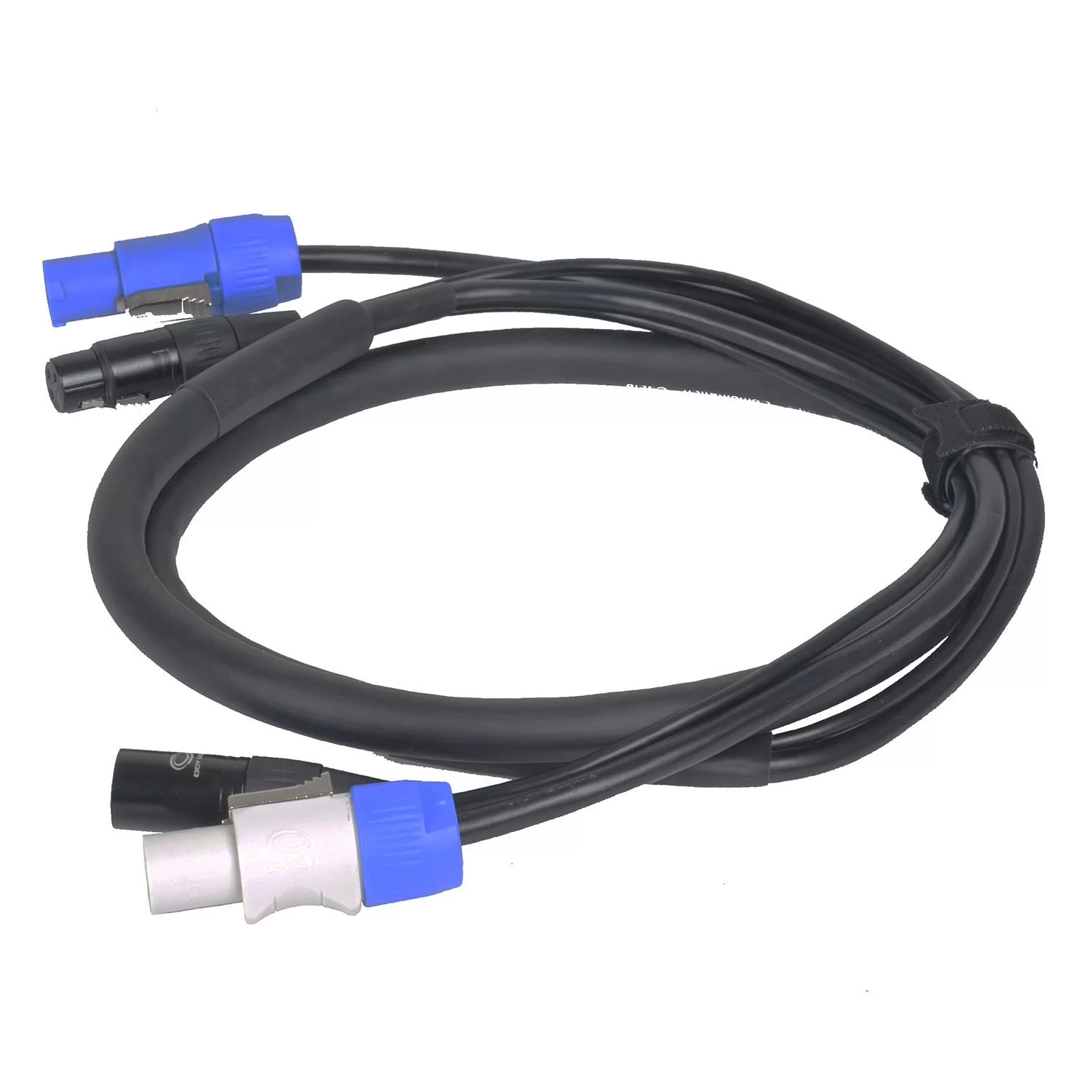

Odyssey 6ft PowerCon and DMX Combo Cable  (Odyssey PowerCon and XLR Combo Cable 6 foot)

Power + DMX Jumper Cable

Odyssey OSPJC106PM is a dual-purpose jumper cable that delivers both AC power and DMX signal through a single run. Ideal for streamlining stage lighting setups, it eliminates the need for separate cables by combining Powercon and XLR connections into one rugged solution.

Odyssey OSPJC106PM Competitive Differences

• Dual-function cable for power and DMX signal
• Durable 15mm outer diameter for demanding environments

Odyssey OSPJC106PM Description

Designed for professional lighting systems, the Odyssey OSPJC106PM helps reduce cable clutter by combining a 3 x 1.5SQmm power conductor with a shielded 2-conductor XLR DMX signal line. This 6-foot jumper cable is perfect for short link runs between fixtures, especially in truss setups or tightly spaced installations. The power line uses Powercon male to male connectors, while the DMX line features 3-pin XLR male to female ends—making it fully compatible with industry-standard stage lighting equipment. With its 15mm outer jacket and CCA conductors, it provides a balance between flexibility, signal integrity, and durability. Whether used for mobile DJ setups or permanent stage installations, the OSPJC106PM is an efficient choice for those seeking fewer cables without sacrificing performance.

Model Features

• Combo cable for AC power and DMX control signal
• Powercon male to male connectors
• 3-pin XLR male to female DMX connectors
• Durable CCA construction with AL foil shielding
• Flexible 6-foot length for close fixture linking

Model Specifications

• Cable Length: 6 ft
• Cable Type: Jumper Powercon and DMX Combo
• Outer Diameter: 15 mm
• Power Conductor: 3 x 1.5SQmm
• DMX Conductor: 25 GA (0.12 x 16) x 2 with AL foil + 0.12 x 48 drain
• Cable Gauge: 22 GA
• Connector Type: Powercon male–male & 3-pin XLR male–female
• UPC: 807822049015

What's In The Box

• 6 ft Powercon + XLR combo cable
