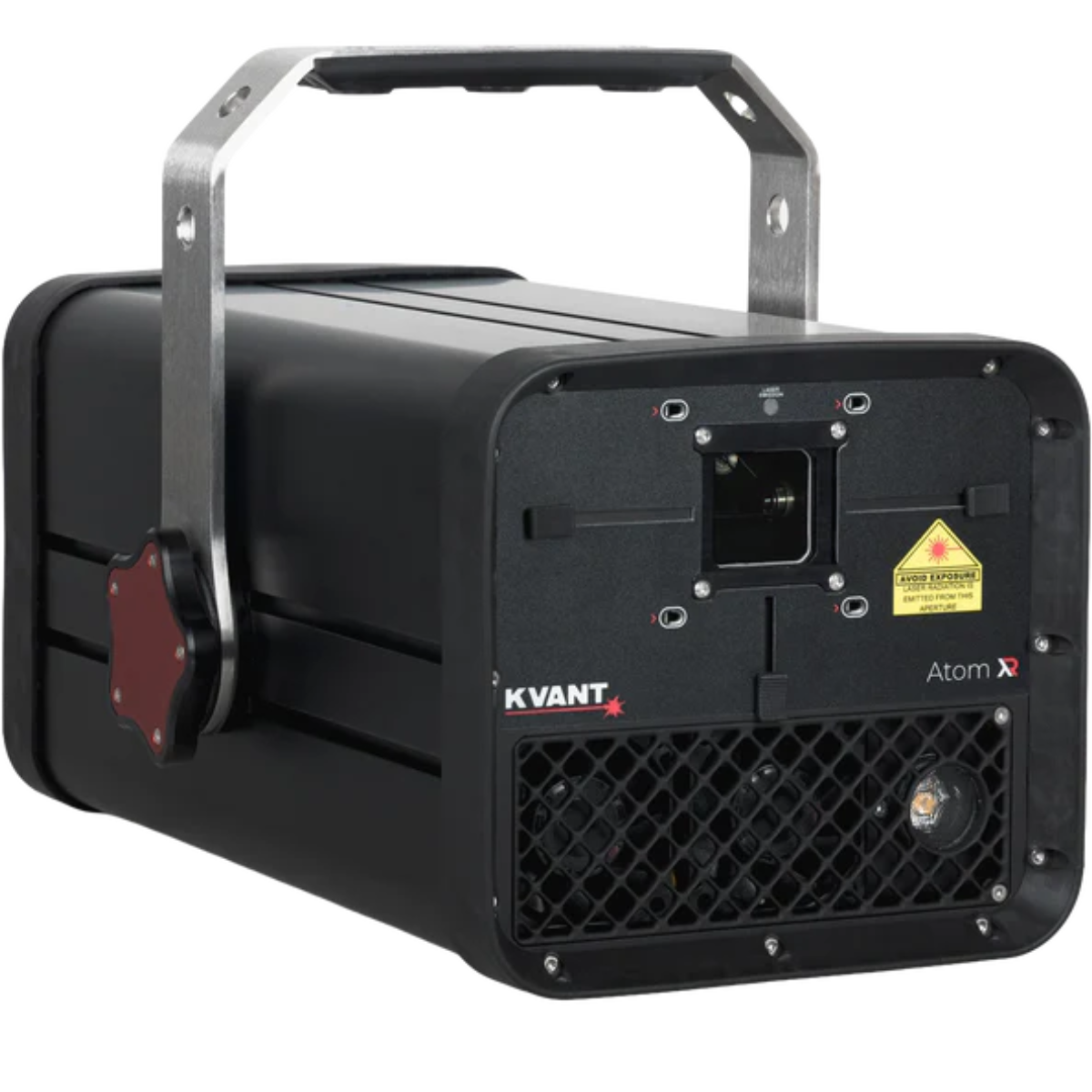

Pangolin Atom XR 30
(Pangolin Atom-XR-30)
RGB Laser Projector
Pangolin Atom XR 30 is a 30W full-color RGB laser projector designed for professional outdoor laser displays, including atmospheric effects, abstract patterns, text, and animations. Built with IP65-rated protection, integrated FB4 control, precise Juno scanners, and advanced telemetry, it gives laser show designers and production teams a compact, high-output projector with deep system control.
Pangolin Atom XR 30 Competitive Differences
- 30W RGB laser system with installed 7W red, 10W green, and 13W blue laser modules
- IP65-rated full-color laser projector designed for outdoor laser display applications
- Integrated FB4-SK control interface supports Ethernet, ArtNet, DMX, PC control, lighting console control, and autoplay
- Juno 5 scanners provide 30 kpps scanning at 8 degrees with up to 40-degree maximum scanning angle on both axes
- Built-in multilevel telemetry provides online access to device data including status, temperature, usage, tilt, and location information
Pangolin Atom XR 30 Description
The Pangolin Atom XR 30 is built for production companies, touring laser operators, venues, festivals, and event professionals who need a compact outdoor-ready laser projector with high output and reliable control. Its RGB semiconductor laser diode source delivers full-color laser effects for atmospheric beam shows, abstract visuals, text projection, and animation work.
Control is handled through the built-in FB4-SK interface, allowing the Atom XR 30 to operate through Ethernet, ArtNet, DMX, PC software, lighting consoles, or autoplay workflows. Pangolin QuickShow laser control and creation software is available as a free download, giving users a practical software path for programming and playback.
The projector includes Juno 5 scanners rated at 30 kpps at 8 degrees, with a maximum scanning angle of 40 degrees on both axes. Its optical design provides a 10 x 7 mm beam size with maximum 1.05 mrad full-angle beam divergence, supporting clean and controlled projection for professional laser display use.
For setup and installation, the Atom XR 30 includes a 360-degree swivel-sliding mounting bracket, retractable safety rope, aiming piece with spirit level, aperture masking plates, and a device stage locator. The built-in telemetry system gives operators access to key device data such as serial number, location, on/off status, subsystem temperatures, usage times, and tilt.
Safety is a major part of the Atom XR 30 design, with keyed interlock, emission delay, magnetic interlock, scan-fail safety, a fast electromechanical shutter, adjustable aperture masking, and an emergency stop system with keyed remote and manual restart button. It is designed to comply with EN 60825-1:2014, EN 60825-2, FDA regulations, and TUV Laser Safety requirements.
Atom XR 30 Features
- 30W full-color RGB laser projector
- Semiconductor laser diode source
- IP65-rated design for outdoor laser display applications
- Suitable for atmospheric effects, abstract visuals, text, and animations
- Integrated FB4-SK control interface
- Supports Ethernet, ArtNet, DMX, PC, lighting console, and autoplay control
- Juno 5 X-Y scanners
- 30 kpps scanning at 8 degrees
- Maximum 40-degree scanning angle on both axes
- Built-in multilevel telemetry sensors
- 360-degree swivel-sliding mounting bracket
- DMX-controlled LED blinder and device stage identifier
- 5W COB LED stage identifier with 4000K color temperature and 920 lm output
- Retractable safety rope
- Aiming piece with spirit level
- Scanning system overload protection
- Built-in settings for color power adjustment, X and Y axis invert, X and Y size, and X and Y position
- Keyed interlock, emission delay, magnetic interlock, and scan-fail safety
- Fast electromechanical shutter with reaction time under 20 ms
- Adjustable aperture masking plate
- Emergency STOP system with keyed remote and manual RESTART button
Atom XR 30 Specifications
- Product Type: Full-color RGB laser projector
- Laser Source: Semiconductor laser diode
- IP Rating: IP65
- Suitability: Outdoor laser displays, atmospheric effects, abstract visuals, text, and animations
- System Control: FB4-SK
- Control Protocols: Ethernet, ArtNet, DMX, PC, lighting console, autoplay
- Compliance: EN 60825-2
- Laser Safety Compliance: EN 60825-1:2014, FDA regulations, TUV Laser Safety
- Installed Red Module: 7W
- Installed Green Module: 10W
- Installed Blue Module: 13W
- Total Installed Module Power: 30W
- Wavelengths: 638 nm red, 525 nm green, 455 nm blue, +/- 5 nm
- Beam Size: 10 x 7 mm
- Beam Divergence: Maximum 1.05 mrad, full angle
- Analog Modulation: 100 kHz
- X-Y Scanners: Juno 5
- Scanner Speed: 30 kpps at 8 degrees
- Maximum Scanning Angle: 40 degrees on both axes
- Power Requirements: 100-240V, 50-60 Hz
- Power Input: Neutrik powerCON TRUE1
- Maximum Power Consumption: 1000 VA
- Operating Temperature: 10-40 degrees C
- Dimensions: 8.2 x 7.6 x 16.1 in (209 x 194 x 408 mm)
- Weight: 30.9 lb (14 kg)
What's In The Box
- Pangolin Atom XR 30 RGB laser projector
- Heavy-duty flight case
- IP65 1.5 m AC power cable
- IP65 25 m Ethernet RJ45 signal cable
- E-STOP remote with IP65 25 m 3-pin XLR cable
- Set of 4 safety keys
- Interlock bypass dongle, supplied for the USA only
- USB memory stick with user manual
- QC certificate
