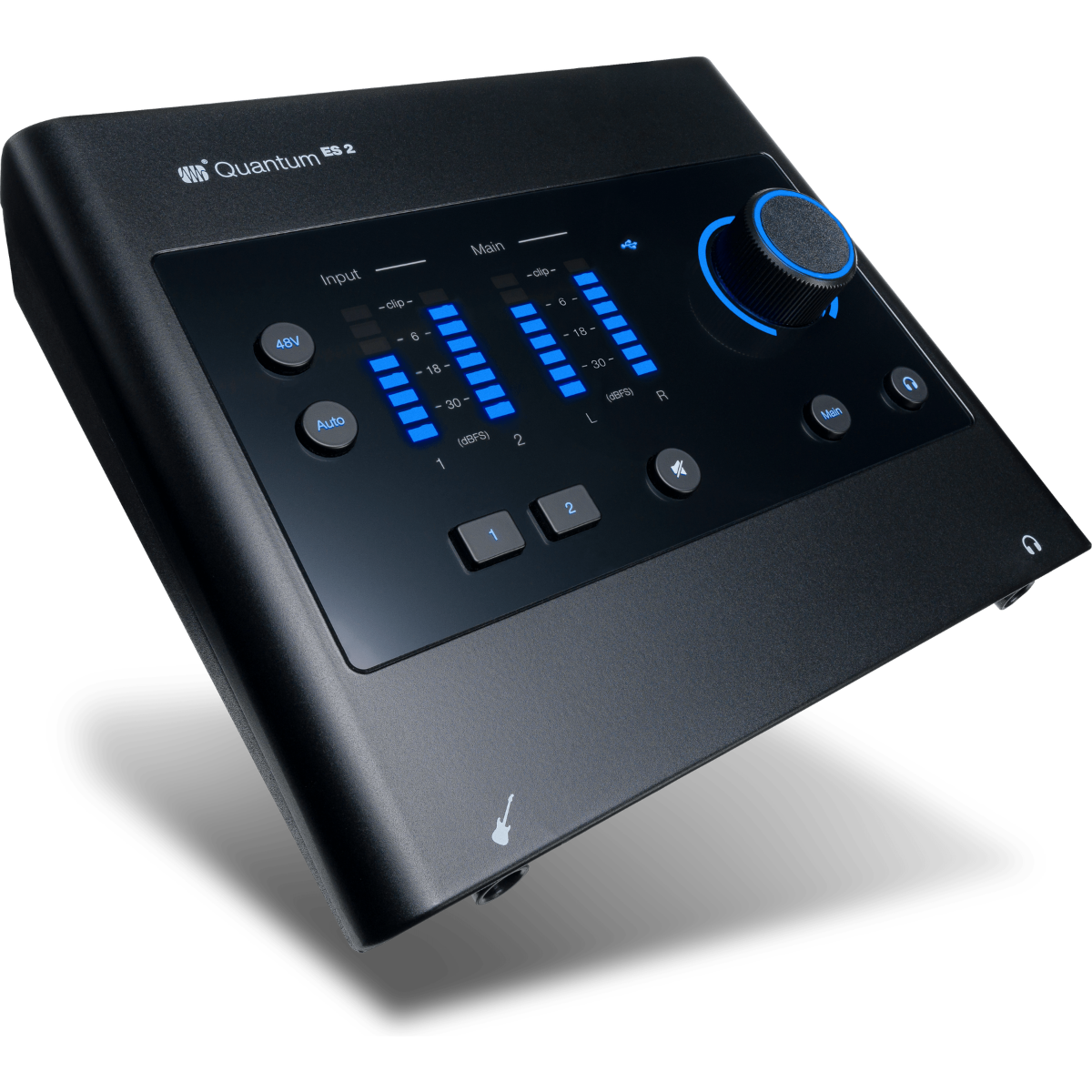

PreSonus Quantum ES 2
(PreSonus Quantum-ES-2)
USB-C Audio Interface
PreSonus Quantum ES 2 is a compact 2x2 USB-C audio interface designed for recording vocals, instruments, and line-level sources with high-resolution 24-bit/192 kHz audio quality. With newly redesigned MAX-HD mic preamps, low-latency performance, Auto Gain, and flexible software control, it is a strong fit for self-recording musicians, content creators, and home studio users who want professional sound in a streamlined desktop format.
PreSonus Quantum ES 2 Competitive Differences
- Two redesigned MAX-HD mic preamps deliver up to 75 dB of gain for modern microphones
- Front-facing instrument input was co-developed with Fender engineers for guitar and bass
- Auto Gain helps set recording-ready levels quickly for microphones and instruments
- Includes a perpetual Fender Studio Pro license for recording right out of the box
PreSonus Quantum ES 2 Description
The PreSonus Quantum ES 2 is built for musicians and creators who want a simple but capable recording interface with strong audio performance and modern workflow features. Its 2x2 configuration makes it ideal for solo recording, podcasting, songwriting, overdubbing, and compact desktop studio setups, while its USB-C connectivity supports high-resolution recording up to 24-bit/192 kHz.
At the core of the interface are two newly redesigned MAX-HD mic preamps that provide up to 75 dB of gain. These digitally controlled analog preamps are designed to offer transparent, low-noise operation, making them especially useful with a wide range of microphones, including gain-hungry dynamic models. Bright LED metering and an illuminated push encoder make it easier to monitor and adjust levels directly from the hardware.
Guitarists and bassists benefit from the front-facing instrument input, which was co-developed with Fender engineers for an input stage tailored to electric guitar and bass recording. Auto Gain simplifies setup by helping users quickly establish proper input levels, while the Universal Control app allows access to key functions such as preamp gain, phantom power, and metering from desktop, tablet, or mobile devices.
PreSonus Quantum ES 2 also includes a perpetual Fender Studio Pro license, giving users a ready-to-record software package alongside the hardware. With custom low-latency drivers, low-noise converters, MIDI connectivity, and a compact footprint, it is a practical solution for creators who need dependable recording quality without adding unnecessary complexity to their workflow.
Quantum ES 2 Features
- 2x2 USB-C audio interface for recording vocals, instruments, and line-level sources
- 24-bit / 192 kHz recording resolution
- Two redesigned MAX-HD mic preamps with 75 dB of gain
- Digitally controlled analog preamp design
- Front-facing instrument input co-developed with Fender engineers
- Auto Gain for quick level setting
- Custom low-latency drivers and low-noise converters
- Illuminated push encoder for gain and output control
- Bright LED metering for input and output monitoring
- Universal Control app support for mobile, desktop, and tablet control
- Includes perpetual Fender Studio Pro license
- MIDI I/O via 3.5 mm Type-B connection
Quantum ES 2 Specifications
- Product Type: 2x2 USB-C Audio Interface
- Series: Quantum
- Color: Black
- Bit Depth: 24-bit
- Supported Sample Rates: 44.1, 48, 88.2, 96, 176.4, 192 kHz
- Digital Audio Dynamic Range: 120 dB
- USB Connectivity: USB-C
- Microphone Inputs: XLR female combo, balanced
- Mic Input Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB
- Mic Input Impedance: 1600 Ohms
- Mic Input Dynamic Range: 113 dB (A-Weighted, minimum gain)
- Mic EIN: -129 dBu (maximum gain, 150 Ohms, 22 kHz BW, A-Weighted)
- Mic THD+N: 0.001% (1 kHz, minimum gain)
- Mic Gain Range: 75 dB
- Mic Maximum Input Level: +14 dBu (balanced, minimum gain)
- Phantom Power: +48 VDC
- Line Input Frequency Response: 20 Hz to 20 kHz, +/- 0.1 dB
- Line Input Impedance: 10K Ohms
- Line Input Dynamic Range: 114 dB (A-Weighted, minimum gain)
- Line Input THD+N: 0.001% (1 kHz, minimum gain)
- Line Input Gain Range: +/- 10 dB
- Line Maximum Input Level: +15 dBu (balanced, minimum gain)
- Instrument Input Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB
- Instrument Input Dynamic Range: 111 dB (A-Weighted, minimum gain)
- Instrument Input THD+N: 0.002% (1 kHz, minimum gain)
- Instrument Gain Range: 75 dB
- Instrument Maximum Input Level: +15 dBu (unbalanced, minimum gain)
- Main Outputs: 1/4 in TRS female
- Headphone Output: 1 x 1/4 in TRS female stereo
- Headphone Frequency Response: 20 Hz to 20 kHz, +/- 0.2 dB
- Headphone Impedance Working Range: 22 Ohms
- Headphone Dynamic Range: 111 dB (A-Weighted)
- Headphone THD+N: 0.02% (1 kHz)
- Headphone Maximum Output Level: 7.5 dBu (50 Ohms)
- MIDI I/O Connection: 3.5 mm Type-B
- Voltage: 120V
- Dimensions: 6.9 x 6.2 x 1.9 in (175 x 158 x 48.3 mm)
- Weight: 1.5 lb (0.68 kg)
What's In The Box
- PreSonus Quantum ES 2 audio interface
- Perpetual Fender Studio Pro license
