PreSonus StudioLive 24R | 24 XMAX-R Preamps - 40 Channel Mixer | 128x128 USB Interface with AVB

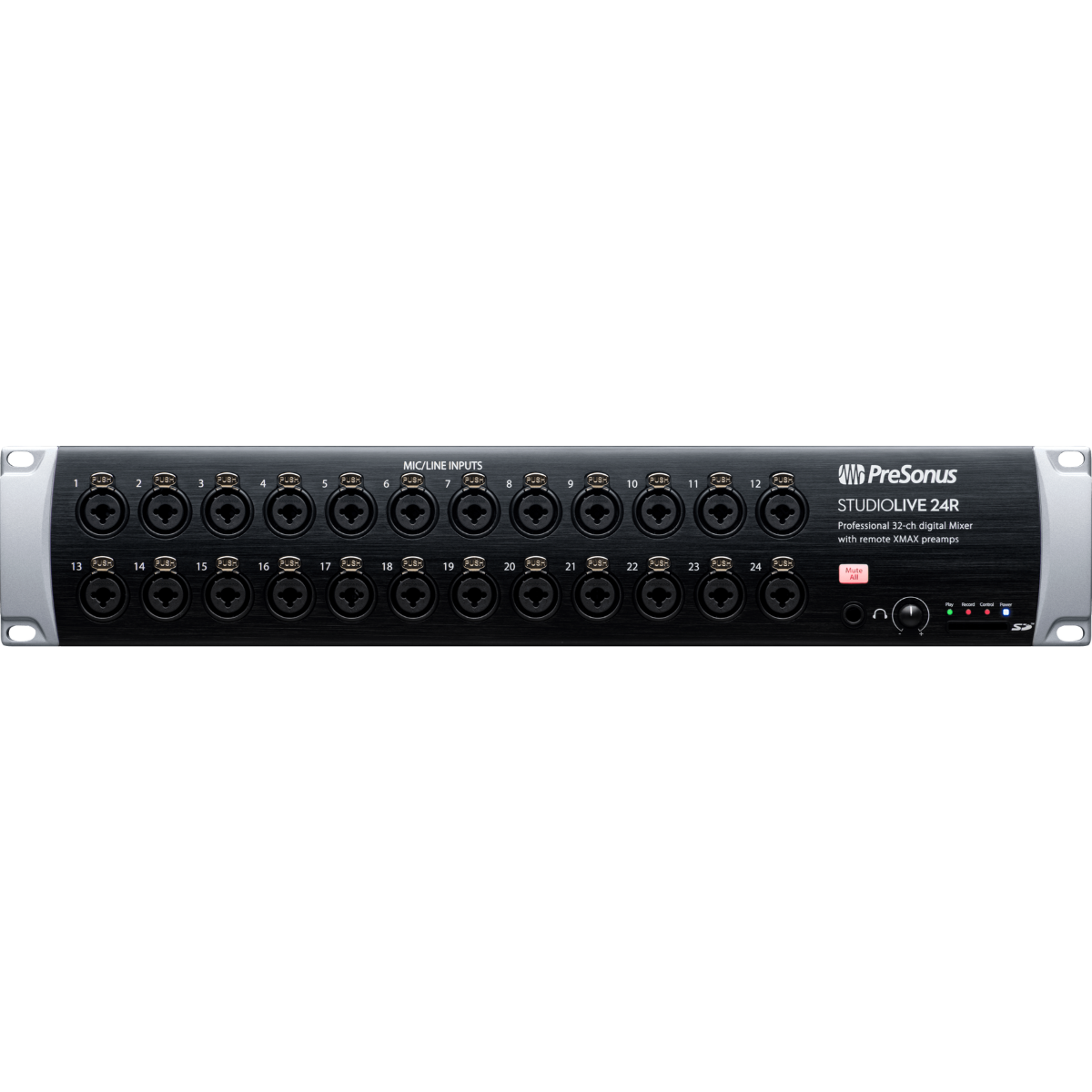

PreSonus StudioLive 24R  (PreSonus StudioLive-24R)

Digital Rack Mixer

PreSonus StudioLive 24R is a compact yet powerful digital rack mixer designed for live sound, studio recording, and personal monitoring systems. With flexible operating modes as a standalone mixer, stage box, or monitor mixer, it adapts easily to a wide range of professional audio workflows.

PreSonus StudioLive 24R Competitive Differences

• 24 XMAX-R recallable mic preamps with 40-channel DSP mixing engine
• 128x128 USB audio interface with AVB networking and onboard SD recording

PreSonus StudioLive 24R Description

The PreSonus StudioLive 24R delivers professional-grade mixing in a compact rackmount format, making it ideal for touring rigs, installed systems, and studio environments. Its 24 XMAX-R preamps provide clean, high-headroom input with digital recall, while the FLEX DSP engine powers 40 channels, 26 buses, and hundreds of onboard processors for dynamic control and tonal shaping.

With 16 FlexMixes configurable as aux sends, subgroups, or matrix mixes, the StudioLive 24R offers unmatched routing flexibility. It also includes four FX buses, four subgroups, and 24 DCAs, allowing engineers to manage complex mixes with ease. The integrated Fat Channel processing provides vintage-modeled EQs and compressors on every input and output, delivering studio-quality sound in live environments.

This mixer excels as a personal monitoring hub when paired with EarMix systems, giving musicians customizable mixes on stage. It also functions seamlessly as a digital stage box for StudioLive Series III consoles via AVB networking, allowing remote control of gain and routing directly from the main console.

For recording applications, the built-in 128x128 USB interface enables multitrack capture and playback, while the onboard SD recorder supports Virtual Soundcheck. Integration with Capture software and included Fender Studio Pro software makes it easy to transition from live performance to studio production.

24R Features

• 40-channel digital rack mixer with 24 XMAX-R mic/line inputs
• 26 mix buses including 16 FlexMixes, 4 FX buses, and stereo main
• 128x128 USB audio interface for multitrack recording
• State Space Modeled Fat Channel EQ and compressors on all channels
• 4 FLEX FX slots with reverb and delay effects
• 24 DCAs for flexible group control
• AVB networking for integration with StudioLive systems and EarMix
• Onboard SD recorder with Virtual Soundcheck
• Remote control via Universal Control and QMix-UC apps

24R Specifications

• Channels: 40 total (24 mic/line inputs)
• Mix Buses: 26 (16 FlexMixes, 4 FX, 4 subgroups, main)
• USB Audio Interface: 128x128 (64x64 I/O)
• Dynamic Range: 115 dB (ADC/DAC, A-weighted)
• Total System Latency: 1.9 ms
• Processing: 32-bit floating point
• Frequency Response: 20 Hz – 20 kHz (±0.5 dB)
• Power Consumption: 35W
• Dimensions: 19 x 12 x 3.5 in (483 x 305 x 90 mm)
• Weight: 10.8 lb (4.9 kg)

What's In The Box

• StudioLive 24R rack mixer
• IEC power cable
• Quick start guide
