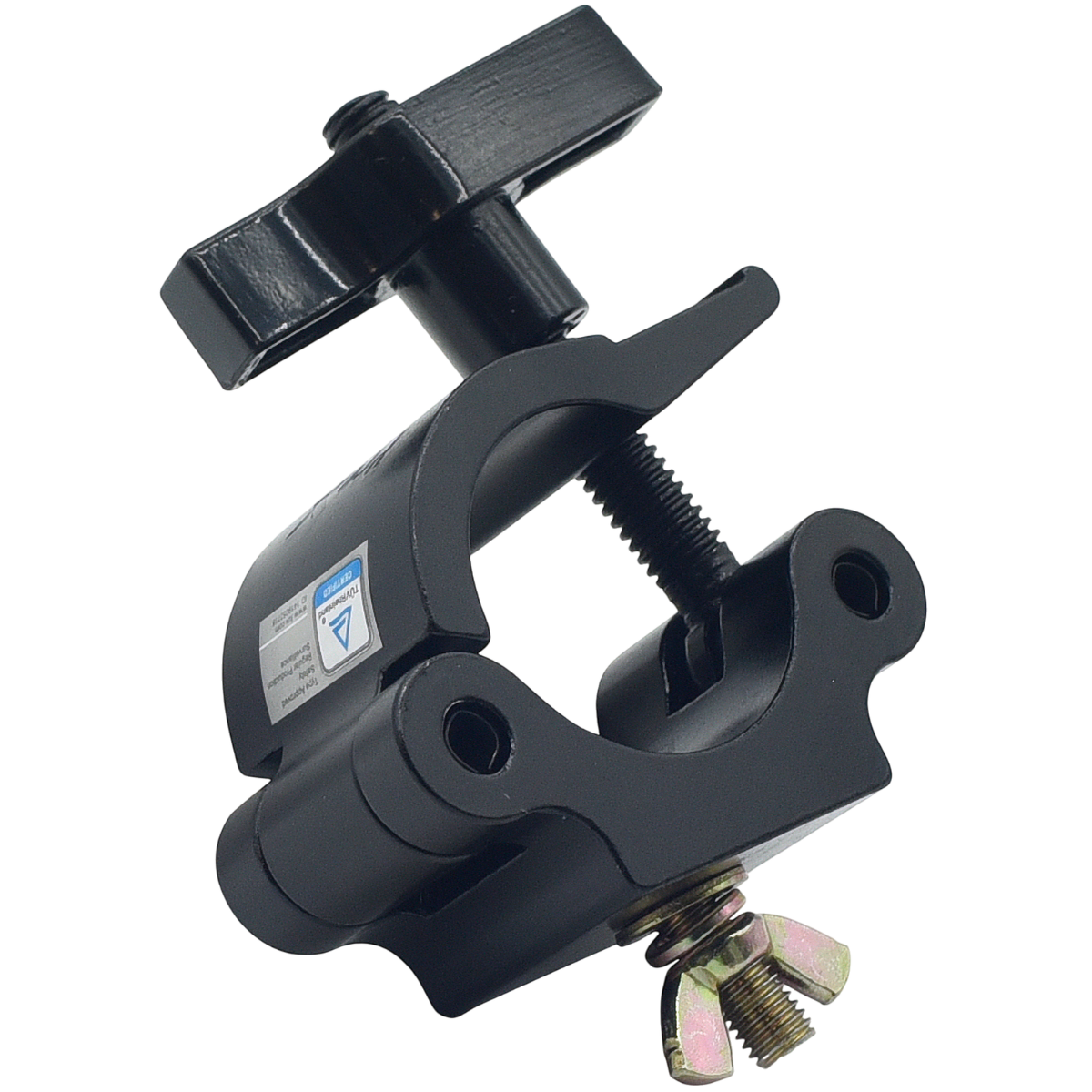

ProX T-C40H-BLK | 1100lb Load Capacity Truss Clamp | Black Aluminum with M10 Bolt

ProX T-C40H-BLK  (ProX T-C40H)

Heavy-Duty Aluminum Truss Clamp

The ProX T-C40H-BLK is a heavy-duty aluminum truss clamp designed for securely mounting stage lighting fixtures and production equipment to compatible truss systems. Constructed from high-strength 6061-T6 aluminum with a black finish, this clamp features an 1100 lb (500 kg) safe working load, an M10 threaded bolt attachment, and an oversized tightening knob for dependable installation in professional lighting and staging applications.

ProX T-C40H-BLK Competitive Differences

• Heavy-duty 1100 lb (500 kg) safe working load for demanding lighting and stage rigging applications.
• High-strength 6061-T6 aluminum construction combines durability with lightweight handling.
• TÜV-approved clamp design for professional load-bearing applications.
• Designed for standard 2-inch truss tubing with compatible tube diameters from 1.9 to 2.008 inches (48 to 51 mm).
• Countersunk M10 threaded bolt with square neck helps prevent bolt rotation during tightening.
• Oversized integrated tightening knob allows quick, convenient clamp adjustment without additional tools.
• Black aluminum finish provides a discreet appearance for stage, theater, and production installations.
• Zinc yellow chromate-plated steel hardware provides corrosion resistance.

ProX T-C40H-BLK Description

The ProX T-C40H-BLK provides a secure mounting solution for professional stage lighting, entertainment production, and truss installations. Designed to accommodate compatible standard 2-inch truss tubing, this heavy-duty clamp offers a safe working load of 1100 lb (500 kg), making it suitable for demanding applications when installed within approved rigging limits.

Manufactured from high-strength 6061-T6 aluminum alloy, the clamp combines structural durability with a lightweight design. Its black finish makes it an excellent choice for concert stages, theaters, broadcast studios, and permanent installations where mounting hardware should remain visually unobtrusive.

The clamp features a countersunk M10 threaded bolt attachment with a square-neck design that helps prevent rotation while tightening. An oversized integrated knob provides convenient, tool-free clamp adjustment, helping lighting technicians and production crews perform equipment installations efficiently. Included fastening hardware consists of a hex nut, flat washer, split lock washer, and wing nut, with zinc yellow chromate plating for corrosion resistance.

Designed for professional rigging environments, the T-C40H-BLK features TÜV-approved construction and a secure clamping mechanism for compatible truss and pipe installations. Its combination of high load capacity, aluminum construction, and practical fastening hardware makes it a versatile mounting accessory for live events, lighting systems, and production facilities. All suspended equipment must be installed according to applicable rigging safety requirements and the rated capacity of the complete mounting system.

T-C40H-BLK Features

• Heavy-duty aluminum truss lighting clamp
• 1100 lb (500 kg) safe working load
• High-strength 6061-T6 aluminum alloy construction
• Black finish for discreet stage installations
• Designed for standard 2-inch (50 mm) truss systems
• Compatible tube diameter range: 1.9 to 2.008 inches (48 to 51 mm)
• M10 threaded bolt attachment
• Countersunk M10 bolt with square neck to help prevent rotation
• Oversized integrated tightening knob for convenient adjustment
• Included hex nut, flat washer, split lock washer, and wing nut
• Zinc yellow chromate-plated steel hardware for corrosion resistance
• TÜV-approved design for professional load-bearing applications
• Suitable for stage lighting, truss systems, theaters, concerts, and production installations

T-C40H-BLK Specifications

• Brand: ProX
• Model: T-C40H-BLK
• Product Type: Heavy-Duty Truss Lighting Clamp
• Clamp Size: 2 in (50 mm) nominal
• Minimum Tube Diameter: 1.9 in (48 mm)
• Maximum Tube Diameter: 2.008 in (51 mm)
• Safe Working Load: 1100 lb (500 kg)
• Material: 6061-T6 Aluminum Alloy
• Color: Black
• Bolt Attachment: M10 Threaded Bolt
• Bolt Design: Countersunk M10 with Square Neck
• Tightening Mechanism: Oversized Knob
• Included Fastening Hardware: Hex Nut, Flat Washer, Split Lock Washer, Wing Nut
• Hardware Finish: Zinc Yellow Chromate-Plated Steel
• Certification: TÜV Approved
• UPC: 798239008279
• Master Carton Quantity: 12 Clamps
• Master Carton Dimensions: 8 x 11 x 7 in (203.2 x 279.4 x 177.8 mm)
• Master Carton Shipping Weight: 20 lb (9.07 kg)

What's In The Box

• ProX T-C40H-BLK Heavy-Duty Black Aluminum Truss Clamp
• M10 Threaded Bolt
• Hex Nut
• Flat Washer
• Split Lock Washer
• Wing Nut
