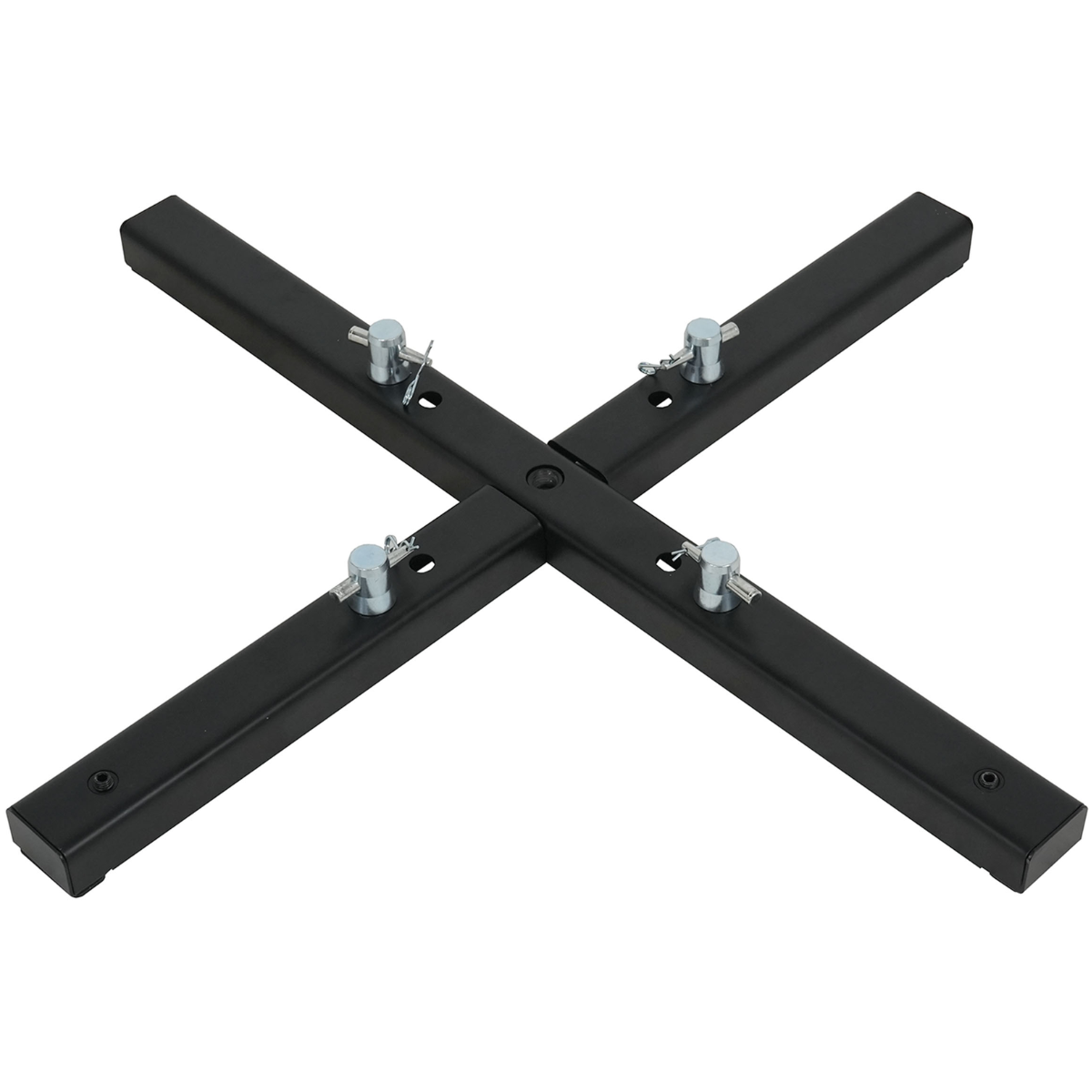

ProX XT-BPX36S | 36in X-Style Base Plate | Fits F34, Bolt Truss & M20 Poles

ProX XT-BPX36S  (ProX XTBPX36S)

X-Style Truss Base Plate

The ProX XT-BPX36S is a 36-inch X-style base plate designed to provide a wide mounting footprint for professional truss and pole installations. Compatible with F34 square truss, bolt truss, and M20 poles, this versatile base plate is ideal for stage lighting, truss towers, goalpost structures, trade shows, and large event production setups requiring a broad base platform.

ProX XT-BPX36S Competitive Differences

• 36-Inch Base Plate: Provides a broad footprint for larger truss installations, positioned between the 30-inch and 42-inch models in the ProX X-Style lineup.
• X-Style Mounting Pattern: Multiple mounting positions arranged in an X pattern accommodate different compatible truss and pole configurations.
• F34 Truss Compatibility: Designed for use with compatible F34 square truss systems commonly used in professional staging and event lighting.
• Bolt Truss Compatibility: Supports compatible bolt truss installations for additional flexibility across different staging systems.
• M20 Pole Compatibility: Accommodates compatible M20 poles for single-pole lighting, speaker, and decorative applications.
• Multi-System Versatility: One base plate can serve multiple compatible truss and pole configurations, helping production crews simplify equipment inventory.

ProX XT-BPX36S Description

The ProX XT-BPX36S provides a substantial 36-inch footprint for production companies, rental houses, and event professionals working with larger truss structures. Wider than the 24-inch XT-BPX24S and 30-inch XT-BPX30S models, this base plate offers an intermediate size below the 42-inch XT-BPX42S for applications requiring additional floor coverage.

The X-style mounting pattern allows the plate to accommodate compatible F34 square truss, bolt truss, and M20 poles. This versatile mounting configuration is particularly useful for crews managing mixed truss inventories, reducing the need for separate base plates for every compatible system. The mounting layout also helps position the upright centrally over the plate's footprint.

Designed for professional event production environments, the XT-BPX36S is suitable for concert stages, festival productions, lighting goalposts, trade show displays, large ballrooms, and exhibition installations. Its broad base platform makes it a practical option for appropriately designed truss towers and other freestanding structures. Compatible M20 poles can also be used for single-pole lighting, speaker, or decorative applications where a floor-mounted pole arrangement is preferred.

For taller structures and outdoor installations, proper stabilization is essential. Base plate selection, ballast requirements, structural loading, and environmental conditions must be evaluated for each setup. Follow manufacturer installation guidelines and applicable professional rigging standards to ensure the complete structure is appropriately supported.

XT-BPX36S Features

• 36-inch X-style truss base plate for professional staging and lighting applications
• Wide footprint positioned between the 30-inch and 42-inch models in the ProX X-Style series
• X-pattern mounting layout accommodates multiple compatible truss and pole configurations
• Compatible with F34 square truss systems
• Compatible with supported bolt truss systems
• Accepts compatible M20 poles for single-pole installations
• Mounting layout helps center the truss or pole over the base
• Multi-system compatibility helps reduce the number of specialized base plates needed for mixed equipment inventories
• Suitable for appropriately designed truss towers and goalpost installations
• Designed for concert production, festivals, trade shows, ballroom events, and large venue setups
• Part of the ProX X-Style base plate series, available in 24-inch, 30-inch, 36-inch, and 42-inch sizes
• Covered by the ProX Limited Warranty, subject to manufacturer terms

XT-BPX36S Specifications

• Brand: ProX
• Model: XT-BPX36S
• Product Type: X-Style Truss Base Plate
• Base Plate Size: 36 in (914.4 mm)
• Mounting Pattern: X-Style
• Truss Compatibility: Compatible F34 Square Truss and Bolt Truss Systems
• Pole Compatibility: M20 Poles
• Applications: Stage Lighting, Truss Towers, Goalpost Structures, Event Production, and Display Installations
• Shipping Dimensions (L x W x H): 38 x 5 x 4 in (965.2 x 127 x 101.6 mm)
• Shipping Weight: 25 lb (11.3 kg)
• Suggested Shipping Method: Parcel

What's In The Box

• 1 x ProX XT-BPX36S 36-Inch X-Style Base Plate
