ProX XT-BPX42S | 42in X-Style Base Plate | Fits F34, Bolt Truss & M20 Poles

ProX XT-BPX42S  (ProX XTBPX42S)

X-Style Truss Base Plate

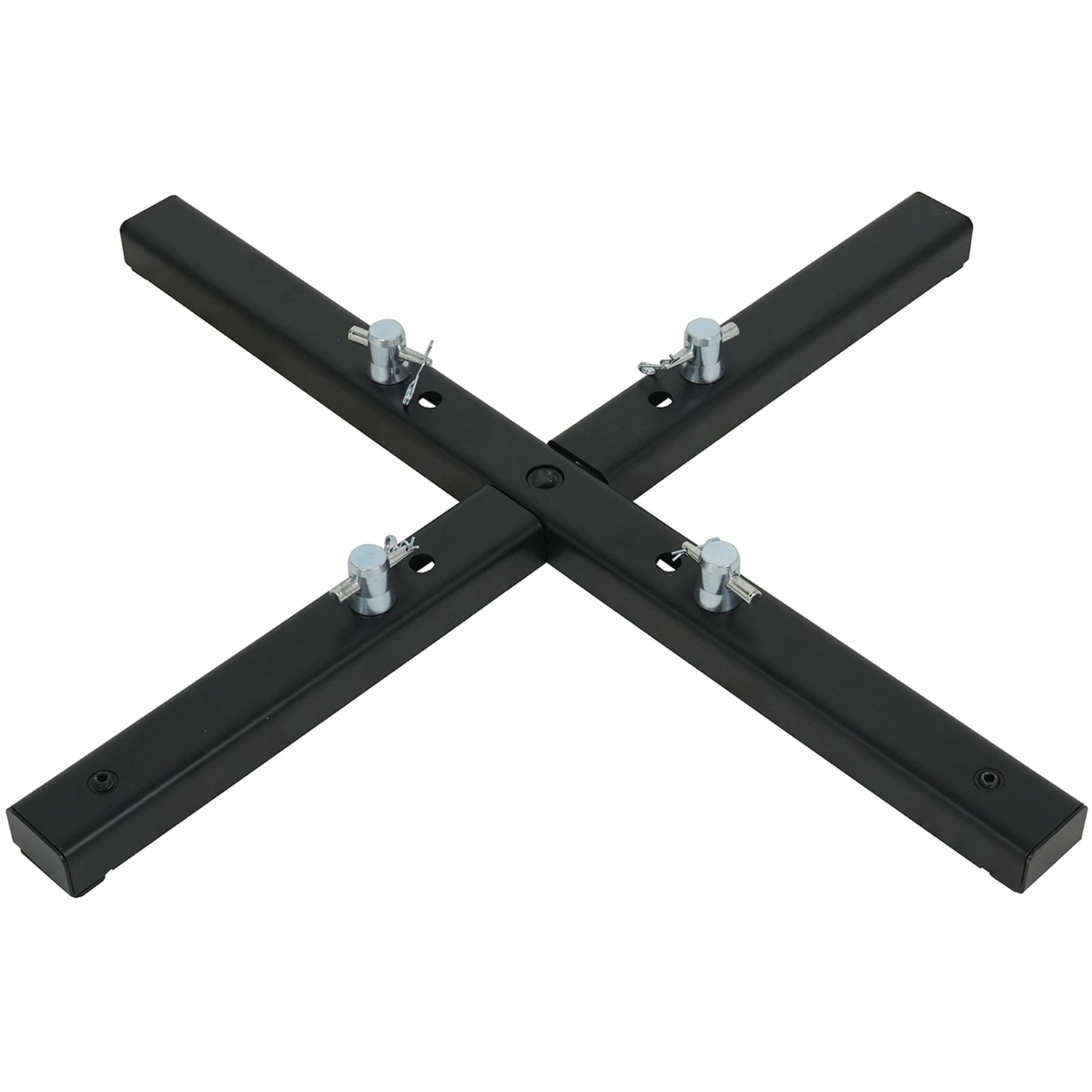

The ProX XT-BPX42S is a 42-inch X-style base plate designed to provide a broad mounting footprint for professional truss and pole installations. Compatible with F34 square truss, bolt truss, and M20 poles, this versatile base plate is ideal for stage lighting, event production, trade shows, and large-scale entertainment setups requiring a wide base platform.

ProX XT-BPX42S Competitive Differences

• 42-Inch Base Plate: The largest size in the ProX X-Style base plate lineup, providing an expansive footprint for large truss and pole installations.
• X-Style Mounting Pattern: Multiple mounting positions arranged in an X pattern accommodate different compatible truss and pole configurations.
• F34 Truss Compatibility: Designed for use with compatible F34 square truss systems commonly found in stage lighting and event production.
• Bolt Truss Compatibility: Supports compatible bolt truss installations for added flexibility across different staging systems.
• M20 Pole Compatibility: Accommodates compatible M20 poles for single-pole lighting, speaker, and decorative applications.
• Multi-System Versatility: One base plate can serve multiple compatible truss and pole configurations, helping production crews simplify equipment inventory.

ProX XT-BPX42S Description

The ProX XT-BPX42S offers the widest base plate size in the ProX X-Style series, making it a practical choice for production companies, rental houses, and event professionals working with large truss structures. Its 42-inch footprint provides a broad foundation for appropriately designed lighting towers, goalpost systems, and other freestanding truss configurations.

The X-style mounting pattern allows the plate to accommodate compatible F34 square truss, bolt truss, and M20 poles. This multi-system design is particularly useful for crews operating different types of equipment, reducing the need to maintain separate base plates for every compatible configuration. The mounting layout also helps position the upright centrally over the base footprint.

Designed for professional event production environments, the XT-BPX42S is suited to concert stages, festival productions, arena floors, large ballrooms, trade shows, and exhibition displays. It can also support compatible M20 pole applications where a floor-mounted pole configuration is preferred over a traditional tripod-style stand.

For taller structures and outdoor installations, proper stabilization is essential. Base plate selection, ballast requirements, structural loading, and environmental conditions must be evaluated for each setup. Follow manufacturer installation guidelines and applicable professional rigging standards to ensure the complete structure is appropriately supported.

XT-BPX42S Features

• 42-inch X-style truss base plate for professional staging and lighting applications
• Largest footprint available in the ProX X-Style base plate series
• X-pattern mounting layout accommodates multiple compatible truss and pole configurations
• Compatible with F34 square truss systems
• Compatible with supported bolt truss systems
• Accepts compatible M20 poles for single-pole installations
• Mounting layout helps center the truss or pole over the base
• Versatile design helps reduce the number of specialized base plates required for mixed equipment inventories
• Suitable for appropriately designed truss towers and goalpost installations
• Designed for concert production, festivals, trade shows, arena events, and large venue setups
• Part of the ProX X-Style base plate series, available in 24-inch, 30-inch, 36-inch, and 42-inch sizes
• Covered by the ProX Limited Warranty, subject to manufacturer terms

XT-BPX42S Specifications

• Brand: ProX
• Model: XT-BPX42S
• Product Type: X-Style Truss Base Plate
• Base Plate Size: 42 in (1066.8 mm)
• Mounting Pattern: X-Style
• Truss Compatibility: Compatible F34 Square Truss and Bolt Truss Systems
• Pole Compatibility: M20 Poles
• Applications: Stage Lighting, Truss Towers, Goalpost Structures, Event Production, and Display Installations
• Shipping Dimensions (L x W x H): 44 x 5 x 4 in (1117.6 x 127 x 101.6 mm)
• Shipping Weight: 28 lb (12.7 kg)

What's In The Box

• 1 x ProX XT-BPX42S 42-Inch X-Style Base Plate
