ProX XT BT1205 BLK | 5ft 12in Bolted Box Truss | 3mm-Wall Black Aluminum Construction

ProX XT-BT1205BLK  (ProX XTBT1205BLK)

Bolted Box Truss Segment

The ProX XT BT1205 BLK is a 5-foot-long, 12-inch professional box truss segment designed for stage lighting, concerts, exhibits, obstacle-course construction, and other properly engineered truss applications. Its bolted connection system and industry-standard dimensions support dependable fitment with many compatible 12-inch bolted box truss systems.

ProX XT BT1205 BLK Competitive Differences

• BoltX aluminum end plates are welded on both sides for a reinforced connection structure
• Integrated circular corner rings help protect the main chord ends from impact and handling damage
• Heavy-duty main chord and diagonal tubes both feature 3mm wall thicknesses
• Industry-standard 6.75 x 6.75-inch bolt pattern supports compatibility with many 12-inch bolted box truss systems
• Load tested and inspected during manufacturing and quality control
• Includes a complete set of bolts, nuts, flat washers, and lock washers

ProX XT BT1205 BLK Description

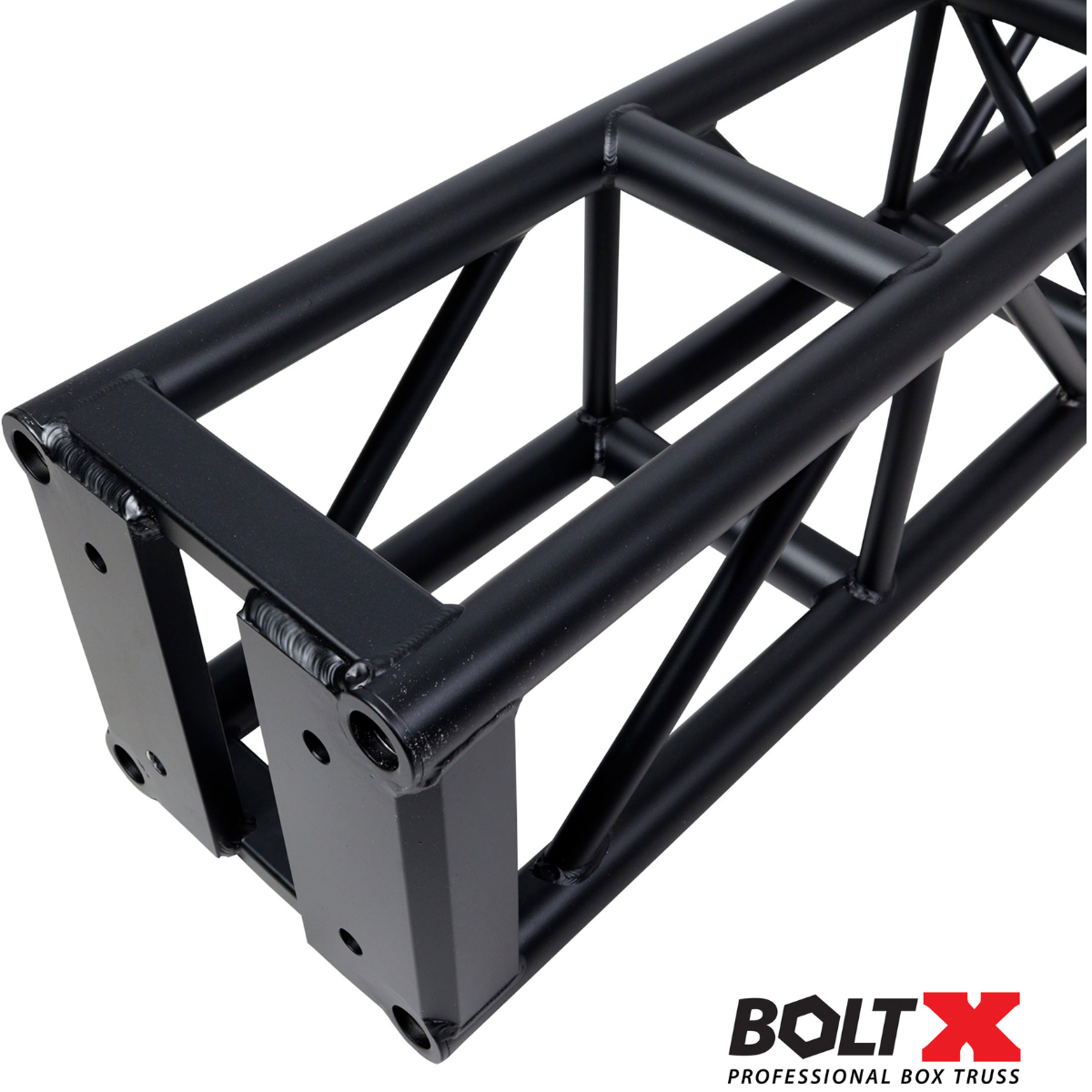

The ProX XT BT1205 BLK BoltX professional box truss combines 6082-T6 aluminum construction with a reinforced end-plate design made for repeated setup, transport, and teardown. Each end plate is welded on both sides, while circular rings at the corners help reduce damage to the main chord ends when the truss is moved or placed on hard surfaces.

The truss uses 2-inch-diameter main chord tubing with a 3mm wall and 1-inch diagonal tubing with a 3mm wall. This substantial construction supports use in stage lighting systems, concert productions, exhibit structures, and obstacle-course installations designed and reviewed for the intended loads.

An industry-standard 6.75-inch bolt-center pattern with 5/8-inch connection holes allows the segment to work with many professional 12-inch bolted box truss products. Consistent manufacturing and quality-control procedures help provide accurate connection fitment and more efficient assembly.

The black-coated aluminum finish creates a low-profile appearance for stages and entertainment environments. The truss is welded to TÜV standards by GSI SLV-certified welders, and ProX recommends using a licensed engineering professional for complex loading configurations or installation conditions.

XT BT1205 BLK Features

• 5-foot professional bolted box truss segment
• 12 x 12-inch square truss profile
• Reinforced BoltX aluminum end plates
• End plates welded on both sides
• Circular corner rings help protect main chord tube ends
• Industry-standard 6.75 x 6.75-inch bolt-center pattern
• Compatible with many 12-inch professional bolted box truss systems
• Load tested and inspected during manufacturing and quality control
• 6082-T6 aluminum alloy construction
• Welded to TÜV standards by GSI SLV-certified welders
• Black-coated aluminum finish
• Suitable for stage lighting, concerts, exhibits, and engineered obstacle-course structures

XT BT1205 BLK Specifications

• Truss Type: Bolted box truss segment
• Truss Profile: 12 x 12 in (304.8 x 304.8 mm)
• Length: 60 in (1524 mm)
• Material: 6082-T6 aluminum alloy
• Finish: Black-coated aluminum
• Main Chord Diameter: 2 in (50.8 mm)
• Main Chord Wall Thickness: 3 mm (1/8 in)
• Diagonal Tube Diameter: 1 in (25.4 mm)
• Diagonal Tube Wall Thickness: 3 mm (1/8 in)
• Bolt-Center Pattern: 6.75 x 6.75 in (171.5 x 171.5 mm)
• Connection Hole Diameter: 5/8 in
• Connection Bolt Size: 5/8-11 x 2.5 in NC
• Exterior Dimensions: 12 x 12 x 60 in (304.8 x 304.8 x 1524 mm)
• Weight: 40 lb (18.1 kg)
• Shipping Dimensions: 13 x 13 x 61 in (330.2 x 330.2 x 1549.4 mm)
• Shipping Weight: 46 lb (20.9 kg)

What's In The Box

• ProX XT BT1205 BLK 5-foot box truss segment
• Four 5/8-11 x 2.5-inch NC attachment bolts
• Four connection nuts
• Four flat washers
• Four lock washers
