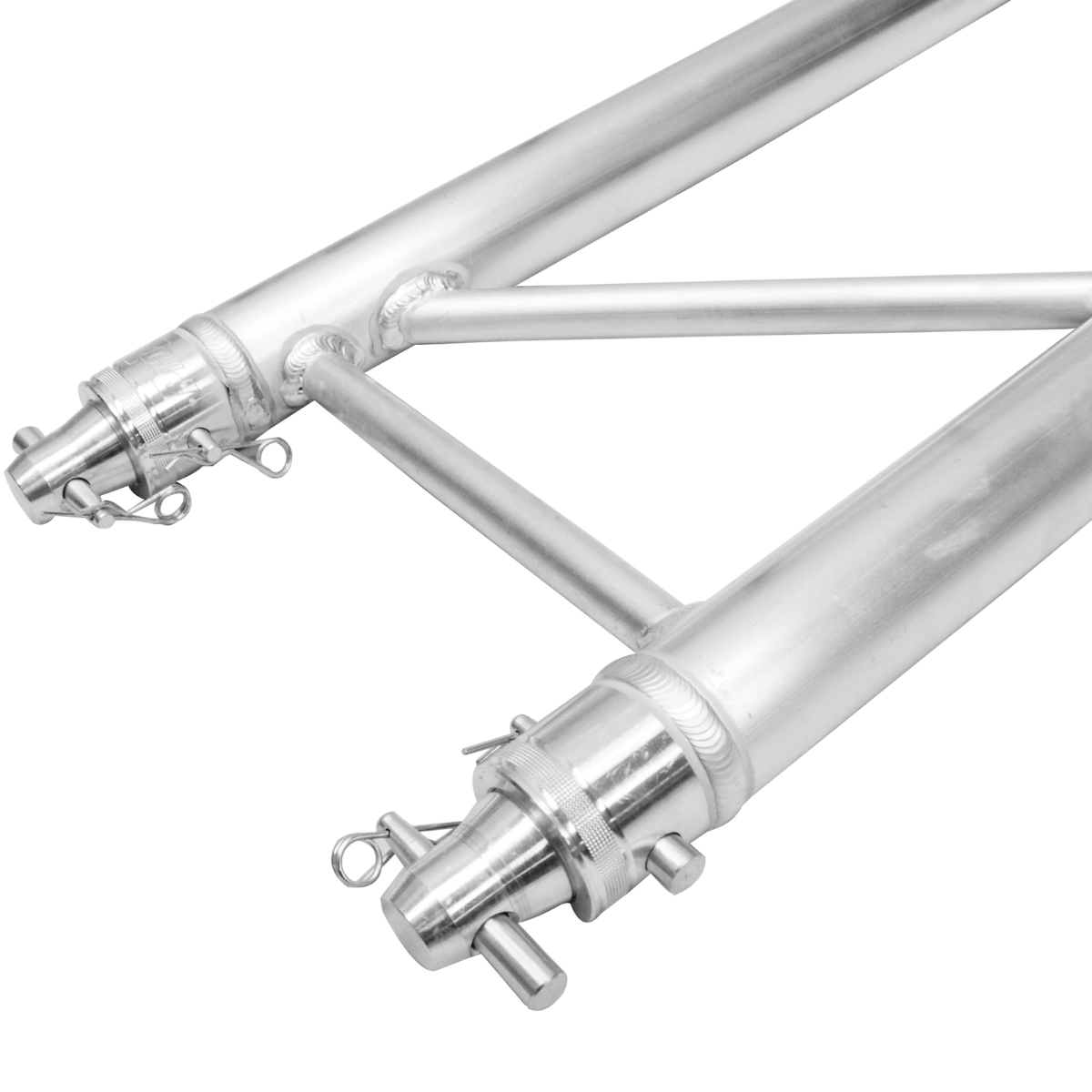

ProX XT-F32-328 | 3.28ft F32 I-Beam Truss | 2mm Wall Aluminum Segment

ProX XT-F32-328  (ProX XT-F32328)

I-Beam Truss Segment

ProX XT-F32-328 is a 3.28 ft F32 I-beam truss segment designed for vertical or horizontal use in staging, event production, trade show, retail, and installation applications. Its compact 2-point design, 2mm wall thickness, and aluminum construction provide a rugged yet lightweight support option for building reliable truss systems.

ProX XT-F32-328 Competitive Differences

• 3.28 ft / 1.00 m F32 I-beam truss segment for vertical or horizontal configurations
• 2mm main tube wall thickness supports dependable performance in compact truss designs
• Industry-standard conical connector system mates with compatible truss of the same size and connector style
• Manufactured from EN-AWT6 6082 aluminum with TUV certified aluminum welding

ProX XT-F32-328 Description

The ProX XT-F32-328 is part of the F32 truss series, a compact 2-point truss system suited for trade shows, shop construction, event technology, and lighting support. Its 3.28 ft length makes it useful for creating clean vertical or horizontal structures where space efficiency and dependable support are important.

Built for mobile DJs, bands, nightclubs, live productions, outdoor performances, and permanent installations, this truss segment combines rugged construction with a manageable shipping weight. The 11.42 in width, 2 in main tube, and .75 in braces provide a practical balance of strength and portability.

The standard conical connector system allows the XT-F32-328 to integrate with compatible truss sections, corners, base plates, connectors, and accessories of the same size and connector style. Always verify system compatibility and load ratings before use, and always know the total load weight of your equipment.

XT-F32-328 Features

• 3.28 ft / 1.00 m F32 I-beam truss segment
• Designed for vertical or horizontal use
• Compact 2-point truss design
• Suitable for trade shows, shop construction, event technology, and lighting support
• Compatible with standard conical connector systems of the same size and connector style
• Main tube wall thickness of .08 in / 2 mm
• Manufactured from EN-AWT6 6082 aluminum
• TUV certified aluminum welding
• Includes one set of connecting hardware

XT-F32-328 Specifications

• Truss Type: F32 I-beam 2-point truss segment
• Length: 3.28 ft (1.00 m)
• Width: 11.42 in (290 mm)
• Main Tube: 2 in (50 mm)
• Main Tube Wall Thickness: .08 in (2 mm)
• Braces: .75 in (20 mm)
• Material: EN-AWT6 6082 aluminum
• Connector Type: Standard conical connector
• Use Orientation: Vertical or horizontal
• Shipping Dimensions: 2.50 x 12.00 x 40.00 in
• Shipping Weight: 8.00 lb
• Suggested Shipping Method: Parcel

What's In The Box

• ProX XT-F32-328 truss segment
• One set of connecting hardware
