ProX XT F32 656 | 6.56ft 2-Point I-Beam Truss | 2mm Wall Aluminum Construction

ProX XT-F32-656  (ProX XTF32656)

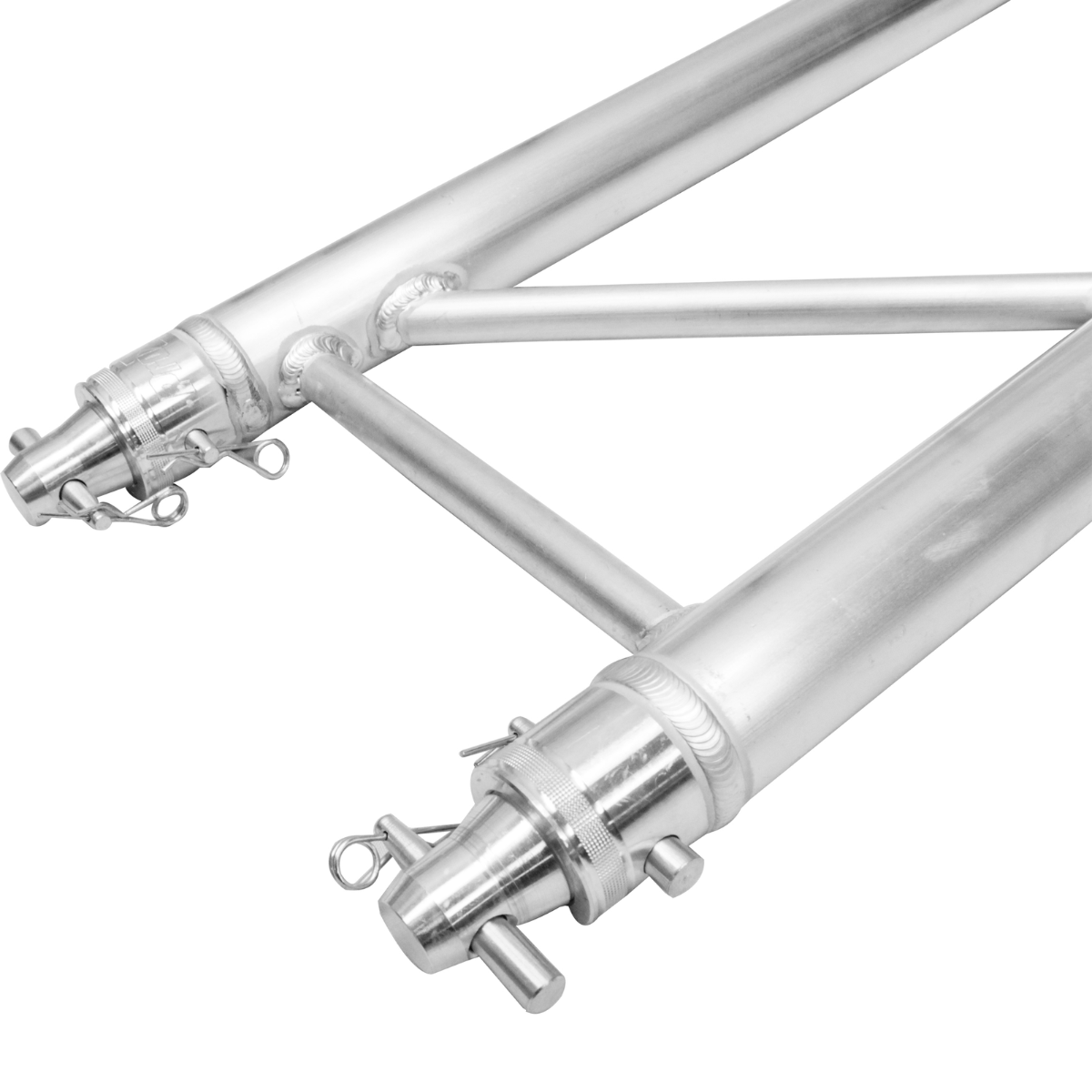

2-Point I-Beam Truss Segment

The ProX XT-F32-656 is a 6.56 ft (2.00 m) 2-point I-beam truss segment designed for lighting support, trade shows, event production, installations, and mobile entertainment systems. Its compact F32 profile combines EN-AWT6 6082 aluminum construction, 2mm main tube walls, and a standard conical connector system for building modular truss structures.

ProX XT-F32-656 Competitive Differences

• 6.56 ft (2.00 m) F32 2-point I-beam design provides a compact truss solution for lighting and event-production applications
• Main tubes use a .08 in (2mm) wall thickness for a balance of strength and manageable weight
• Constructed from EN-AWT6 6082 aluminum
• TUV-certified aluminum welding supports consistent manufacturing and quality standards
• Standard conical connector design simplifies assembly with compatible truss components using the same dimensions and connection system
• Includes one set of connecting hardware

ProX XT-F32-656 Description

The ProX XT-F32-656 is part of the ProX F32 series, a 2-point truss system designed for applications where a narrower, lightweight support structure is preferred. The 6.56 ft segment can be incorporated into exhibition displays, lighting systems, mobile DJ rigs, live productions, nightclub installations, and other event structures.

The truss is manufactured from EN-AWT6 6082 aluminum and uses 2 in (50mm) main tubes with .08 in (2mm) wall thickness. Its braces measure .75 in (20mm), while the overall truss width is 11.42 in (290mm). This construction provides a rugged framework while maintaining the portability needed for repeated setup and teardown.

A standard conical connector system allows the segment to connect quickly with compatible F32-series truss sections, corners, base plates, and accessories. Its industry-standard dimensions can also support integration with compatible trussing that uses matching tube dimensions and connector geometry.

The XT-F32-656 is suitable for both temporary and permanent applications, ranging from simple trade-show displays to more complex lighting and event-production structures. Truss systems should always be configured within the manufacturer's published load limits for the specific span and installation.

XT-F32-656 Features

• 6.56 ft (2.00 m) straight truss segment
• F32 2-point I-beam truss design
• EN-AWT6 6082 aluminum construction
• .08 in (2mm) main tube wall thickness
• Standard conical connector system
• TUV-certified aluminum welding
• Compact 11.42 in (290mm) overall width
• Designed for lighting, event production, trade shows, mobile productions, and permanent installations
• Industry-standard dimensions for use with compatible truss components
• Includes one set of connecting hardware

XT-F32-656 Specifications

• Truss Type: F32 2-point I-beam segment
• Length: 6.56 ft (2.00 m)
• Width: 11.42 in (290mm)
• Main Tube Diameter: 2 in (50mm)
• Main Tube Wall Thickness: .08 in (2mm)
• Brace Diameter: .75 in (20mm)
• Material: EN-AWT6 6082 aluminum
• Connector Type: Standard conical connector
• Shipping Dimensions: 3 x 12 x 79 in
• Shipping Weight: 13 lb
• Suggested Shipping Method: Parcel

What's In The Box

• ProX XT-F32-656 6.56 ft truss segment
• 1 set of connecting hardware
