ProX XT PICKPRO800 | Truss Pick for F34 F32 F31 12in Box Truss | 800 lb SWL Suspension Mount

Pro X XTPICKPRO800  (ProX XT PICKPRO800)

Truss Suspension Pick

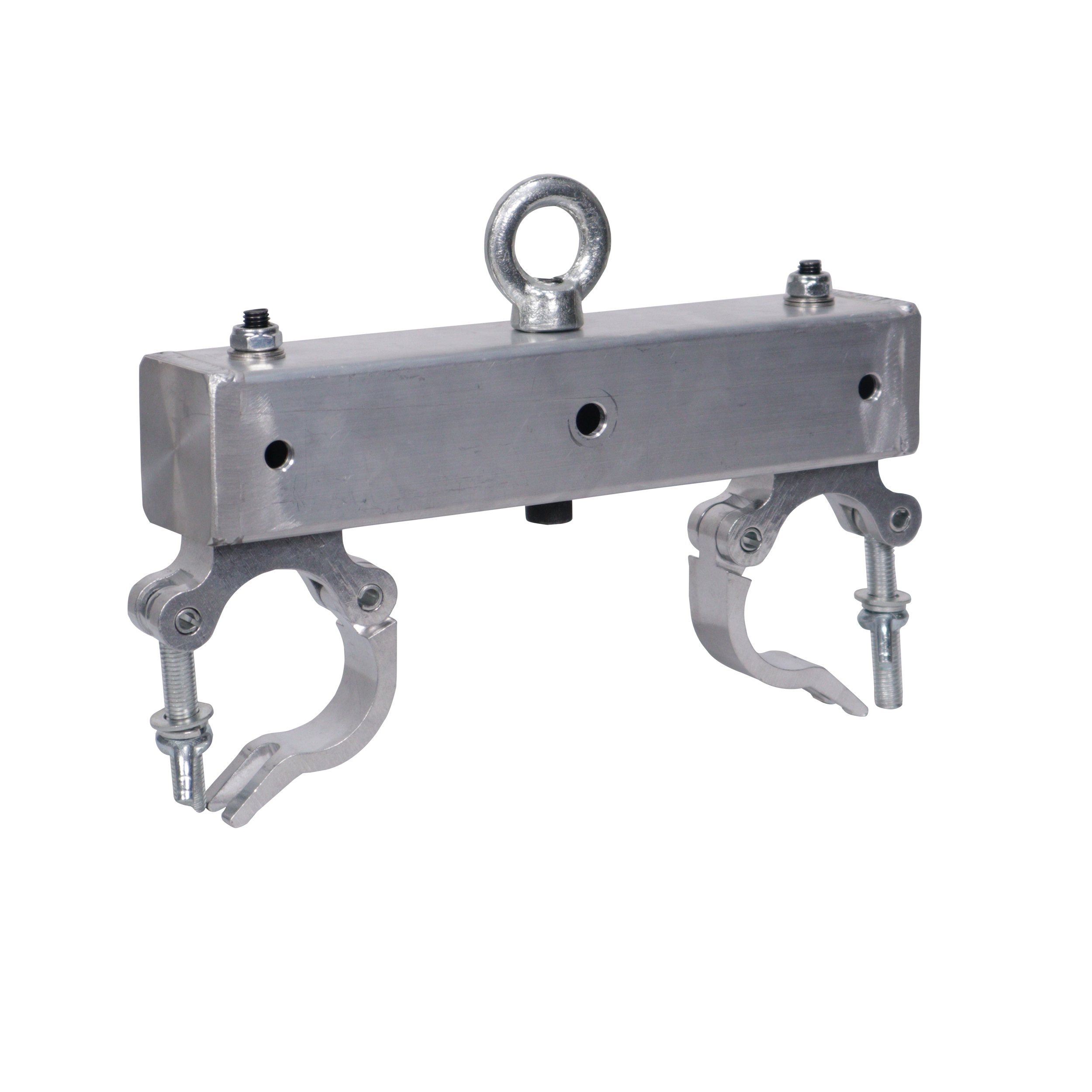

The ProX XT PICKPRO800 is a professional truss pick designed for safely suspending or lifting box truss systems in stage, lighting, and event rigging applications. Built to provide a strong and reliable lifting point, it allows technicians to easily raise, lower, or suspend trussing structures while maintaining proper load balance at the truss center of gravity.

Designed for compatibility with common 12-inch bolt truss systems, this truss pick works with F34, F32, and F31 truss designs from ProX and other similar manufacturers. Its lightweight yet strong aluminum construction ensures dependable performance while keeping overall rigging weight manageable for installers and production crews.

ProX XT PICKPRO800 Competitive Differences

• 800 lb Safe Working Load (SWL) for reliable truss suspension and lifting
• Integrated 360° wrap-around Pro Clamps with load-rated M12 eye bolt

ProX XT PICKPRO800 Description

The ProX XT PICKPRO800 is engineered for professional rigging environments where safety, strength, and efficiency are critical. Constructed from machined and welded tubular box aluminum, the unit offers excellent durability while remaining lightweight for easier handling during setup and teardown.

This truss pick is designed to mount anywhere along the length of compatible truss systems, allowing technicians to position lift points exactly where they are needed. The integrated 360-degree wrap-around coupler clamps provide a secure grip on standard 2-inch (50mm) truss tubing commonly found in F34, F32, and F31 box truss structures.

A load-rated 2-inch M12 eye bolt provides a reliable connection point for motors, shackles, or lifting hardware. With a Safe Working Load of 800 pounds per pick, multiple units can be used together to evenly distribute the load across larger truss structures for safer rigging operations.

Ideal for stage lighting grids, LED screen installations, touring rigs, and event production setups, this truss pick provides a dependable and easy-to-use solution for suspending truss systems while maintaining proper structural integrity and safety standards.

XT PICKPRO800 Features

• Safe Working Load (SWL): 800 lbs
• Compatible with F34, F32, F31 and standard 12-inch bolt truss systems
• Fits 2-inch (50mm) truss tubing
• Integrated 360° wrap-around Pro Clamps
• Load-rated 2-inch M12 eye bolt
• Machined and welded tubular box construction
• Made from 6063 T-6 aluminum with graded steel hardware
• Mounts anywhere along truss length
• Designed and engineered by ProX

XT PICKPRO800 Specifications

• Safe Working Load: 800 lbs
• Material: 6063 T-6 Aluminum
• Compatible Truss: F34, F32, F31, 12-inch Box Truss
• Truss Tube Compatibility: 2 in (50 mm)
• Eye Bolt Size: M12 (2 in)
• Product Dimensions: 3.50 x 7.50 x 13.50 in
• Weight: 4 lb (1.81 kg)
• Shipping Dimensions: 4 x 4 x 20 in
• Shipping Weight: 5 lb (2.27 kg)
• UPC: 019372411789

What's In The Box

• ProX XT PICKPRO800 Truss Pick
• Integrated Pro Clamp Couplers
• M12 Load-Rated Eye Bolt
