ProX XT-USHACKLE075  (ProX XUSHACKLE075)

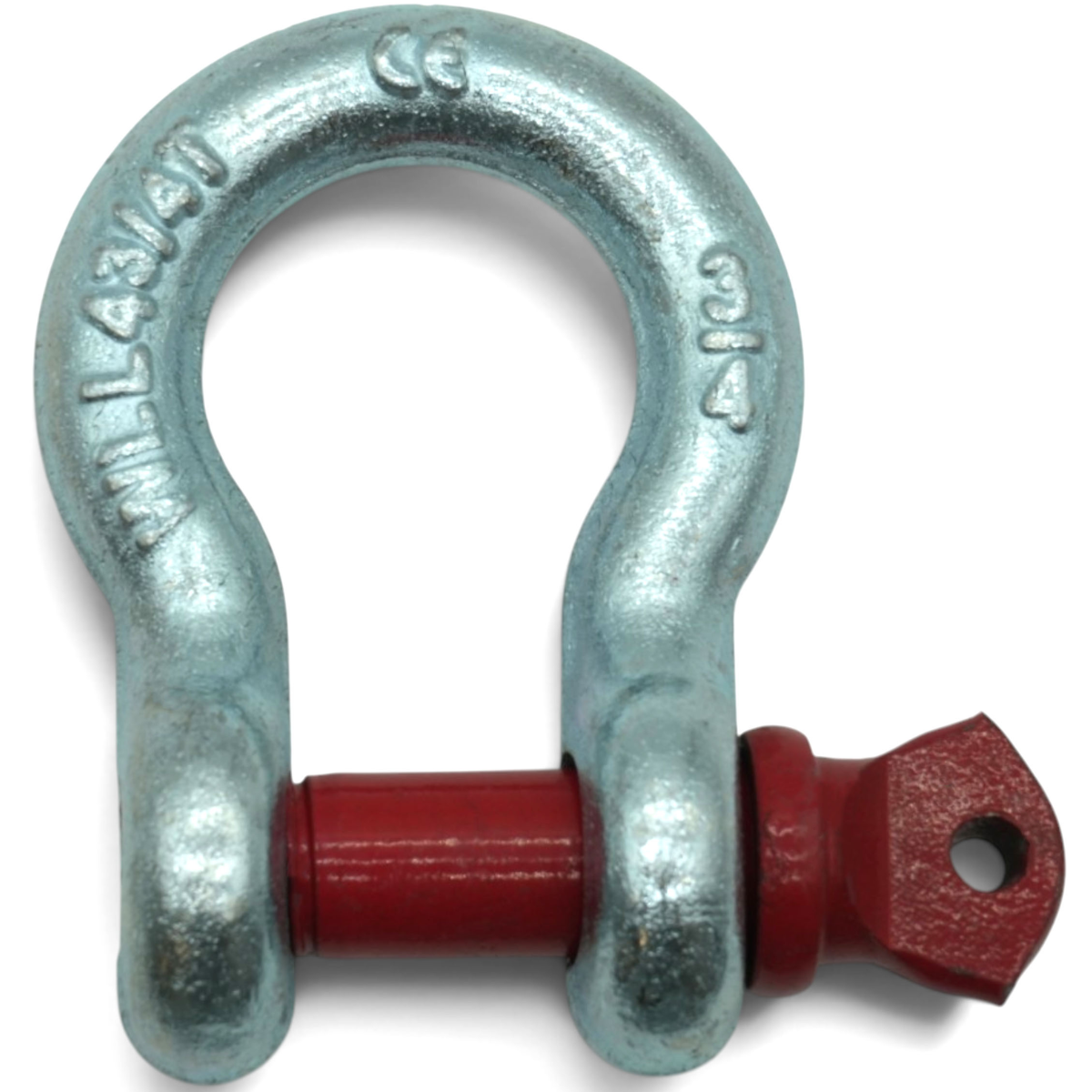

Galvanized Screw Pin Anchor Shackle

The ProX XT USHACKLE075 is a heavy-duty galvanized steel anchor shackle designed for professional stage, truss, and lifting applications. Its 3-ton working load limit, 6:1 safety factor, and removable screw pin provide a strong and practical connection for truss hardware, lifting slings, roofing systems, and suspended video equipment.

ProX XT USHACKLE075 Competitive Differences

  • 3.00-ton working load limit for demanding professional rigging applications
  • 6:1 safety factor supports operation within tested and rated load parameters
  • Galvanized steel construction provides corrosion resistance and long-term durability
  • Screw pin design enables secure attachment and removal without separate tools
  • Compatible with nylon and polyester lifting slings used in live production environments

ProX XT USHACKLE075 Description

The ProX XT USHACKLE075 is constructed from galvanized steel to withstand repeated use in touring, staging, and installed production environments. The protective galvanized finish helps resist corrosion, while the heavy-duty body provides the structural integrity required for rated rigging applications.

The 3/4-inch shackle body is equipped with a 5/8-inch removable screw pin. This configuration creates a secure connection while allowing production crews to install or remove the shackle without a separate fastening tool. Once properly tightened, the screw pin provides a dependable connection point for compatible rigging hardware.

With a 3.00-ton working load limit and a 6:1 safety factor, this anchor shackle is suited for professional trussing systems, stage roofing structures, suspended video walls, and lifting sling connections. When used with an appropriate sling, the rounded anchor shape can also help reduce concentrated wear on sling eyes compared with direct attachment to some hook designs.

This shackle is intended for qualified riggers, production companies, touring crews, venues, and installation professionals. All rigging components must be inspected before use and operated within their marked working load limits by properly trained personnel.

XT USHACKLE075 Features

  • Heavy-duty anchor-style U shackle
  • Galvanized steel construction
  • Corrosion-resistant finish
  • 3.00-ton working load limit
  • 6:1 safety factor
  • 3/4-inch shackle size
  • 5/8-inch removable screw pin
  • Tool-free screw pin installation and removal
  • Compatible with nylon lifting slings
  • Compatible with polyester lifting slings
  • Suitable for stage truss and roofing structures
  • Suitable for suspended video wall applications
  • Helps protect compatible sling eyes from concentrated hook wear

XT USHACKLE075 Specifications

  • Product Type: Galvanized screw pin anchor shackle
  • Shackle Size: 3/4 in
  • Pin Size: 5/8 in
  • Working Load Limit: 3.00 tons
  • Safety Factor: 6:1
  • Material: Galvanized steel
  • Inside Height: 2.38 in
  • Inside Width: 1.69 in
  • Mouth Width: 1.06 in
  • Weight: 0.66 lb (0.30 kg)

What's In The Box

  • ProX XT USHACKLE075 galvanized anchor shackle
  • 5/8-inch screw pin
