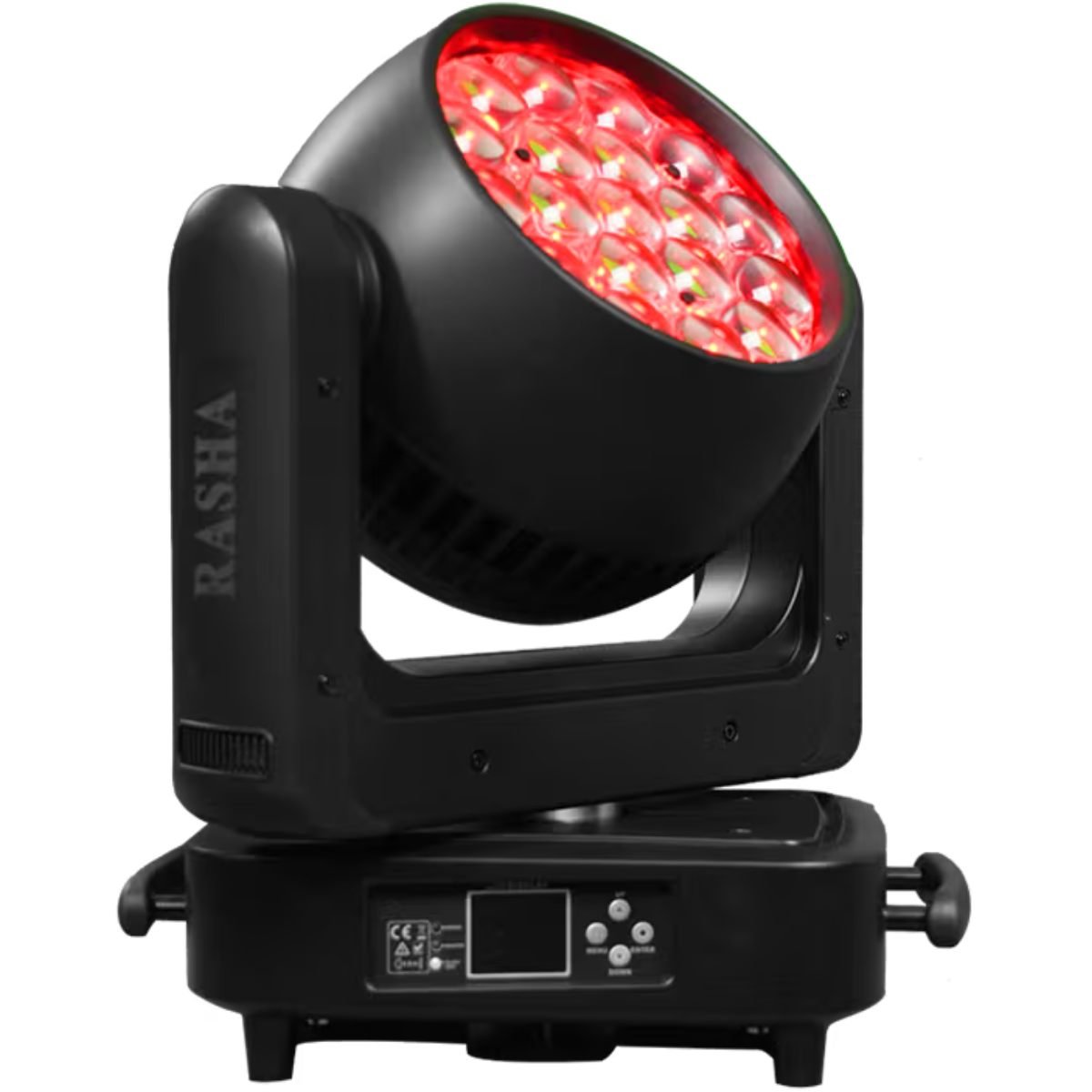

RASHA RP-K2-BLK
(Rasha RPK2BLK)
Moving Head Wash
Rasha K2 is a high-output RGBW moving head wash fixture designed for stages, venues, tours, broadcasts, houses of worship, and production environments. With 19 x 25W RGBW LEDs, 10,000 lumens of fixture output, motorized 10°–60° zoom, and independent 3-ring pixel control, it delivers powerful wash coverage and layered visual effects from a compact fixture.
Rasha K2 Competitive Differences
- 19 x 25W RGBW LEDs deliver 10,000 lumens of fixture output
- Motorized 10°–60° zoom provides a 6:1 range from tight beam to wide wash
- 3-ring pixel-mappable LED control creates layered concentric circle effects
- DMX and RDM support with 10Ch, 15Ch, 21Ch, 37Ch, and 39Ch DMX modes
- 16-bit pan/tilt movement with electronic self-correction for smooth, accurate positioning
Rasha K2 Description
The Rasha K2 is built for lighting designers, production companies, venues, DJs, and installers who need a versatile wash fixture with strong output and flexible effects. Its 19 RGBW LEDs produce a bright, clean wash, while full RGBW color mixing and built-in macros make it easy to create vibrant stage looks quickly.
A motorized 10°–60° zoom gives the fixture fast control over beam shape, from narrow aerial effects to wide stage coverage. The 3-ring pixel control system allows independent control of concentric LED zones, adding depth, motion, and layered looks without requiring extra fixtures.
For professional control, the K2 supports DMX and RDM, along with multiple DMX channel modes for simple or detailed programming. 16-bit pan and tilt resolution, 540° pan, 270° tilt, electronic position correction, move-in-black presets, electronic strobe, dimmer curves, and virtual color temperature control give programmers a wide range of creative options.
The Rasha K2 is designed for reliable use in demanding environments, with active temperature-controlled fans, PowerCON input and output, 3-pin and 5-pin XLR data connections, built-in handles, a reversible LCD menu display, and foldable quick-trigger clamp hardware. Its compact black housing is suitable for touring rigs, permanent installs, mobile events, and broadcast setups.
K2 Features
- Moving head RGBW wash fixture
- 19 x 25W RGBW LEDs
- 10,000-lumen fixture output
- Motorized 10°–60° zoom
- 6:1 optical zoom range
- 3-ring pixel-mappable LED control
- Full RGBW color mixing
- Over 1.5 million usable colors
- DMX and RDM control support
- DMX, Auto, and Sound run modes
- 10Ch, 15Ch, 21Ch, 37Ch, and 39Ch DMX modes
- 16-bit pan and tilt movement
- 540° pan range
- 270° tilt range
- Electronic position self-correction
- High-precision 3-phase stepper motors
- Electronic shutter and strobe from 0–20Hz
- 16-bit dimming resolution
- 4 dimmer curves
- 4 built-in pattern macros with variable speeds
- 13 DMX color macros and 5 CCT macros
- Virtual color temperature range from 2000K–8000K
- 4 auto-run programs with adjustable speed
- 1 sound program
- Move-in-black presets
- Active temperature-controlled fan cooling
- PowerCON input and output connections
- 3-pin and 5-pin XLR input and output connections
- 180° reversible LCD menu display
- 4-button menu interface
- Built-in handles
- Rubber feet for free-standing use
- Includes foldable quick-trigger clamp hardware
K2 Specifications
- Model: K2
- Ordering Information: RP-K2-BLK
- Product Type: Moving head wash fixture
- Light Source: 19 x 25W RGBW LEDs
- LED Life Expectancy: 50,000 hours
- Fixture Luminous Output: 10,000 lumens
- Light Engine Luminous Output: 9,000 lumens
- Zoom: Motorized, 10°–60°
- Zoom Ratio: 6:1
- Front Lens Diameter: 9.44 in (240 mm)
- Illuminance Narrow Zoom: 9,318 lux @ 5 m
- Illuminance Wide Zoom: 1,216 lux @ 5 m
- LED Refresh Rate: 3,600Hz
- Color Temperature at Full: 15,500K
- CCT: 6,300K +/-250K
- CRI: Greater than 70
- CQS: Greater than 67
- TM-30 Rf: Greater than 65
- TM-30 Rg: Greater than 96
- TLCI: Greater than 45
- Dimming Resolution: 16-bit
- Pan Range: 540°
- Tilt Range: 270°
- Pan/Tilt Resolution: 16-bit
- Position Correction: Electronic self-correct
- Shutter/Strobe: Electronic, 0–20Hz
- Dimmer Curves: 4
- Built-In Pattern Macros: 4 with variable speeds
- Virtual Color Temperature Range: 2000K–8000K
- DMX Color Macros: 13 color macros, 5 CCT
- Pixel-Mappable LEDs: 3-ring control
- Built-In Auto Programs: 4 auto-run programs with adjustable speed
- Built-In Sound Programs: 1 sound program
- Run Modes: DMX, Auto, Sound
- Control Protocol: DMX, RDM
- DMX Modes: 10Ch, 15Ch, 21Ch, 37Ch, 39Ch
- Power Connections: PowerCON input and output
- Data Connections: 3-pin and 5-pin XLR input and output
- Input Voltage: 100–240VAC, 50/60Hz auto-ranging
- Maximum Power Consumption: 530W, 4.4A @ 120V, 60Hz
- Maximum Power Consumption: 530W, 2.6A @ 208V, 60Hz
- Idle Power Consumption: 50W, 0.40A @ 120V, 60Hz
- Idle Power Consumption: 50W, 0.24A @ 208V, 60Hz
- Power Factor: Greater than or equal to 0.95
- Breaker Recommendation: 20A MCB
- Power Button: No mechanical power switch
- Cooling System: Active, temperature-controlled fans
- Operating Temperature: 5°F to 104°F (-15°C to 40°C)
- Maximum Surface Temperature: 167°F (75°C), steady state at 40°C ambient
- Maximum Total Heat Dissipation: 2,920 BTU/hr, calculated +/-10%
- Housing: Flame-retardant plastic
- Housing Color: Black
- Housing Finish: Satin
- Handles: Built-in handles
- Pan/Tilt Lock Mechanism: None
- Base Type: Rubber feet, free-standing
- Menu Display: 180° reversible LCD menu display
- Button Interface: 4-button menu
- Rigging Points: 2 foldable quick-trigger clamps
- Install Orientation: Any
- IP Rating: IP20
- DMX Compliance: USITT DMX512
- RDM Compliance: ANSI/ESTA E1.20
- US EMC: FCC Part 15 Class A
- CE Compliance: Self-declared CE compliance based on LVD, EMC, and RoHS standards
- EU Safety: EN 60598-2-17, EN 62471
- EU EMC: EN 55015, EN 55103-1
- EU Environmental: RoHS 2011/65/EU
- Dimensions: 13.77 x 10.03 x 15.74 in (350 x 255 x 400 mm)
- Weight: 20.5 lb (9.3 kg)
What's In The Box
- Rasha K2 fixture
- 2 base plates with foldable quick-trigger clamps
- Edison to PowerCON power cable
- 3-pin XLR DMX cable
- Manual
