RCF RCF ART 812A PACKAGE
(RCF RCF-ART-812A-PACKAGE)
Powered PA Speaker Package
The RCF ART 812A powered speaker package combines a matched pair of 12-inch active PA speakers with protective covers, adjustable tripod stands, and balanced XLR cables for a complete portable stereo sound system. Designed for DJs, musicians, live bands, event production, venues, and mobile sound applications, the package provides the primary equipment needed to position, protect, connect, and operate a high-output left-and-right PA system.
RCF ART 812A Package Competitive Differences
- Includes two RCF ART 812A 12-inch powered speakers for complete stereo PA coverage
- 129dB maximum SPL per speaker with 1400W peak Class D bi-amplification
- FiRPHASE and Bass Motion Control processing support clear, controlled full-range reproduction
- XBOOST low-frequency enhancement adds extra bass depth and impact when needed
- True Resistive Waveguide provides consistent 100° x 60° coverage
- Includes two RCF CVR ART 912 padded protective covers
- Includes two ProX adjustable tripod speaker stands with double carry bag
- Includes two SquareCable XLR-25 25-foot balanced XLR cables for stereo signal connections
RCF ART 812A Package Description
The RCF ART 812A is a portable 2-way active loudspeaker designed to deliver strong output, clear vocal reproduction, and dependable full-range performance in a manageable 12-inch enclosure. Each speaker combines a 12-inch woofer with a 2.5-inch voice coil and a 1-inch compression driver with a 1.75-inch voice coil, producing up to 129dB SPL with a frequency response of 50Hz to 20kHz.
Each ART 812A uses a 1400W peak two-channel Class D amplifier, delivering 1000W peak power to the low-frequency section and 400W peak power to the high-frequency section. FiRPHASE processing supports coherent reproduction and accurate imaging, while Bass Motion Control helps manage low-frequency behavior. XBOOST provides additional low-end enhancement when more bass impact is desired, and RCF's True Resistive Waveguide maintains consistent 100° horizontal by 60° vertical dispersion throughout the listening area.
The reinforced polypropylene composite enclosure features internal M-Brace reinforcement for increased rigidity and reduced unwanted resonance. A heavy-duty steel grille protects the transducers, while top and side handles simplify transportation. Three M10 mounting points and a 35 mm pole socket provide multiple installation and deployment options.
This package adds two RCF CVR ART 912 protective covers for transport and storage. Each padded cover uses heavy-duty polyester outer fabric, 10 mm foam padding, zip and Velcro closures, and access openings for handles, connections, and the pole mount area.
A ProX TSS18P stand set provides two adjustable speaker tripod stands capable of supporting up to 100 lb per stand. Each stand adjusts from 44 to 72 inches and uses a standard 1-3/8-inch (35 mm) upper shaft. The included double carry bag keeps both stands together during transportation and storage.
Two SquareCable XLR-25 cables complete the signal path. Each 25-foot XLR male-to-XLR female balanced audio cable uses 20 AWG x 2 oxygen-free copper conductors, a 93% braided OFC compact shield, gold-plated contacts, and a bend- and twist-resistant cable design for microphone and balanced line-level connections.
ART 812A Package Features
- Complete dual powered speaker package for stereo PA applications
- 2 x RCF ART 812A 12-inch powered PA speakers
- 129dB maximum SPL per speaker at 1 meter
- 1400W peak Class D bi-amplification per speaker
- 1000W peak low-frequency amplifier power per speaker
- 400W peak high-frequency amplifier power per speaker
- 12-inch woofer with 2.5-inch voice coil
- 1-inch compression driver with 1.75-inch voice coil
- FiRPHASE digital processing
- Bass Motion Control processing
- XBOOST low-frequency enhancement
- True Resistive Waveguide
- 100° x 60° speaker coverage pattern
- Reinforced polypropylene composite speaker cabinets with internal M-Brace construction
- Heavy-duty steel speaker grilles
- 35 mm speaker pole mount inserts
- 3 x M10 mounting points per speaker
- 2 x RCF CVR ART 912 padded protective covers
- 10 mm foam padding in each RCF cover
- Zip and Velcro cover closures with access openings
- 2 x ProX heavy-duty adjustable speaker tripod stands
- 100 lb load capacity per ProX stand
- 44 to 72-inch adjustable stand height
- 1-3/8-inch (35 mm) upper stand shafts
- Double speaker stand carry bag included
- 2 x SquareCable XLR-25 25-foot balanced XLR cables
- 20 AWG x 2 oxygen-free copper cable conductors
- 93% braided OFC compact cable shielding
- Gold-plated XLR contacts
ART 812A Speaker Specifications
- Speaker Quantity: 2
- System Type: Powered PA Speaker
- Configuration: 2-way active
- Frequency Response: 50Hz - 20kHz
- Max SPL: 129dB @ 1m
- Horizontal Coverage Angle: 100°
- Vertical Coverage Angle: 60°
- Compression Driver: 1 x 1.0 in, 1.75 in voice coil
- Woofer: 12 in, 2.5 in voice coil
- Input Signal: Balanced / unbalanced
- Input Connectors: XLR, jack
- Output Connector: XLR
- Input Sensitivity: -2dBu / +4dBu
- Microphone Input Sensitivity: -32dBu
- Crossover Frequency: 1600Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Controls: Volume, Boost, MIC/Line
- Total Power: 1400W peak per speaker
- High-Frequency Power: 400W peak per speaker
- Low-Frequency Power: 1000W peak per speaker
- Cooling: Convection
- Power Connection: VDE
- RCF Technology: FiRPHASE, BMC, XBOOST
- Safety Agency: CE compliant
- Cabinet Material: Polypropylene composite
- Hardware: 3 x M10, 1 on top and 1 each side
- Handles: 1 on top, 1 each side
- Pole Mount: 35 mm insert
- Grille: Steel
- Color: Black
- Height: 25.00 in (634.9 mm)
- Width: 14.56 in (369.9 mm)
- Depth: 14.30 in (363.2 mm)
- Weight: 41.89 lb (19 kg) per speaker
- Part Number 100-120V: 13000995
- EAN Code: 8024530025144
CVR ART 912 Cover Specifications
- Cover Quantity: 2
- Type: Padded protective speaker cover
- Outer Fabric: 600D polyester on PVC base
- Internal Fabric: 190 T taffeta fabric on PVC base
- Padding: 10 mm foam rubber
- Closure: Zip and Velcro
- Protection: Scratches and hits
- Color: Black
- Weight: 2.2 lb (1 kg) per cover
- Part Number: 13360474
- EAN Code: 8024530018849
ProX TSS18P Stand Specifications
- Stand Quantity: 2
- Load Capacity: 100 lb (45.4 kg) per stand
- Height Range: 44 to 72 in (1118 to 1829 mm)
- Upper Shaft Diameter: 1-3/8 in (35 mm)
- Base Spread: 32 to 48 in (813 to 1219 mm)
- Construction: Steel and aluminum with all-metal joints
- Finish: Black powder coat
- Individual Stand Weight: 6 lb (2.7 kg)
- Total Stand Set Weight: 12 lb (5.4 kg)
- Shipping Box Dimensions: 40 x 5.5 x 11 in (1016 x 140 x 279 mm)
- Shipping Weight: 14 lb (6.4 kg)
- UPC: 654367296400
SquareCable XLR-25 Cable Specifications
- Cable Quantity: 2
- Cable Length: 25 ft (7.62 m) each
- Connector Type: XLR Male to XLR Female
- Signal Type: Balanced microphone / line audio
- Conductors: 20 AWG x 2 oxygen-free copper
- Shielding: 93% braided OFC compact shield
- Contacts: Gold plated
- Construction: Bend- and twist-resistant cable

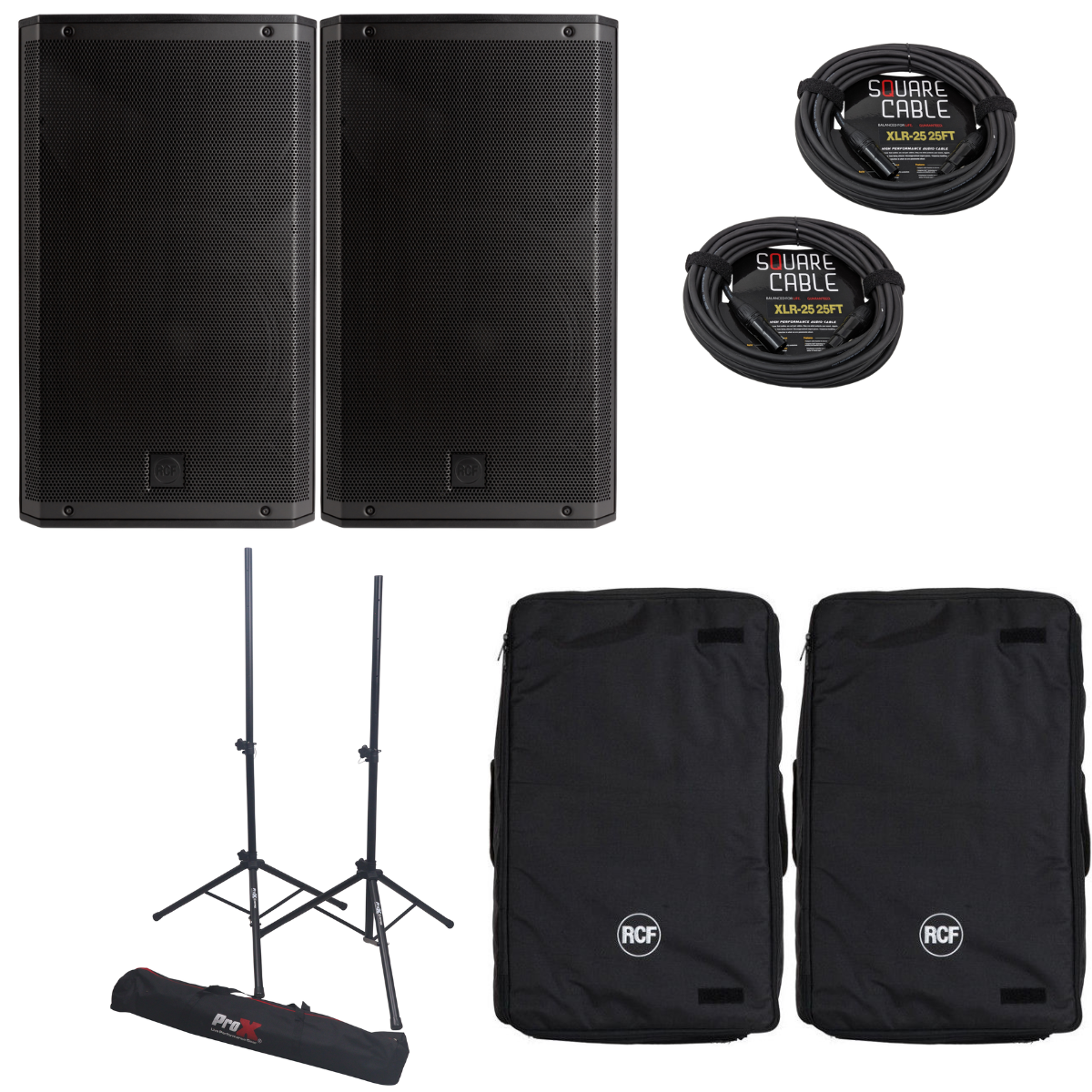

What's In The Box
- 2 x RCF ART 812A 12-inch powered PA speakers
- 2 x RCF CVR ART 912 padded protective covers
- 2 x ProX heavy-duty adjustable speaker tripod stands
- 1 x ProX double speaker stand carry bag
- 2 x SquareCable XLR-25 25-foot XLR male-to-female audio cables
