RCF ART 815A PACKAGE
(RCF ART-815A-PACKAGE)
Powered PA Speaker Package
The RCF ART 815A powered speaker package combines two 15-inch active PA speakers with padded protective covers, heavy-duty tripod stands, and balanced XLR cables for a complete portable stereo sound system. Designed for DJs, musicians, live bands, venues, event production, and installed applications, this package provides strong full-range output, flexible positioning, transport protection, and essential signal cabling in one system.
RCF ART 815A Package Competitive Differences
- Includes two RCF ART 815A 15-inch powered speakers for complete left-and-right PA coverage
- 130dB maximum SPL per speaker for strong full-range output
- 1400W peak Class D bi-amplification per speaker with 1000W LF and 400W HF power
- FiRPHASE processing supports phase-coherent sound, clarity, and imaging
- XBOOST low-frequency enhancement adds additional bass depth and impact when needed
- True Resistive Waveguide provides consistent 100° x 60° coverage
- Includes two padded RCF CVR ART 915 protective covers
- Includes ProX T-SS18P dual heavy-duty speaker stand set with carry bag
- Includes two SquareCable XLR-25 25-foot balanced XLR cables
RCF ART 815A Package Description
The RCF ART 815A is a portable 2-way active speaker built for users who need professional sound, strong output, and substantial low-frequency performance from a single cabinet. Each speaker combines a 15-inch woofer with a 2.5-inch voice coil and a 1-inch compression driver with a 1.75-inch voice coil, delivering full-range performance for DJs, musicians, live events, rehearsal spaces, venues, and installed audio systems.
Each ART 815A uses a 1400W peak two-channel Class D amplifier with 1000W peak power dedicated to the low-frequency section and 400W peak power for the high-frequency section. With a maximum SPL of 130dB and a frequency response of 45Hz to 20kHz, the system is well suited for music playback, vocal reinforcement, stage monitoring, and full-range PA applications where additional low-frequency presence is useful.
RCF FiRPHASE processing is designed to improve sound coherence, clarity, and imaging while maintaining low system latency. XBOOST low-frequency enhancement adds extra depth and impact when desired, while the True Resistive Waveguide provides consistent 100° horizontal by 60° vertical coverage across the listening area.
The reinforced polypropylene composite enclosure uses internal M-Brace reinforcement to increase cabinet rigidity and reduce unwanted vibration at high output levels. A heavy-duty steel grille protects the transducers, while one top handle and two side handles simplify transport. A 35 mm pole mount and three M10 mounting points provide flexible setup options for portable, pole-mounted, wall, truss, and supported flown applications.
Two RCF CVR ART 915 protective covers are included to help protect the speakers during transportation and storage. Each cover uses 600D polyester fabric over a PVC base, an internal 190T taffeta layer, and 10 mm foam rubber padding. Zip and Velcro openings provide convenient access to the speaker handles, rear connection panel, pole mount, and front of the cabinet.
The ProX T-SS18P stand set includes two matching adjustable speaker tripod stands and a double carry bag. Each stand supports up to 100 lb and adjusts from 44 to 72 inches in height, while the standard 1-3/8-inch (35 mm) upper shaft fits the ART 815A pole mount.
Two SquareCable XLR-25 cables complete the package for balanced audio signal connections. Each 25-foot XLR male-to-XLR female cable uses 20 AWG x 2 oxygen-free copper conductors, 93% braided OFC copper shielding, gold-plated contacts, and bend- and twist-resistant construction for dependable microphone and line-level signal transfer.
ART 815A Package Features
- Complete stereo powered PA speaker package
- 2 x RCF ART 815A 15-inch powered PA speakers
- 130dB maximum SPL per speaker at 1 meter
- 1400W peak Class D bi-amplification per speaker
- 1000W peak low-frequency amplifier power per speaker
- 400W peak high-frequency amplifier power per speaker
- 15-inch woofer with 2.5-inch voice coil
- 1-inch compression driver with 1.75-inch voice coil
- FiRPHASE digital processing for phase-coherent sound
- XBOOST low-frequency enhancement
- True Resistive Waveguide for consistent coverage
- 100° x 60° coverage pattern
- Volume, Boost, and MIC/Line controls
- Balanced and unbalanced input support
- XLR and jack input connectors
- XLR output connector
- Thermal and RMS protection
- Soft limiter processing
- Convection cooling
- Reinforced polypropylene composite cabinets
- Internal M-Brace reinforcement
- Heavy-duty steel grilles
- One top handle and one handle on each side per speaker
- 35 mm pole mount inserts
- 3 x M10 mounting points per speaker
- 2 x RCF CVR ART 915 padded protective covers
- 600D polyester cover outer fabric on PVC base
- 10 mm foam rubber cover padding
- Zip and Velcro cover openings
- ProX T-SS18P set with two adjustable speaker tripod stands
- 100 lb load capacity per ProX stand
- 44 to 72-inch adjustable stand height
- 1-3/8-inch (35 mm) upper stand shafts
- Double speaker stand carry bag included
- 2 x SquareCable XLR-25 25-foot balanced XLR cables
- 20 AWG x 2 oxygen-free copper cable conductors
- 93% braided OFC copper shielding
- Gold-plated XLR contacts
ART 815A Speaker Specifications
- Speaker Quantity: 2
- System Type: Powered PA Speaker
- Configuration: 2-way active
- Frequency Response: 45Hz - 20kHz
- Max SPL: 130dB @ 1m
- Horizontal Coverage Angle: 100°
- Vertical Coverage Angle: 60°
- Compression Driver: 1 x 1.0 in, 1.75 in voice coil
- Woofer: 15 in, 2.5 in voice coil
- Input Signal: Balanced / unbalanced
- Input Connectors: XLR, jack
- Output Connector: XLR
- Input Sensitivity: -2dBu / +4dBu
- Microphone Input Sensitivity: -32dBu
- Crossover Frequency: 1600Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Controls: Volume, Boost, MIC/Line
- Total Power: 1400W peak per speaker
- High-Frequency Power: 400W peak per speaker
- Low-Frequency Power: 1000W peak per speaker
- Cooling: Convection
- Power Connection: VDE
- RCF Technology: FiRPHASE, XBOOST
- Safety Agency: CE compliant
- Cabinet Material: Polypropylene composite
- Hardware: 3 x M10, 1 on top and 1 each side
- Handles: 1 on top, 1 each side
- Pole Mount: 35 mm insert
- Grille: Steel
- Color: Black
- Height: 27.95 in (709.9 mm)
- Width: 16.33 in (414.9 mm)
- Depth: 16.15 in (410.2 mm)
- Weight: 49.38 lb (22.4 kg) per speaker
- Part Number 100-120V: 13000996
- EAN Code: 8024530025151
CVR ART 915 Cover Specifications
- Cover Quantity: 2
- Type: Padded protective speaker cover
- Designed For: RCF ART 9 Series 15-inch speakers
- Outer Fabric: 600D polyester on PVC base
- Inner Fabric: 190T taffeta on PVC base
- Padding: 10 mm foam rubber
- Closures: Zip and Velcro
- Access: Handles, rear panel, pole mount, and front flap
- Protection: Scratches, impacts, and weather exposure
- Material: Nylon
- Color: Black
- Weight: 3.77 lb (1.71 kg) per cover
- Shipping Dimensions: 3.94 x 29.72 x 19.69 in (100 x 755 x 500 mm)
- Shipping Weight: 5.25 lb (2.38 kg)
- Standards: CE compliant
ProX T-SS18P Stand Specifications
- Stand Quantity: 2
- Load Capacity: 100 lb (45.4 kg) per stand
- Height Range: 44 to 72 in (1118 to 1829 mm)
- Upper Shaft Diameter: 1-3/8 in (35 mm)
- Base Spread: 32 to 48 in (813 to 1219 mm)
- Construction: Steel and aluminum with all-metal joints
- Finish: Black powder coat
- Individual Stand Weight: 6 lb (2.7 kg)
- Total Product Weight: 12 lb (5.4 kg)
- Shipping Box Dimensions: 40 x 5.5 x 11 in (1016 x 140 x 279 mm)
- Shipping Weight: 14 lb (6.4 kg)
- UPC: 654367296400
SquareCable XLR-25 Cable Specifications
- Cable Quantity: 2
- Cable Length: 25 ft (7.62 m) each
- Connector Type: XLR Male to XLR Female
- Signal Type: Balanced microphone / line audio
- Conductors: 20 AWG x 2 oxygen-free copper
- Shielding: 93% braided OFC copper compact shield
- Contacts: Gold plated
- Construction: Bend- and twist-resistant cable
- Warranty: Lifetime guarantee

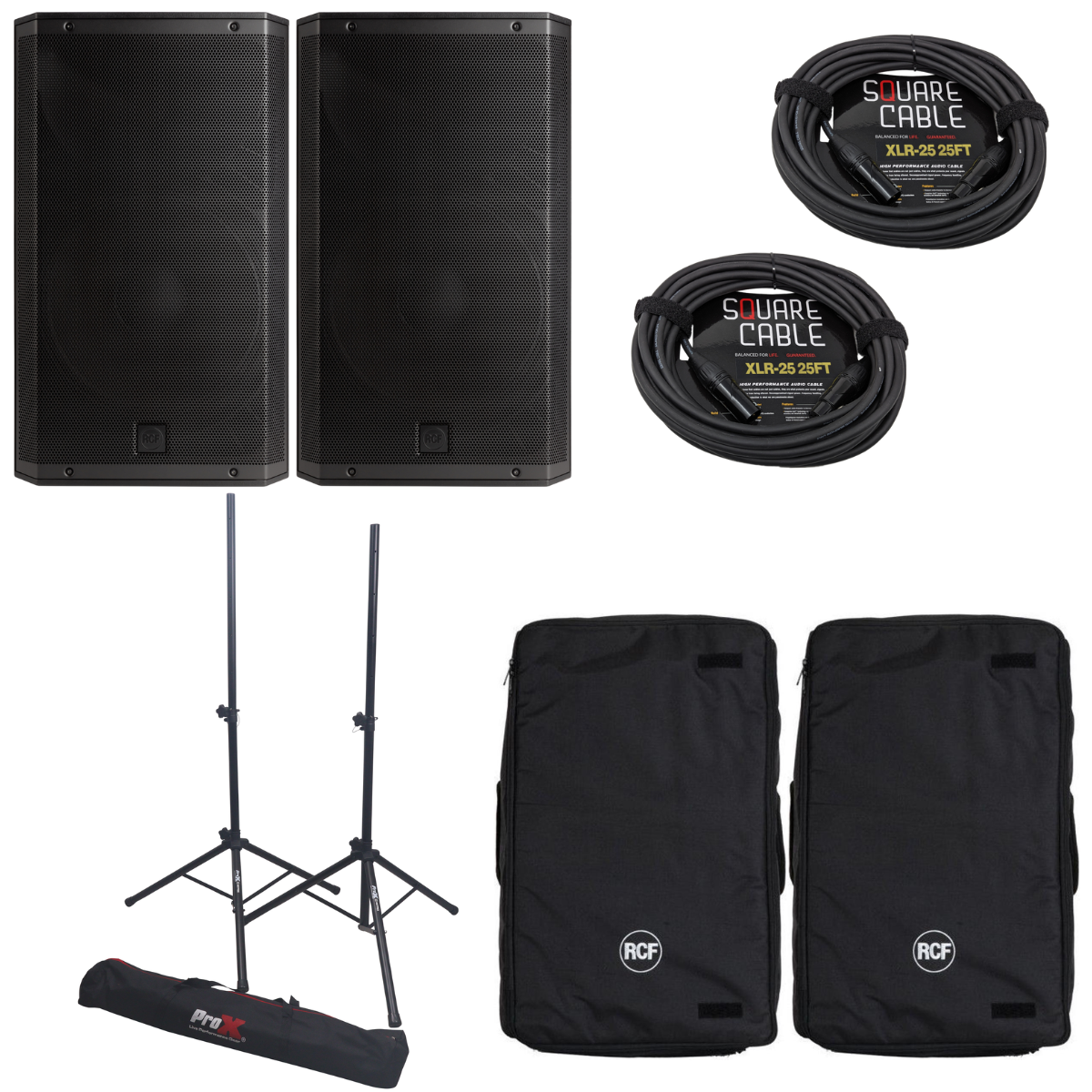

What's In The Box
- 2 x RCF ART 815A 15-inch powered PA speakers
- 2 x RCF CVR ART 915 padded protective covers
- 2 x ProX T-SS18P heavy-duty adjustable speaker tripod stands
- 1 x ProX double speaker stand carry bag
- 2 x SquareCable XLR-25 25-foot XLR male-to-female audio cables
