RCF USA ART-912A-BT
(RCF ART-912-AX)
12-Inch Powered PA Speaker with Digital Mixer

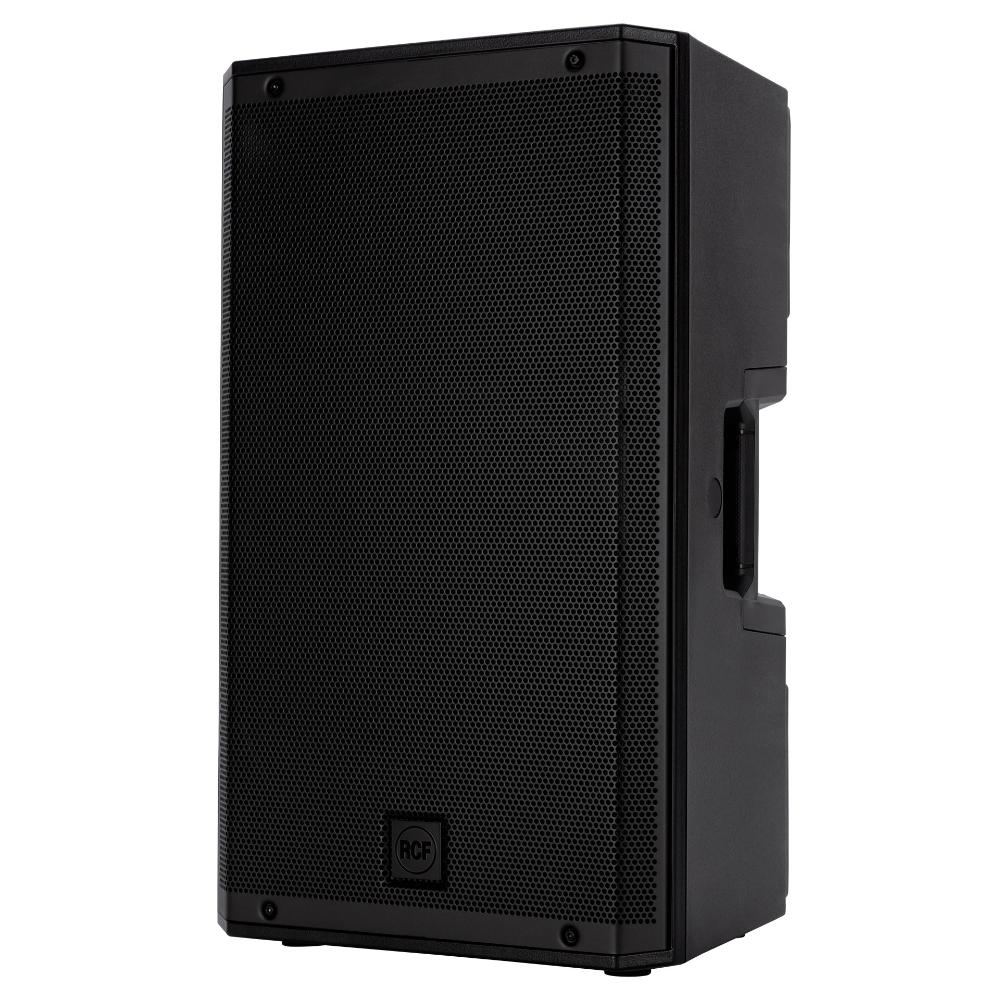

The RCF ART 912AX is a 12-inch powered PA speaker featuring a built-in 6-channel digital mixer, Bluetooth stereo audio streaming, and advanced DSP processing for live sound, mobile DJs, musicians, and event productions. Combining a 12-inch woofer, 1.75-inch compression driver voice coil, and 2100W peak Class-D bi-amplification, it delivers up to 130dB maximum SPL with a 50Hz-20kHz frequency response and 100° x 60° coverage. With dual mic/line inputs featuring 48V phantom power, a full-color touchscreen, wireless app control, and RCF's FiRPHASE and Bass Motion Control technologies, the ART 912AX provides powerful sound reproduction and flexible mixing capabilities in a portable enclosure.
RCF ART 912AX Competitive Differences
- Built-In 6-Channel Digital Mixer: Integrated digital mixing provides flexible control over microphones, line-level instruments, auxiliary sources, and Bluetooth stereo audio without requiring a separate external mixer for smaller setups.
- 2100W Class-D Bi-Amplification: Delivers 2100W peak power with dedicated 1400W low-frequency and 700W high-frequency amplifier sections for dynamic sound reproduction.
- 130dB Maximum SPL: Produces powerful sound output suitable for live performances, DJ events, presentations, and professional sound reinforcement.
- Dual Microphone Preamps with 48V Phantom Power: Two combo XLR/TRS inputs accommodate microphones and line-level sources, with individually switchable phantom power for compatible condenser microphones.
- Bluetooth Stereo Streaming and Speaker Pairing: Class 1 Bluetooth connectivity supports stereo audio playback and wireless pairing with compatible ART 9 AX speakers for stereo or dual-mono operation.
- Advanced Touchscreen Mixer Control: A 2.4-inch color touchscreen and rotary encoder provide access to channel levels, EQ, effects, routing, and system configuration, with additional remote control through a dedicated iOS and Android app.
- FiRPHASE and Bass Motion Control: RCF's proprietary DSP technologies optimize phase response, transient accuracy, and low-frequency performance while maintaining controlled woofer movement.
- True Resistive Waveguide: Provides consistent 100° horizontal and 60° vertical coverage for even sound distribution throughout the listening area.
- Built-In EQ, Compression, and Effects: Includes channel EQ, compressors on mic/line channels 1 and 2, reverb, ducking, and advanced output processing for flexible sound shaping.
- Flexible Output Routing: Configurable XLR output supports mix output, subwoofer crossover output, stereo output, and channel 1 link operation.
- Reinforced Composite Cabinet: Polypropylene composite enclosure with M-brace internal reinforcement provides structural rigidity while remaining practical for portable operation and installation.
- Multiple Mounting Options: Integrated 35mm pole socket and three M10 rigging points support speaker stands and compatible flown, wall, or truss mounting hardware.
RCF ART 912AX Description
The RCF ART 912AX combines the acoustic performance of the ART 9 Series with integrated digital mixing and wireless connectivity. Its 12-inch woofer with a 2.5-inch voice coil delivers controlled low-frequency performance, while the high-frequency compression driver features a 1-inch exit and 1.75-inch voice coil for clear vocal and instrument reproduction. A 2100W peak Class-D bi-amplifier provides dedicated power to the low- and high-frequency sections, producing up to 130dB maximum SPL. The True Resistive Waveguide delivers consistent 100° x 60° coverage, making the speaker suitable for live music, mobile DJ performances, corporate events, and sound reinforcement installations.
The integrated 6-channel digital mixer provides extensive connectivity and sound control directly from the speaker. Two balanced combo XLR/TRS inputs support microphones and line-level sources, with independently switchable 48V phantom power for condenser microphones. A 3.5mm stereo auxiliary input accommodates portable audio devices, while Bluetooth connectivity enables wireless stereo playback. The mixer includes input gain adjustment, 3-band channel EQ, compressors on the first two mic/line channels, reverb, and ducking functions. For more detailed system tuning, a 5-band output EQ, configurable high-pass filtering, crossover presets, and output delay provide additional flexibility.
RCF's FiRPHASE and Bass Motion Control technologies help maintain clarity and consistent performance across the speaker's operating range. FiRPHASE uses advanced FIR filtering to optimize phase response and improve the accuracy of reproduced transients, while Bass Motion Control manages woofer excursion to support controlled bass reproduction. The speaker also includes thermal and RMS protection circuits with a soft limiter to help maintain reliable operation. Its 32-bit A/D and D/A conversion at 48kHz, combined with 24-bit digital signal processing, supports detailed audio reproduction and flexible internal signal management.
For convenient operation, the ART 912AX features a 2.4-inch capacitive color touchscreen and dedicated rotary encoder for navigating mixer settings, adjusting volume, configuring effects, and managing speaker functions. A dedicated app for iOS and Android provides remote control, allowing users to adjust settings from a compatible mobile device. Class 1 Bluetooth audio streaming also supports wireless pairing with another compatible ART 9 AX speaker for stereo or dual-mono playback. The configurable XLR output can function as a main mix output, crossover output for compatible subwoofers, stereo output, or channel 1 link, supporting a variety of sound system configurations.
Designed for portable use and permanent installation, the ART 912AX features a polypropylene composite cabinet reinforced by RCF's internal M-brace structure. A steel front grille protects the transducers, while integrated top and side handles simplify transportation and positioning. The enclosure includes a 35mm pole socket and three M10 rigging points for mounting with compatible accessories. Its combination of powerful amplification, integrated digital mixing, Bluetooth connectivity, and advanced DSP makes the ART 912AX a versatile solution for DJs, live performers, rental companies, event production teams, and professional audio installations.
ART 912AX Features
- 12-inch powered PA speaker with integrated 6-channel digital mixer
- 2100W peak Class-D bi-amplification with 1050W RMS total power
- 1400W peak low-frequency amplifier and 700W peak high-frequency amplifier
- 12-inch woofer with 2.5-inch voice coil
- High-frequency compression driver with 1-inch exit and 1.75-inch voice coil
- 130dB maximum SPL at 1 meter
- 50Hz-20kHz acoustic frequency response
- 100° horizontal and 60° vertical coverage
- RCF True Resistive Waveguide for consistent sound dispersion
- FiRPHASE processing for optimized phase response and transient reproduction
- Bass Motion Control for controlled woofer excursion and low-frequency performance
- Integrated 6-channel digital mixer with advanced DSP
- Two combo XLR/TRS microphone and line inputs
- Independently switchable 48V phantom power on microphone inputs
- Remote-controlled, storable microphone preamp gain settings
- 3.5mm stereo auxiliary line input
- Class 1 Bluetooth stereo audio streaming
- Wireless pairing with compatible ART 9 AX speakers
- Supports stereo and dual-mono Bluetooth speaker configurations
- 2.4-inch capacitive color touchscreen with rotary control encoder
- Dedicated iOS and Android app for remote mixer and speaker control
- Quick setup modes for simplified system configuration
- 3-band input EQ with high and low shelving and midrange peaking filters
- Input compressors on microphone/line channels 1 and 2
- Built-in reverb and ducking functions
- 5-band output EQ with four parametric bands and one high-shelving band
- Adjustable high-pass filtering for speaker and output processing
- Internal crossover with RCF subwoofer presets
- Output delay adjustment for system alignment
- Configurable XLR output for mix, crossover, stereo, or channel 1 link operation
- 24-bit digital signal processing
- 32-bit A/D and D/A conversion at 48kHz
- Thermal and RMS protection with soft limiter
- Convection cooling without an internal cooling fan
- Polypropylene composite cabinet with M-brace internal reinforcement
- Protective steel front grille
- Integrated top and side carrying handles
- 35mm pole-mount socket for speaker stands
- Three M10 mounting points for compatible installation hardware
- Suitable for live sound, mobile DJs, musicians, presentations, and event production
ART 912AX Specifications
- Product Type: 12-Inch Powered PA Speaker with Digital Mixer
- Speaker Configuration: 2-Way Active
- Maximum SPL: 130dB @ 1m
- Frequency Response: 50Hz-20kHz
- Horizontal Coverage: 100°
- Vertical Coverage: 60°
- Low-Frequency Driver: 12-Inch Woofer
- Low-Frequency Voice Coil: 2.5 Inches
- High-Frequency Driver: Compression Driver with 1-Inch Exit
- High-Frequency Voice Coil: 1.75 Inches
- Crossover Frequency: 1600Hz
- Amplifier Type: Class-D Bi-Amplification
- Total Power: 2100W Peak / 1050W RMS
- High-Frequency Amplifier: 700W Peak / 350W RMS
- Low-Frequency Amplifier: 1400W Peak / 700W RMS
- Cooling: Convection
- Protection: Thermal and RMS
- Limiter: Soft Limiter
- Integrated Mixer: 6-Channel Digital Mixer
- Signal Processing: 24-Bit
- A/D-D/A Conversion: 32-Bit @ 48kHz
- Processing Dynamic Range: 110dB
- Microphone Inputs: 2
- Microphone Gain Range: 0-42dB
- Microphone Input Impedance: 6 kOhms
- Microphone Input Noise: -114dBu, A-Weighted
- Phantom Power: +48V, Independently Switchable
- Mono Line Inputs: 2
- Mono Line Gain Range: 0-22dB
- Line Input Impedance: 21 kOhms
- Stereo Line Inputs: 1
- Stereo Line Gain Range: 0-10dB
- Stereo Line Input Impedance: 13 kOhms
- Input Connections: 2 x Combo XLR/TRS, 1 x 3.5mm Stereo Mini-Jack
- Output Connection: 1 x Balanced XLR Male
- Main Output Impedance: 150 Ohms
- Maximum Main Output Level: +22dBu
- A/D Dynamic Range: 114dB
- D/A Dynamic Range: 114dB
- THD+N: 0.005%, A-Weighted (20dB Gain, 0dBu Output)
- Input Channel EQ: 3-Band, High/Low Shelving and Mid Peaking
- Output EQ: 5-Band, 4 Parametric and 1 High Shelving
- High-Pass Filter: 24dB/Octave Output Processing
- Input Low-Cut Adjustment: 20-400Hz
- Compressors: Mic/Line Channels 1 and 2
- Internal Effects: Reverb, Ducking, and Send Effects
- Output Routing: Mix Out, Crossover Out, Stereo Out, CH1 Link Out
- Bluetooth: Class 1, Stereo Audio Streaming
- Wireless Speaker Pairing: Supported with Compatible ART 9 AX Speakers
- Control Interface: 2.4-Inch Color Capacitive Touchscreen and Rotary Encoder
- Remote Control: Dedicated App for iOS and Android
- Firmware Service Connection: Micro-USB
- AC Power Connection: VDE / IEC Mains Connection
- Power Versions: 100-120V or 220-240V AC, Depending on Model
- Safety Compliance: CE
- Cabinet Material: Polypropylene Composite
- Cabinet Reinforcement: Internal M-Brace Structure
- Grille: Steel
- Handles: 1 Top, 2 Side
- Pole Mount: 35mm Socket
- Rigging Points: 3 x M10 (1 Top, 1 Each Side)
- Color: Black
- Dimensions (H x W x D): 25.28 x 14.57 x 14.29 in (642 x 370 x 363 mm)
- Weight: 41.23 lb (18.7 kg)
- Package Dimensions (H x W x D): 26.97 x 16.65 x 16.93 in (685 x 423 x 430 mm)
- Package Weight: 48.5 lb (22 kg)
- Manufacturer Part Number (100-120V): 13000709
- Manufacturer Part Number (220-240V): 13000708
- EAN (100-120V): 8024530020200
- EAN (220-240V): 8024530020101
