RCF EVOX J11 PACKAGE
(RCF EVOX-J11-PACKAGE)
Portable Column PA System Package
The RCF EVOX J11 BLACK package combines two active three-way column PA systems with matching protective covers and balanced XLR cables for a complete stereo sound reinforcement setup. Designed for DJs, musicians, live performers, event professionals, venues, weddings, and corporate applications, the system delivers high output, wide audience coverage, deep low-frequency performance, and fast portable deployment.
RCF EVOX J11 BLACK Package Competitive Differences
- Includes two RCF EVOX J11 BLACK three-way portable column PA systems
- 132dB maximum SPL per system for high-output professional applications
- 3500W peak Class D amplification per system with built-in DSP
- 12 x 3-inch neodymium full-range drivers provide detailed midrange and vocal reproduction
- 12-inch woofer delivers extended low-frequency performance down to 37Hz
- 1.75-inch voice coil neodymium compression driver adds dedicated high-frequency reproduction
- 120° x 40° True Resistive Waveguide provides broad, controlled audience coverage
- FiRPHASE and Bass Motion Control processing support coherent, controlled sound
- Includes two RCF CVR60752 protective covers designed for the EVOX J11
- Includes two SquareCable XLR-25 25-foot balanced XLR cables for stereo signal connections
RCF EVOX J11 BLACK Package Description
The RCF EVOX J11 BLACK is an active three-way portable column PA system designed for users who need high output, wide coverage, clear vocals, and powerful low-frequency reproduction in an elegant, compact format. Each system combines twelve 3-inch neodymium full-range drivers, a dedicated neodymium compression driver, and a 12-inch woofer for balanced reproduction across the frequency spectrum.
Each EVOX J11 is powered by a 3500W peak Class D amplifier delivering 2000W peak to the low-frequency section and 1500W peak to the high-frequency section. With a maximum SPL of 132dB and a frequency response of 37Hz to 20kHz, the system is suited for live music, DJ performances, weddings, corporate events, presentations, and installed sound applications requiring strong output without a conventional large-format speaker stack.
The three-way architecture uses twelve 3-inch neodymium full-range drivers with 1-inch voice coils, a 12-inch woofer with a 2.5-inch voice coil, and a 0.75-inch neodymium compression driver with a 1.75-inch voice coil. The 120° horizontal by 40° vertical coverage pattern helps distribute sound evenly across broad audience areas, while RCF DSP processing, FiRPHASE, and Bass Motion Control support phase coherence and controlled low-frequency performance.
Selectable LINEAR/LIVE, CLUB, and VOICE presets make it easy to adapt the system to different applications. Thermal and RMS protection, soft limiting, convection cooling, and PowerCON TRUE1 TOP power connections support dependable professional operation without fan noise. The polypropylene composite enclosure, steel grille, integrated top handle, and quick-fit column socket provide a road-ready design with fast setup and teardown.
Two RCF CVR60752 protective covers are included for the subwoofer/base sections. These black covers are specifically listed by RCF for the EVOX J9, EVOX JMIX9, and EVOX J11 and help protect the cabinets during transportation and storage. Each cover weighs 2.65 lb and measures 23.23 x 16.14 x 19.29 inches.
Two SquareCable XLR-25 cables complete the package for balanced signal connections. Each 25-foot XLR male-to-XLR female cable uses 20 AWG x 2 oxygen-free copper conductors, a 93% braided OFC copper shield, gold-plated contacts, and bend- and twist-resistant construction for reliable microphone and line-level audio transfer.
EVOX J11 BLACK Package Features
- Complete dual portable column PA package for stereo sound reinforcement
- 2 x RCF EVOX J11 BLACK three-way active column PA systems
- 132dB maximum SPL per system
- 3500W peak Class D amplification per system
- 2000W peak low-frequency amplifier power per system
- 1500W peak high-frequency amplifier power per system
- 12 x 3-inch neodymium full-range drivers per system
- 1-inch voice coil on each 3-inch full-range driver
- 12-inch woofer with 2.5-inch voice coil per system
- 0.75-inch neodymium compression driver with 1.75-inch voice coil
- 37Hz - 20kHz frequency response
- FiRPHASE processing
- Bass Motion Control processing
- Built-in DSP
- True Resistive Waveguide
- 120° x 40° coverage pattern
- LINEAR/LIVE, CLUB, and VOICE presets
- Thermal and RMS protection
- Soft limiter processing
- Convection-cooled amplifier design
- PowerCON TRUE1 TOP power connections
- Polypropylene composite cabinet construction
- Steel protective grille
- Integrated top handle
- Quick-fit column mounting socket
- 2 x RCF CVR60752 protective covers
- 2 x SquareCable XLR-25 25-foot balanced XLR cables
- 20 AWG x 2 oxygen-free copper cable conductors
- 93% braided OFC copper cable shielding
- Gold-plated XLR contacts
EVOX J11 BLACK Specifications
- System Quantity: 2
- System Type: Active three-way portable column speaker
- Frequency Response: 37Hz - 20kHz
- Max SPL: 132dB @ 1m
- Horizontal Coverage Angle: 120°
- Vertical Coverage Angle: 40°
- Compression Driver: 1 x 0.75 in neodymium, 1.75 in voice coil
- Full-Range Drivers: 12 x 3.0 in neodymium, 1.0 in voice coil
- Woofer: 1 x 12 in, 2.5 in voice coil
- Input Signal: Balanced / unbalanced
- Input Connector: Combo XLR / Jack
- Output Connector: XLR
- Input Sensitivity: +4dBu
- Crossover Frequencies: 160Hz / 1800Hz
- Protections: Thermal, RMS
- Limiter: Soft limiter
- Controls: Volume, LINEAR/LIVE, CLUB, VOICE presets
- Total Power: 3500W peak per system
- High-Frequency Power: 1500W peak per system
- Low-Frequency Power: 2000W peak per system
- Cooling: Convection
- Power Connections: PowerCON TRUE1 TOP IN/OUT
- Cabinet Material: PP composite
- Pole Mount / Cap: Quick-fit socket
- Handles: 1 top
- Grille: Steel
- Color: Black
- Height: 81.89 in (2080 mm)
- Width: 13.78 in (350 mm)
- Depth: 18.23 in (463 mm)
- Weight: 63.93 lb (29 kg) per system
- Safety Agency: CE compliant
CVR60752 Cover Specifications
- Cover Quantity: 2
- Type: Protective speaker cover
- Compatible Models: RCF EVOX J9, EVOX JMIX9, EVOX J11
- Color: Black
- Height: 23.23 in (590 mm)
- Width: 16.14 in (410 mm)
- Depth: 19.29 in (490 mm)
- Weight: 2.65 lb (1.2 kg) per cover
- Part Number: 13360752
- EAN: 8024530024543
- Safety Agency: CE compliant
SquareCable XLR-25 Cable Specifications
- Cable Quantity: 2
- Cable Length: 25 ft (7.62 m) each
- Connector Type: XLR Male to XLR Female
- Signal Type: Balanced microphone / line audio
- Conductors: 20 AWG x 2 oxygen-free copper
- Shielding: 93% braided OFC copper compact shield
- Contacts: Gold plated
- Construction: Bend- and twist-resistant cable
- Warranty: Lifetime guarantee

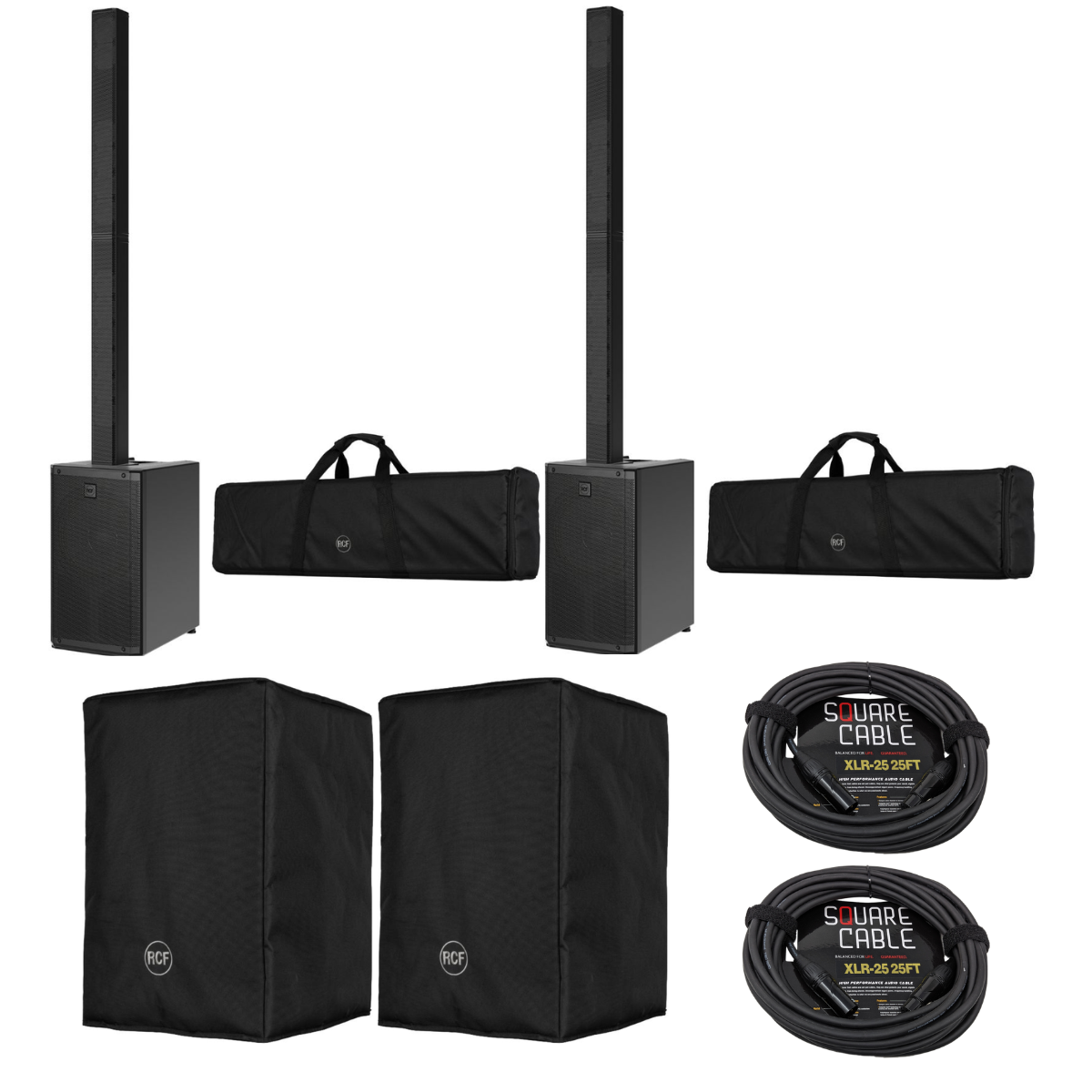

What's In The Box
- 2 x RCF EVOX J11 BLACK active three-way portable column PA systems
- 2 x RCF CVR60752 protective covers
- 2 x SquareCable XLR-25 25-foot XLR male-to-female audio cables
