RCF EVOX J11W PACKAGE
(RCF EVOX-J11W-PACKAGE)
Three-Way Portable Column PA System Package
The RCF EVOX J11 W package combines two white active three-way column PA systems with protective covers and balanced XLR cables for a complete stereo sound reinforcement setup. Designed for mobile DJs, musicians, live performers, weddings, corporate events, venues, and upscale installations, it delivers high output, wide audience coverage, deep bass, and a clean white appearance in a portable system.
RCF EVOX J11 W Package Competitive Differences
- Includes two RCF EVOX J11 W three-way portable column PA systems in White - RAL 9003
- 132dB maximum SPL per system for high-output professional applications
- 3500W peak Class D amplification per system with built-in DSP
- 12 x 3-inch neodymium full-range drivers provide detailed midrange and vocal reproduction
- 12-inch high-power woofer delivers deep, controlled low-frequency performance
- Dedicated neodymium compression driver provides clear high-frequency reproduction
- 120° x 40° True Resistive Waveguide provides broad, controlled audience coverage
- FiRPHASE and Bass Motion Control processing support coherent and controlled sound reproduction
- White cabinet provides a clean appearance for weddings, corporate events, houses of worship, and installations
- Includes two RCF CVR60752 protective covers for transport and storage
- Includes two SquareCable XLR-25 25-foot balanced XLR cables
RCF EVOX J11 W Package Description
The RCF EVOX J11 W is an active three-way portable column speaker system designed to combine high output, wide coverage, clear vocal reproduction, and substantial low-frequency performance in an elegant white enclosure. Each system uses twelve 3-inch neodymium full-range transducers, a dedicated neodymium compression driver, and a 12-inch high-power woofer to reproduce music and speech across a broad frequency range.
A 3500W peak dual-channel Class D amplifier powers each EVOX J11 W and incorporates onboard DSP for optimized system performance. With a maximum output of 132dB SPL, the system provides the headroom needed for DJ performances, live music, weddings, corporate functions, presentations, venues, and other professional applications where both sound quality and appearance matter.
The high-frequency section uses a neodymium compression driver coupled to RCF's True Resistive Waveguide for 120° horizontal by 40° vertical dispersion. Combined with the twelve 3-inch full-range transducers, this design provides broad coverage and articulate vocal and musical reproduction across the audience area. FiRPHASE and Bass Motion Control processing further support phase coherence, transient response, and controlled woofer performance.
The system uses a polypropylene composite enclosure with a quick-fit column mounting socket, integrated top handle, steel grille, and convection-cooled amplifier design. The white RAL 9003 finish makes the EVOX J11 W especially well suited to weddings, banquet facilities, houses of worship, corporate environments, and installations where traditional black loudspeakers may be visually intrusive. A padded carrying bag for the upper column speaker is included with each EVOX J11 W system.
Two RCF CVR60752 protective covers are included to help protect the subwoofer/base sections during transport and storage. These black covers are designed for the EVOX J9, EVOX JMIX9, and EVOX J11 series and provide a fitted solution for protecting the cabinets between events.
Two SquareCable XLR-25 cables complete the package for balanced audio signal connections. Each 25-foot XLR male-to-XLR female cable uses 20 AWG x 2 oxygen-free copper conductors, 93% braided OFC copper shielding, gold-plated contacts, and bend- and twist-resistant construction for professional microphone and line-level signal transfer.
EVOX J11 W Package Features
- Complete dual portable column PA package for stereo sound reinforcement
- 2 x RCF EVOX J11 W active three-way column PA systems
- White - RAL 9003 finish
- 132dB maximum SPL per system
- 3500W peak Class D amplification per system
- Built-in DSP processing
- 12 x 3-inch neodymium full-range transducers per system
- 12-inch high-power woofer per system
- Neodymium compression driver for dedicated high-frequency reproduction
- FiRPHASE processing
- Bass Motion Control processing
- True Resistive Waveguide
- 120° x 40° coverage pattern
- Convection-cooled amplifier design
- Polypropylene composite cabinet
- Steel protective grille
- Integrated top handle
- Quick-fit column mounting socket
- Padded carrying bag for each upper column speaker included
- 2 x RCF CVR60752 protective covers
- 2 x SquareCable XLR-25 25-foot balanced XLR cables
- 20 AWG x 2 oxygen-free copper cable conductors
- 93% braided OFC copper compact shielding
- Gold-plated XLR contacts
EVOX J11 W Specifications
- System Quantity: 2
- System Type: Active three-way portable column speaker
- Max SPL: 132dB @ 1m
- Horizontal Coverage Angle: 120°
- Vertical Coverage Angle: 40°
- Full-Range Drivers: 12 x 3 in neodymium
- Woofer: 1 x 12 in high-power woofer
- Amplifier Type: Class D
- Total Power: 3500W peak per system
- Processing: Built-in DSP
- RCF Technologies: FiRPHASE, Bass Motion Control
- Cooling: Convection
- Power Connection: PowerCON TRUE1 TOP
- Cabinet Material: PP composite
- Pole Mount / Cap: Quick-fit socket
- Handles: 1 top
- Grille: Steel
- Color: White - RAL 9003
- Height: 81.89 in (2080 mm)
- Width: 13.78 in (350 mm)
- Depth: 18.23 in (463 mm)
- Weight: 63.93 lb (29 kg) per system
- Subwoofer Section Weight: 45.42 lb (20.6 kg)
- Top Column Weight: 18.52 lb (8.4 kg)
- Part Number 100-120V: 13000988
- EAN Code 100-120V: 8024530024482
- Safety Agency: CE compliant
CVR60752 Cover Specifications
- Cover Quantity: 2
- Type: Protective speaker cover
- Compatible Models: RCF EVOX J9, EVOX JMIX9, EVOX J11
- Color: Black
- Height: 23.23 in (590 mm)
- Width: 16.14 in (410 mm)
- Depth: 19.29 in (490 mm)
- Weight: 2.65 lb (1.2 kg) per cover
- Part Number: 13360752
- EAN Code: 8024530024543
- Safety Agency: CE compliant
SquareCable XLR-25 Cable Specifications
- Cable Quantity: 2
- Cable Length: 25 ft (7.62 m) each
- Connector Type: XLR Male to XLR Female
- Signal Type: Balanced microphone / line audio
- Conductors: 20 AWG x 2 oxygen-free copper
- Shielding: 93% braided OFC copper compact shield
- Contacts: Gold plated
- Construction: Bend- and twist-resistant cable
- Warranty: Lifetime guarantee

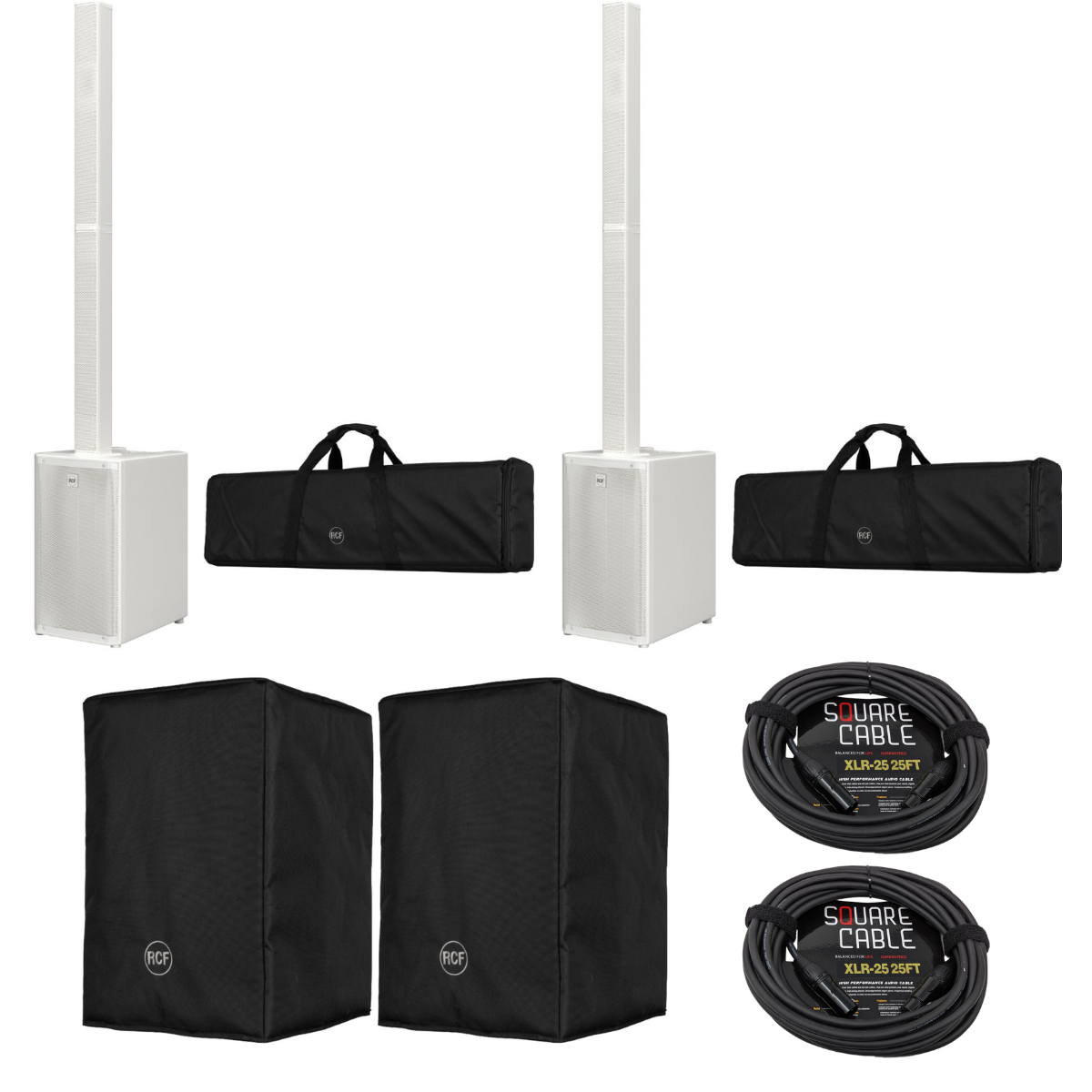

What's In The Box
- 2 x RCF EVOX J11 W white active three-way portable column PA systems
- 2 x padded upper column speaker carrying bags
- 2 x RCF CVR60752 protective covers
- 2 x SquareCable XLR-25 25-foot XLR male-to-female audio cables
