RCF EVOX J9 Package
(RCF EVOX J9 Package - Column Array with CVR60767 Covers)
Dual Portable Column PA System Package
The RCF EVOX J9 dual-system package combines two active three-way portable column PA systems with two fitted protective covers and two 10ft balanced XLR cables. Designed for mobile DJs, bands, live performers, event production, weddings, and corporate applications, the package provides powerful full-range sound, wide coverage, quick setup, and essential transport protection in one complete system.
RCF EVOX J9 Competitive Differences
- Includes two EVOX J9 systems, two RCF CVR60767 fitted protective covers, and two SquareCable XLR-10 10ft balanced XLR cables
- Each EVOX J9 delivers 2100W peak Class-D power and up to 130 dB max SPL
- True three-way design combines a 1.75” neodymium compression driver, six 3” neodymium full-range transducers, and a 12” high-power woofer
- RCF FiRPHASE and Bass Motion Control processing help maintain clarity, phase coherence, and controlled low-frequency performance
- 120° x 40° True Resistive Waveguide coverage provides wide, consistent sound throughout the listening area
- Included aluminum-alloy distance poles and padded column transport bags support fast setup and mobile use
RCF EVOX J9 Description
The RCF EVOX J9 is an active three-way portable column system built to deliver high output and detailed sound from a streamlined, road-ready enclosure. This package provides two complete systems, making it suitable for stereo PA setups and larger events where balanced coverage across a room or performance area is required.
Each EVOX J9 uses a 1.75” neodymium compression driver coupled to RCF's True Resistive Waveguide for consistent 120° horizontal and 40° vertical coverage. Six 3” neodymium full-range transducers reproduce articulate mids, while the 12” high-power woofer extends the system down to 40 Hz for deep, controlled bass. The system reaches up to 130 dB max SPL while maintaining a compact footprint.
A 2100W peak dual-channel Class-D amplifier powers each system and works with onboard DSP, FiRPHASE, and Bass Motion Control processing. LINEAR/LIVE, CLUB, and VOICE presets make it easy to tailor the response for different applications, from live music and DJ playback to speech-focused events. Thermal and RMS protection with soft limiting support dependable operation, while fanless convection cooling eliminates moving cooling components.
For mobile use, each EVOX J9 features a durable PP composite cabinet, steel grille, top handle, quick-fit mounting system, included aluminum-alloy distance pole, and padded transport bag for the column speaker. Two RCF CVR60767 covers add fitted protection for the EVOX bass sections during transport and storage, while the included SquareCable XLR-10 cables provide 10ft balanced XLR-M to XLR-F connections for integrating the systems with a mixer or other balanced audio source.
Package Features
- Complete dual RCF EVOX J9 portable PA package
- Two active three-way column speaker systems
- 2100W peak Class-D amplifier per EVOX J9
- 130 dB max SPL per EVOX J9
- 40 Hz to 20,000 Hz frequency response
- 1.75” neodymium compression driver with True Resistive Waveguide
- Six 3” neodymium full-range transducers per system
- 12” high-power woofer per system
- 120° horizontal x 40° vertical coverage
- Built-in DSP with LINEAR/LIVE, CLUB, and VOICE presets
- RCF FiRPHASE processing for optimized phase response and clarity
- RCF Bass Motion Control for controlled low-frequency performance
- Fanless convection-cooled amplifier design
- PP composite cabinets with steel grilles
- Quick-fit mounting system with included aluminum-alloy distance poles
- Padded column transport bag included with each EVOX J9
- Two RCF CVR60767 fitted protective covers included
- Two SquareCable XLR-10 10ft XLR-M to XLR-F balanced audio cables included
- SquareCable XLR cables use 20 AWG x 2 oxygen-free copper conductors and 93% braided OFC copper compact shielding
- Gold-plated contacts and bend/twist-resistant construction on included XLR cables
Package Specifications
- RCF EVOX J9 Quantity: 2
- System Type: Active three-way portable column PA system
- Max SPL per System: 130 dB
- Power Output per System: 2100W Peak
- High-Frequency Power: 700W Peak
- Low-Frequency Power: 1400W Peak
- Frequency Response: 40 Hz - 20,000 Hz
- Crossover Frequencies: 200 Hz / 1800 Hz
- Horizontal Coverage: 120°
- Vertical Coverage: 40°
- Compression Driver: 1 x 0.75” exit neodymium driver with 1.75” voice coil per system
- Full-Range Drivers: 6 x 3” neodymium drivers with 1” voice coils per system
- Woofer: 1 x 12” high-power woofer with 2.5” voice coil per system
- Input Signal: Balanced / Unbalanced
- Input Connectors: Combo XLR/Jack
- Output Connectors: XLR
- Input Sensitivity: -2 dBu / +4 dBu
- Controls: Volume, LINEAR/LIVE, CLUB, VOICE presets
- Protections: Thermal, RMS
- Limiter: Soft Limiter
- Cooling: Convection
- Cabinet Material: PP Composite
- Grille: Steel
- Mounting: Quick-fit socket
- EVOX J9 Dimensions per System (H x W x D): 81.89 x 13.78 x 18.21 in (2080.1 x 350 x 462.6 mm)
- EVOX J9 Weight per System: 57.32 lb (26 kg)
- RCF CVR60767 Cover Quantity: 2
- RCF CVR60767 Compatibility: EVOX J9, EVOX JMIX9, EVOX J11
- RCF CVR60767 Dimensions per Cover (H x W x D): 23.23 x 16.14 x 19.29 in (590 x 410 x 490 mm)
- RCF CVR60767 Weight per Cover: 2.65 lb (1.2 kg)
- SquareCable XLR-10 Quantity: 2
- Cable Type: Balanced XLR-M to XLR-F audio cable
- Cable Length: 10 ft
- Cable Conductors: 20 AWG x 2 oxygen-free copper
- Cable Shielding: 93% braided OFC copper compact shield
- Cable Contacts: Gold-plated
What's In The Box

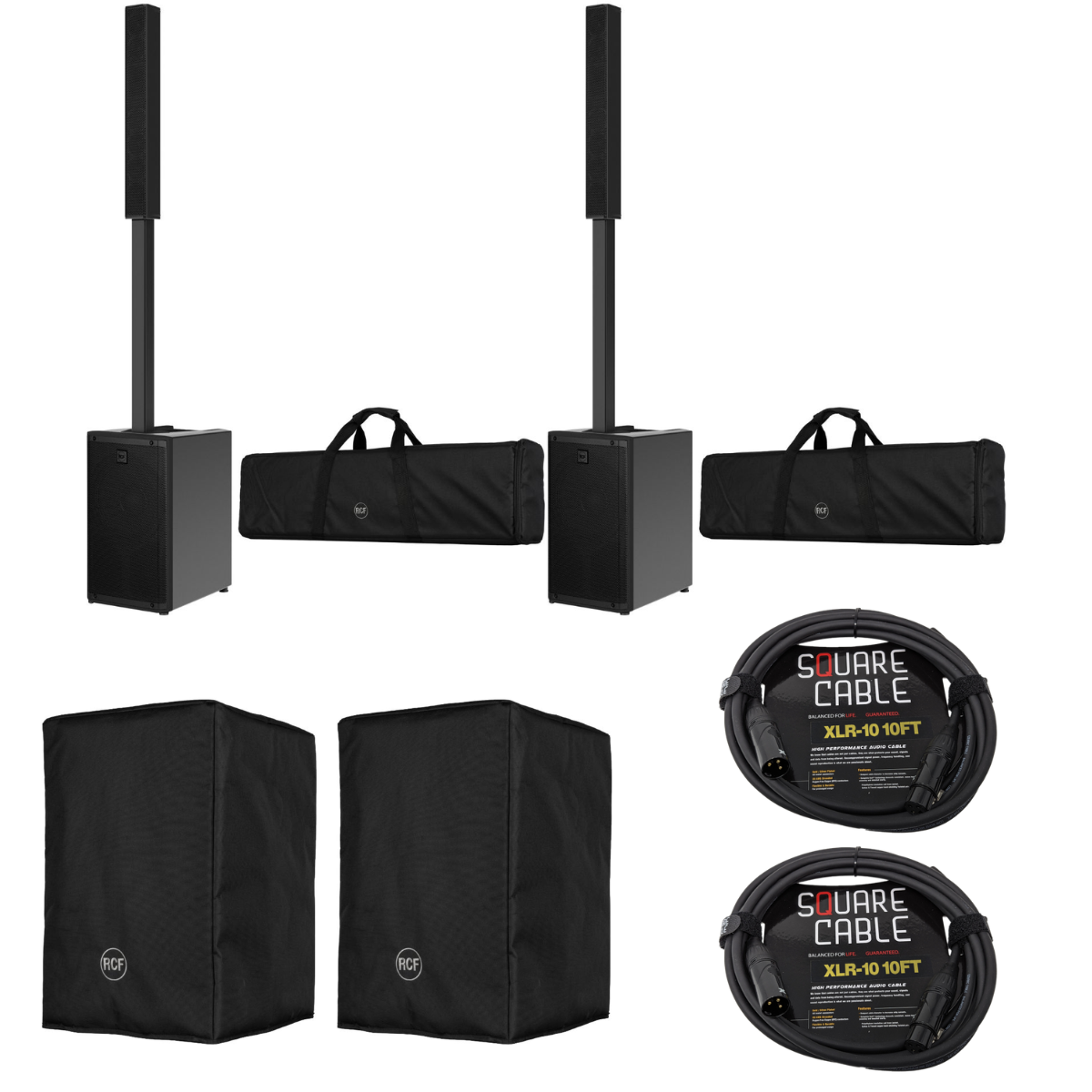

- (2) RCF EVOX J9 active three-way portable column PA systems
- (2) Padded column transport bags
- (2) Aluminum-alloy distance poles
- (2) RCF CVR60767 protective covers
- (2) SquareCable XLR-10 10ft XLR-M to XLR-F balanced audio cables
- (2) Power cables
- Documentation
