RF VENUE 2-CHANNEL KIT 500T570  (RF Venue 2-CHANNEL-KIT-500T570)

2-Channel Remote Antenna Kit

The RF Venue 2 CHANNEL KIT 500T570 is a complete remote antenna solution for smaller wireless microphone systems operating in the 500-570 MHz frequency range. By moving receive antennas to the front of an equipment rack or remotely positioning them outside an equipment closet, the kit helps provide better antenna placement and more reliable wireless reception.

RF Venue 2 CHANNEL KIT 500T570 Competitive Differences

• Complete antenna distribution solution designed to support two wireless microphone receivers
• Includes two 1/2-wave antennas optimized for the 500-570 MHz frequency range
• Supports both front rack panel mounting and remote antenna placement
• Includes two 2-way splitters for distributing the antenna signals to two receivers
• Six included 2 ft. BNC cables provide the interconnections required between antennas, splitters, and receivers
• Well suited for A/V carts, classrooms, corporate meeting rooms, and compact wireless installations

RF Venue 2 CHANNEL KIT 500T570 Description

The RF Venue 2 CHANNEL KIT 500T570 provides the antenna hardware needed to improve antenna positioning for two-channel wireless microphone installations. The included pair of 1/2-wave antennas can be installed at the front of an equipment rack with the supplied BNC pass-through adapters or positioned remotely with the included wall brackets.

Two included 2-way splitters distribute the signals from the antenna pair to two wireless microphone receivers. Six 24-inch BNC interconnect cables are supplied to connect the antennas, splitters, and compatible receivers with removable BNC antennas.

Remote antenna placement can be especially useful when wireless receivers are installed inside racks, equipment closets, or A/V carts where the receiver antennas would otherwise have limited placement options. Moving the antennas into a more favorable position can help improve RF signal reception and reduce problems caused by obstructed antenna locations.

Designed for smaller installed and portable wireless systems, this kit is a practical choice for classrooms, conference and meeting spaces, presentation systems, and mobile A/V racks operating within the 500-570 MHz range.

2 CHANNEL KIT 500T570 Features

• Two-channel remote antenna kit for wireless microphone systems
• 500-570 MHz operating frequency range
• Includes two 1/2-wave antennas
• Front rack panel or remote antenna mounting options
• Two included 2-way antenna splitters
• Six included 24-inch BNC interconnect cables
• BNC pass-through adapters for front-of-rack mounting
• Wall brackets with mounting screws for remote placement
• Designed for use with compatible wireless microphone receivers with removable BNC antennas
• Suitable for A/V carts, classrooms, meeting rooms, equipment racks, and corporate installations

2 CHANNEL KIT 500T570 Specifications

• Product Type: 2-Channel Remote Antenna Kit
• Frequency Range: 500-570 MHz
• Antenna Type: 1/2-Wave
• Number of Antennas: 2
• Number of Splitters: 2
• Splitter Type: 2-Way
• Connectivity: BNC
• Interconnect Cable Length: 2 ft. (24 in)
• Number of Interconnect Cables: 6
• Manufacturer Part Number: 2-CHANNEL KIT 500T570

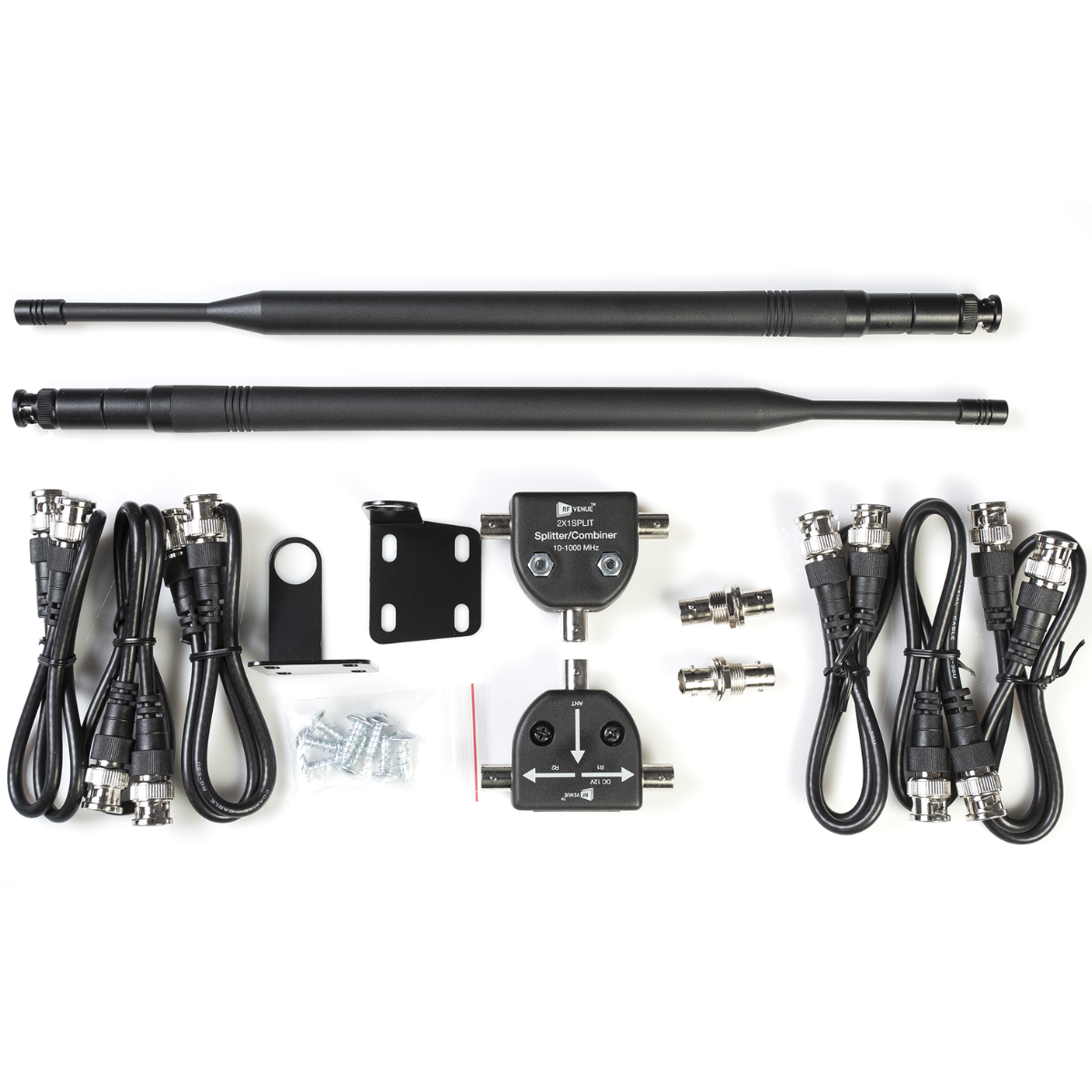

What's In The Box

• 2 x 1/2-Wave Antennas for 500-570 MHz
• 2 x 2X1SPLIT 2-Way Splitters
• 2 x Wall Brackets with Screws
• 2 x BNC Pass-Through Adapters
• 6 x 24-Inch BNC Interconnect Cables
