RF Venue COMB4CP-ARC | 4-Channel IEM Combiner with CP Architectural Antenna | White Wall/Ceiling Mount System

RF VENUE COMB4CP-ARC  (RF Venue COMB4CPARC)

4-Channel In-Ear Monitor Antenna Combiner Package

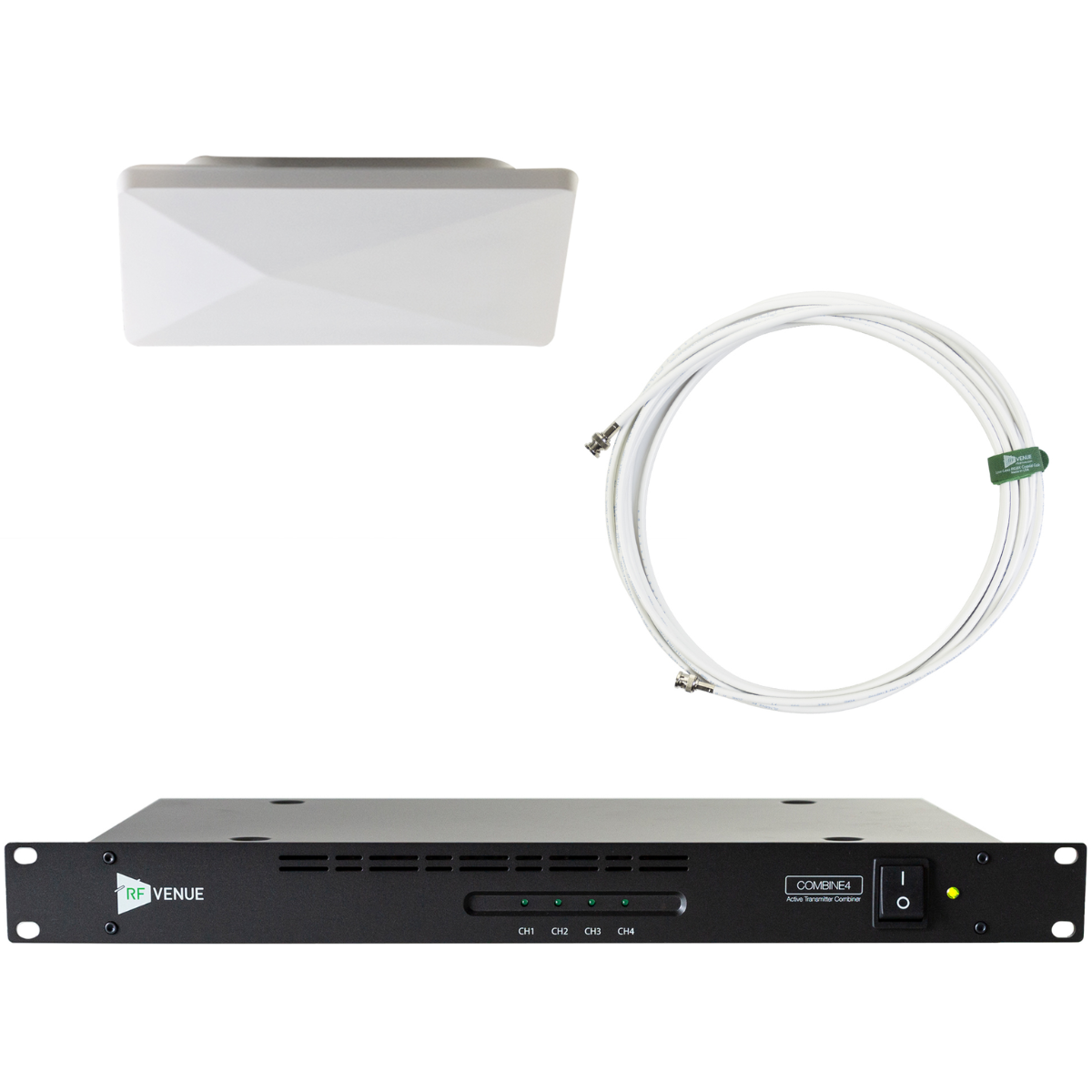

The RF Venue COMB4CP-ARC is a four-channel IEM transmitter combining package designed for permanent installations where reliable RF performance and a discreet appearance are equally important. It combines the COMBINE4 transmitter combiner with a white CP Architectural circularly polarized antenna and a 25 ft white RG8X BNC coaxial cable for a complete installed IEM antenna solution.

RF Venue COMB4CP-ARC Competitive Differences

• Combines up to four IEM transmitter signals into a single antenna to reduce antenna clutter and the potential for intermodulation between adjacent transmit antennas.
• CP Architectural Antenna uses right-hand circular polarization to provide more consistent IEM reception as performers and bodypack antennas change orientation.
• Slim white antenna enclosure mounts to a wall or ceiling and can be painted to better blend into installed environments.
• 120-degree antenna beam width provides broad directional coverage with a typical range of up to 200 ft depending on installation and RF conditions.
• COMBINE4 provides four 12V DC outputs for powering compatible IEM transmitters and reducing power supply clutter.
• Includes a 25 ft white RG8X BNC coaxial cable for remote antenna placement.

RF Venue COMB4CP-ARC Description

The RF Venue COMB4CP-ARC provides an integrated antenna and transmitter-combining solution for houses of worship, auditoriums, schools, conference spaces, theaters, and other venues using multiple wireless in-ear monitor channels. The COMBINE4 actively combines as many as four IEM transmitter outputs into a single antenna feed, helping create a cleaner RF installation than operating multiple transmitter antennas in close proximity.

The included CP Architectural Antenna is specifically designed for installed IEM applications. Its right-hand circularly polarized design distributes RF energy across changing polarization angles, helping maintain a more consistent signal as performers move and bodypack receiver antennas change orientation. The antenna has a 120-degree beam width, a slim 11 x 11 x 2 in enclosure, and can be mounted on a wall or ceiling in any orientation.

The white antenna enclosure provides a low-profile appearance for architecturally sensitive spaces and can be painted to coordinate with the surrounding interior. A rear BNC connection simplifies integration with in-wall or in-ceiling coaxial cable runs, while the included mounting hardware supports both wall and ceiling installation.

The COMBINE4 is a full-width rackmount transmitter combiner covering 470–960 MHz. In addition to its four BNC RF inputs and single antenna output, it includes four 12V DC outputs capable of supplying compatible IEM transmitters. With the antenna, combiner, RF jumpers, DC jumpers, AC power cord, mounting hardware, and white 25 ft RG8X cable included, the package provides the primary RF components needed for a professional four-channel installed IEM system.

COMB4CP-ARC Features

• Complete four-channel installed IEM antenna combining package
• Combines up to four IEM transmitter signals into one antenna output
• White CP Architectural Antenna for wall or ceiling mounting
• Right-hand circularly polarized antenna design
• 120-degree antenna beam width
• Typical antenna range up to 200 ft depending on local RF conditions
• CP Architectural Antenna can be painted to match interior finishes
• Rear BNC antenna connection for clean installed cabling
• COMBINE4 includes four BNC RF transmitter inputs
• Four 12V DC outputs for compatible IEM transmitters
• Internal universal AC power supply
• Front-panel RF signal indicators
• Includes four BNC RF jumpers and four DC power jumpers
• Includes 25 ft white RG8X BNC coaxial cable

COMB4CP-ARC Specifications

• COMBINE4 Frequency Range: 470–960 MHz
• COMBINE4 RF Inputs: 4 x BNC
• COMBINE4 Antenna Outputs: 1
• COMBINE4 Full System Gain: 0 dB ±2 dB
• Maximum RF Input Power: +20 dBm (100 mW) per channel
• RF Signal Indicator Threshold: Greater than +5 dBm
• COMBINE4 DC Outputs: 4
• DC Output Voltage: 12V DC, 1A maximum per output
• Total DC Output Power: 48W
• DC Output Connector: 5.5 mm OD, 2.1 mm ID
• COMBINE4 Power Consumption: 60W
• AC Input: 100–240 VAC, 50/60 Hz, 2A maximum
• COMBINE4 Dimensions: 19 x 2 x 10 in (480 x 45 x 250 mm)
• COMBINE4 Weight: 5 lb (2.3 kg)
• CP Architectural Operating Frequency: 470–928 MHz
• CP Architectural Bandwidth: 458 MHz
• CP Architectural Impedance: 50 ohms
• CP Architectural Polarization: RHCP
• CP Architectural Pattern: Hypercardioid
• CP Architectural Beam Width: 120 degrees
• CP Architectural Gain at 500 MHz: 3 dBi
• CP Architectural Connector: BNC-F
• CP Architectural Dimensions: 11 x 11 x 2 in (280 x 280 x 50 mm)
• CP Architectural Weight: 2 lb (0.9 kg)
• CP Architectural Operating Temperature: 14–104 degrees F (-10–40 degrees C)
• CP Architectural Color: Matte White
• Included Coaxial Cable: 25 ft white RG8X BNC

What's In The Box

• 1 x COMBINE4 Antenna Combiner
• 1 x White CP Architectural Antenna
• Wall mounting hardware
• Ceiling mounting hardware
• 4 x 14 in (36 cm) BNC jumpers
• 4 x 2 ft (61 cm) DC jumpers
• 1 x AC power cord
• 1 x 25 ft white RG8X BNC coaxial cable
