RF Venue COMB4CPB | 4-Channel IEM Combiner with CP Beam | Circularly Polarized UHF Antenna Package

RF VENUE COMB4CPB  (RF Venue 4 Channel In-Ear Monitor Upgrade Pack with CP Beam Antenna)

In-Ear Monitor Antenna Combiner Package

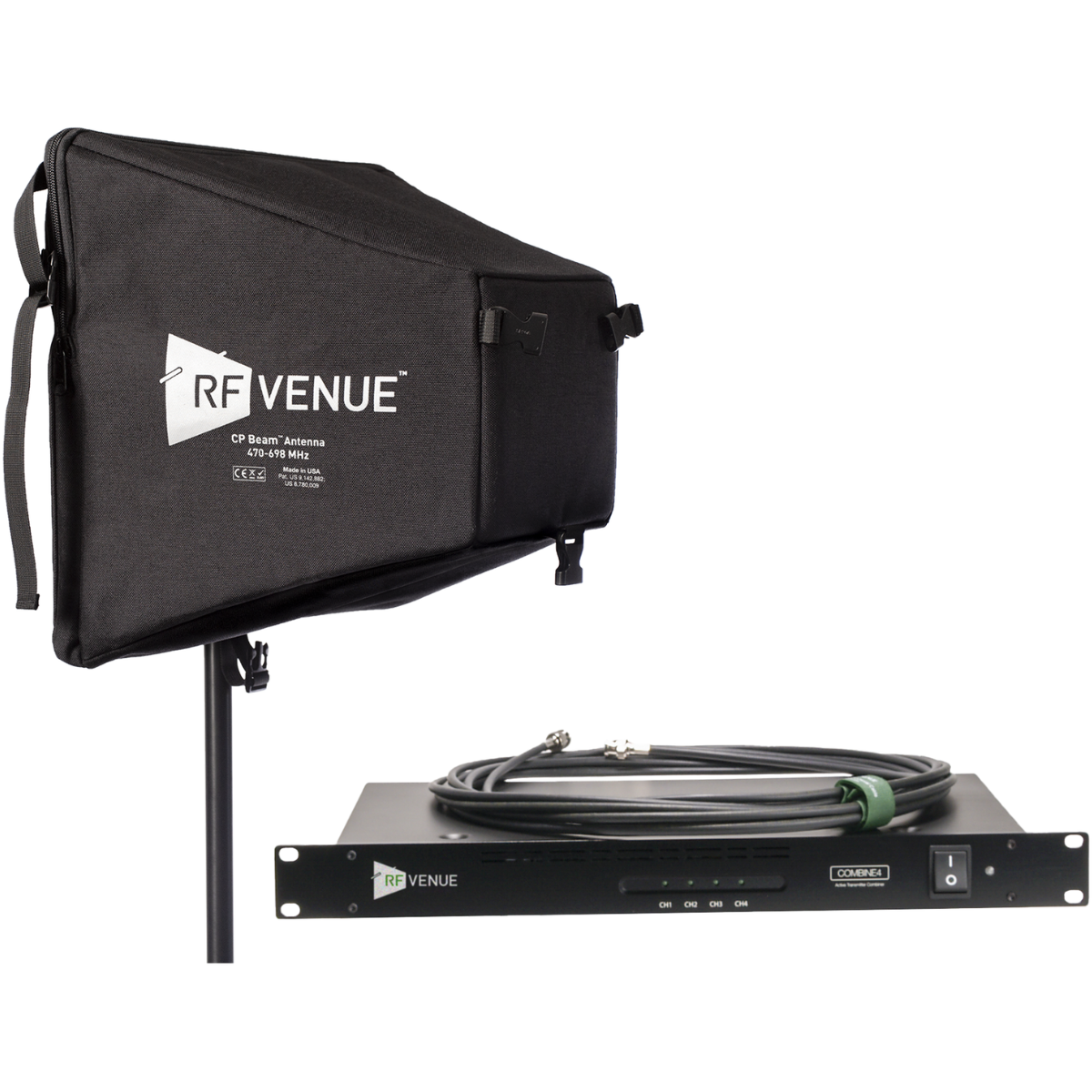

The RF Venue COMB4CPB is a four-channel wireless IEM upgrade package that combines up to four in-ear monitor transmitter signals into a single CP Beam antenna system. It brings together the COMBINE4 active transmitter combiner, circularly polarized CP Beam antenna, low-loss RG8X coaxial cable, RF jumpers, and DC power cables to create a cleaner and more reliable multi-channel IEM setup.

RF Venue COMB4CPB Competitive Differences

• Combines signals from up to four IEM transmitters into one transmitting antenna, helping reduce antenna clutter and intermodulation issues.
• CP Beam uses right-hand circular polarization with 9 dBd gain to provide consistent coverage as performers and bodypacks change orientation.
• COMBINE4 provides four 12V DC outputs for powering compatible IEM transmitters and reducing power-cable clutter.
• Includes a 25 ft RG8X low-loss, double-shielded BNC coaxial cable for remote antenna placement.
• Collapsible CP Beam antenna is lightweight and designed for portable live-event and touring applications.

RF Venue COMB4CPB Description

The RF Venue COMB4CPB is designed for live sound professionals, performers, venues, houses of worship, and touring systems that use multiple wireless in-ear monitor transmitters. Instead of operating several closely spaced transmitter antennas, the COMBINE4 actively combines as many as four RF signals into a single antenna output.

The included CP Beam is a lightweight folding helical antenna with right-hand circular polarization and 9 dBd gain. Its directional beam pattern helps focus RF energy toward the performance area, while circular polarization helps maintain a more consistent signal as bodypack antennas move through different orientations. The antenna operates from 470–698 MHz and collapses for easier transport and storage.

The COMBINE4 is a full-width rackmount transmitter combiner with four BNC RF inputs, a single antenna output, and four DC power outputs. Its internal universal AC power supply allows the unit to provide 12V DC power to compatible transmitters, helping simplify rack wiring. Each RF input supports a maximum input level of +20 dBm, or 100 mW.

With the CP Beam antenna, COMBINE4, antenna mounting hardware, RF and DC jumpers, and a 25 ft RG8X BNC cable included, the package provides the core components needed to upgrade a four-channel IEM system for cleaner rack installation and more controlled RF coverage.

COMB4CPB Features

• Complete four-channel IEM antenna combining package
• Actively combines up to four IEM transmitter signals into one antenna output
• CP Beam circularly polarized folding helical antenna
• 9 dBd CP Beam antenna gain
• Directional CP Beam coverage with approximately 63° to 70° beam width depending on axis
• Four BNC transmitter inputs
• Four 12V DC outputs for compatible IEM transmitters
• Internal universal AC power supply
• Front-panel signal indicators
• 25 ft RG8X low-loss, double-shielded BNC coaxial cable included
• Collapsible antenna design for easier transportation and storage
• CP Beam stand mount and N-to-BNC adapter included

COMB4CPB Specifications

• COMBINE4 Frequency Range: 470–960 MHz
• CP Beam Operating Frequency: 470–698 MHz
• COMBINE4 RF Inputs: 4 x BNC
• COMBINE4 Antenna Outputs: 1
• Maximum RF Input Power: +20 dBm (100 mW) per channel
• COMBINE4 System Gain: 0 dB (±2 dB)
• COMBINE4 DC Outputs: 4 x 12V DC, 1A maximum
• Total DC Output Power: 48W
• COMBINE4 Power Consumption: 60W
• AC Input: 100–240 VAC, 50/60 Hz, 2A maximum
• COMBINE4 Dimensions: 19 x 2 x 10 in (480 x 45 x 250 mm)
• COMBINE4 Weight: 5 lb (2.3 kg)
• CP Beam Polarization: RHCP
• CP Beam Gain: 9 dBd
• CP Beam Impedance: 50 ohms
• CP Beam Beam Width: 63° Azimuth X, 70° Azimuth Y
• CP Beam Dimensions: 14 x 14 in (355 x 355 mm)
• CP Beam Weight: 2.5 lb (1.1 kg)
• CP Beam Connector: N female with BNC adapter supplied
• Included Coaxial Cable: 25 ft RG8X BNC

What's In The Box

• COMBINE4 Antenna Combiner
• CP Beam Antenna
• CP Beam stand mount bracket
• N-to-BNC adapter
• 4 x 14 in (36 cm) BNC jumpers
• 4 x 2 ft (61 cm) DC jumpers
• 1 x AC power cord
• 1 x 25 ft RG8X BNC coaxial cable
