RF Venue COMB8CP-ARCB | 8-Channel IEM Combiner + CP Antenna | Black Architectural Install Bundle

RF VENUE COMB8CP-ARCB  (RF Venue COMB8CPARCB)

8-Channel IEM Combiner and Antenna Bundle

RF Venue COMB8CP-ARCB is a complete upgrade package for installed wireless in-ear monitoring systems, combining an eight-channel IEM transmitter combiner with a black circularly polarized architectural antenna. It allows up to eight compatible IEM transmitter signals to share a single antenna while providing cleaner RF system organization, DC power distribution, and a low-profile wall- or ceiling-mounted antenna solution.

RF Venue COMB8CP-ARCB Competitive Differences

• Combines signals from up to eight IEM transmitters into one transmitting antenna
• CP Architectural Antenna uses right-hand circular polarization to help maintain consistent coverage as performers and bodypacks change orientation
• Slim black architectural antenna can mount on a wall or ceiling for discreet permanent installations
• 120-degree antenna beam width provides broad coverage for performance and installed spaces
• COMBINE8 provides eight BNC RF inputs and one antenna output
• Maximum RF input power of +18dBm / 60mW per COMBINE8 channel
• 12V DC power distribution supports powering compatible IEM transmitters through the included eight-connector DC Octopus cable
• Includes eight BNC jumper cables for connecting transmitters to the combiner
• Includes a black 25-foot RG8X coaxial cable for connection between the combiner and antenna
• Complete single-SKU package is well suited for houses of worship, conference spaces, schools, auditoriums, and other installed IEM systems

RF Venue COMB8CP-ARCB Description

The RF Venue COMB8CP-ARCB brings together the core RF components needed to upgrade an eight-channel wireless in-ear monitoring system. The COMBINE8 actively combines as many as eight IEM transmitter outputs into one antenna feed, reducing antenna clutter and helping lower the potential for interference and intermodulation issues associated with multiple adjacent transmitting antennas.

The included black CP Architectural Antenna is designed specifically for installed IEM applications. Its right-hand circular polarization distributes RF energy across multiple polarization angles, helping provide more consistent reception as performers move and bodypack antenna orientation changes. A 120-degree beam width and 3dBi gain at 500MHz provide broad directional coverage, while the slim 11 x 11 x 2-inch enclosure can be mounted to a wall or ceiling.

The COMBINE8 supports eight BNC transmitter inputs with a maximum RF input level of +18dBm, or 60mW, per channel. It also supplies 12V DC at up to 4A through the included DC Octopus power distribution cable, allowing compatible IEM transmitters to be powered without individual external power adapters.

Designed for permanent professional installations, the bundle includes the COMBINE8, black CP Architectural Antenna, black 25-foot RG8X coaxial cable, eight BNC jumpers, DC power distribution cable, AC power cable, and antenna mounting hardware. This makes it particularly useful for houses of worship, theaters, schools, conference facilities, auditoriums, and other venues requiring a clean and dependable multichannel IEM installation.

COMB8CP-ARCB Features

• Complete eight-channel IEM RF upgrade bundle
• COMBINE8 active IEM transmitter combiner
• Black CP Architectural Antenna
• Combines up to eight transmitter signals to one antenna
• Eight BNC RF transmitter inputs
• Single antenna output
• 0dB full-system gain, ±2dB
• Maximum RF input power of +18dBm / 60mW per channel
• Front-panel input signal indicators
• 12V DC power output for compatible IEM transmitters
• Included eight-connector DC Octopus power distribution cable
• Right-hand circularly polarized antenna design
• 120-degree antenna beam width
• 3dBi antenna gain at 500MHz
• Wall- or ceiling-mount antenna installation
• Black architectural enclosure for discreet installed systems
• Included black 25-foot RG8X coaxial cable
• Eight included BNC jumper cables

COMB8CP-ARCB Specifications

• System Type: 8-channel IEM transmitter combiner and architectural antenna bundle
• COMBINE8 Operating Range, US/Canada: 470-608MHz
• COMBINE8 Operating Range, International: 470-698MHz
• COMBINE8 RF Inputs: 8 x BNC
• COMBINE8 Antenna Outputs: 1
• COMBINE8 Full System Gain: 0dB ±2dB
• Maximum RF Input Power: +18dBm / 60mW per channel
• Input Signal Indicator Threshold: Greater than +5dBm
• DC Output: 12V DC, 4A maximum
• Power Consumption: 84W
• AC Input: 100-240V AC, 50/60Hz, 2A
• COMBINE8 Dimensions: 19 x 2 x 10 in (480 x 45 x 250 mm)
• COMBINE8 Weight: 5.8 lb (2.6 kg)
• CP Architectural Antenna Operating Frequency: 470-928MHz
• CP Architectural Antenna Bandwidth: 458MHz
• Antenna Impedance: 50 Ohms
• Antenna Polarization: RHCP
• Antenna Pattern: Hypercardioid
• Antenna Beam Width: 120 degrees
• Antenna Gain: 3dBi @ 500MHz
• Antenna Connector: BNC-F
• Antenna Dimensions: 11 x 11 x 2 in (280 x 280 x 50 mm)
• Antenna Weight: 2 lb (0.9 kg)
• Antenna Mounting: Wall or ceiling
• Antenna Operating Temperature: 14 to 104 degrees F (-10 to 40 degrees C)
• Antenna Color: Black

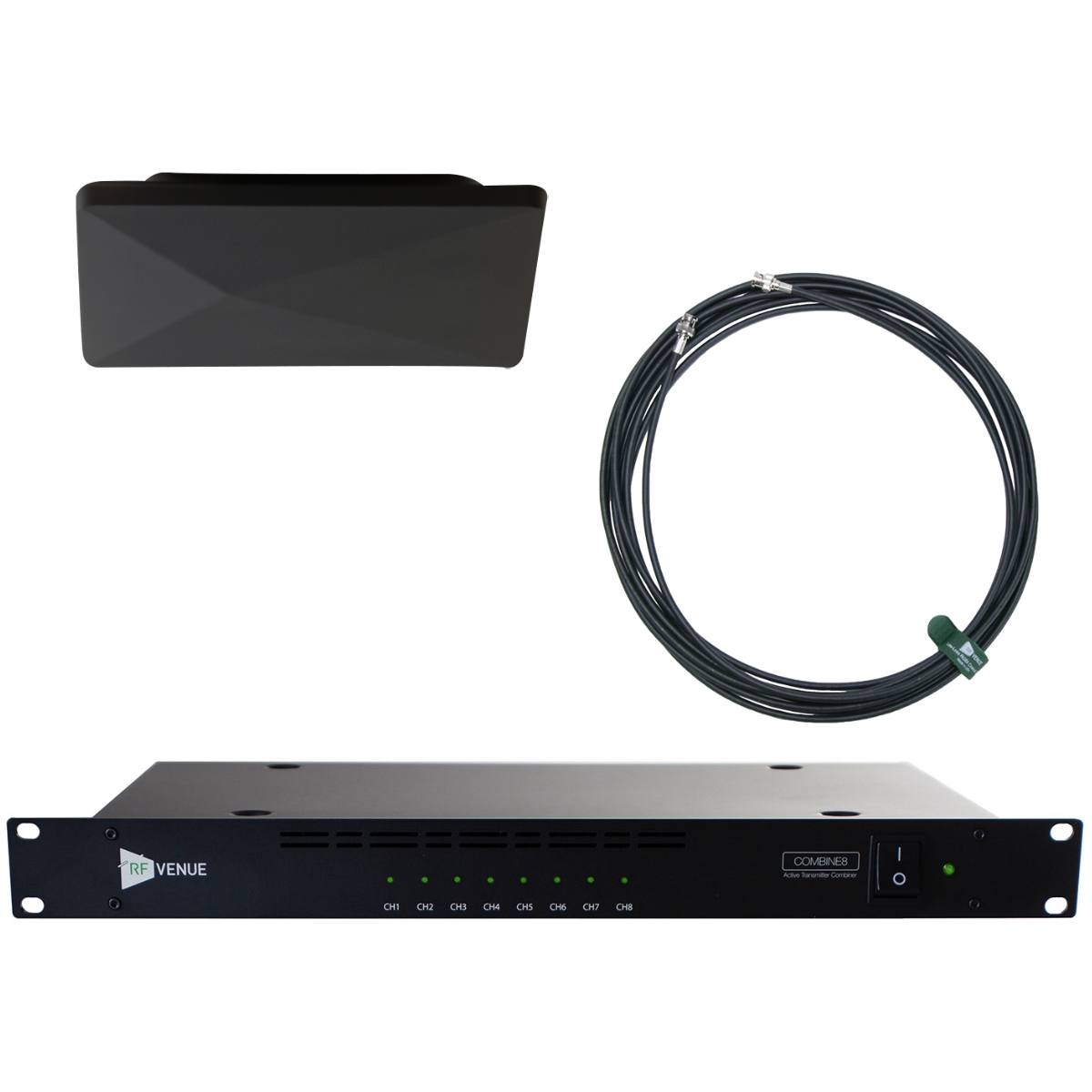

What's In The Box

• COMBINE8 IEM transmitter combiner
• Black CP Architectural Antenna
• Wall and ceiling antenna mounting hardware
• Black 25-foot RG8X coaxial cable
• 8 BNC jumper cables
• DC Octopus 8-connector power distribution cable
• AC power cable
