RF Venue D-ARCBD5 | 5-Channel Wireless Mic Upgrade Pack | Black Architectural Diversity Antenna

RF VENUE D-ARCBD5  (RF Venue DARCBD5)

Wireless Microphone Antenna Distribution Bundle

The RF Venue D-ARCBD5 is a complete 5-channel wireless microphone upgrade pack designed to simplify RF antenna and power distribution in installed and portable wireless systems. It combines the DISTRO5 HDR with a matte black Diversity Architectural Antenna, low-loss antenna cables, BNC interconnect cables, and DC power distribution for a streamlined multi-channel RF system.

RF Venue D-ARCBD5 Competitive Differences

• Complete turnkey RF distribution bundle for up to 5 wireless microphone channels
• Matte black Diversity Architectural Antenna integrates both A and B diversity connections into a single low-profile enclosure
• Architectural antenna can be installed on a wall or ceiling for discreet placement in finished spaces
• DISTRO5 HDR provides high-dynamic-range RF distribution across the 470–698 MHz frequency range
• Half-rack DISTRO5 HDR design delivers 5 diversity RF output pairs while conserving rack space
• Two DISTRO5 HDR units can be cascaded for up to 9 wireless microphone receivers in 1RU
• Included double-shielded low-loss coaxial cabling provides the antenna and receiver interconnections needed for the bundle
• 12V DC output provides up to 5A of power for compatible wireless receivers and other 12V rack equipment

RF Venue D-ARCBD5 Description

The RF Venue D-ARCBD5 brings together RF Venue's antenna, RF distribution, cabling, and DC power components in one package for systems with up to five wireless microphone receivers. The DISTRO5 HDR distributes one diversity antenna pair to five diversity receiver outputs while its high-dynamic-range architecture is designed to maintain clean, low-noise RF performance across a wide range of incoming signal levels.

The included matte black Diversity Architectural Antenna provides a discreet alternative to visible antenna arrays in conference rooms, multipurpose spaces, training rooms, houses of worship, auditoriums, and other installed AV environments. Its dual-feed design provides both A and B diversity connections from one enclosure, eliminating the need to mount two separate antenna housings. The antenna can be positioned on a wall or ceiling to suit the installation.

The DISTRO5 HDR uses a compact half-rack enclosure and can operate with wireless microphone systems from a wide range of manufacturers. Multiple DISTRO5 HDR units can also be cascaded, allowing two units to support up to nine diversity receivers in a single 1RU rack space. In addition to RF distribution, its internal power supply provides a 12V DC, 5A output for compatible rack equipment, while a 12V DC input enables battery-powered operation for portable applications.

The bundle also includes the cabling required to connect the antenna and wireless microphone receivers. Two 25-foot RF Venue Low Loss Antenna Cables handle the antenna runs, while ten 1.5-foot Low Loss BNC Interconnect Cables provide connections between the DISTRO5 HDR and receiver antenna inputs. The included DC-OCTOPUS-CABLE helps consolidate compatible receiver power connections for a cleaner and more organized rack installation.

D-ARCBD5 Features

• 5-channel wireless microphone RF distribution bundle
• Includes DISTRO5 HDR antenna and power distribution system
• Includes matte black Diversity Architectural Antenna
• 470–698 MHz DISTRO5 HDR frequency range
• 1 diversity antenna input pair
• 5 diversity RF output pairs
• High Dynamic Range RF architecture
• Dual-feed architectural antenna provides both A and B diversity connections
• Wall or ceiling antenna mounting
• Low-profile matte black antenna enclosure
• Compact half-rack DISTRO5 HDR chassis
• Cascade capability supports up to 9 diversity receivers with two DISTRO5 HDR units in 1RU
• 12V DC, 5A power output for compatible rack equipment
• 12V DC input supports battery-powered operation
• Includes low-loss antenna and BNC receiver interconnect cabling
• Compatible with wireless microphone receivers from multiple manufacturers

D-ARCBD5 Specifications

• Bundle Type: 5-channel wireless microphone antenna and power distribution upgrade pack
• Wireless Microphone Capacity: Up to 5 channels
• RF Frequency Range: 470–698 MHz
• DISTRO5 HDR RF Inputs: 1 diversity pair, BNC
• DISTRO5 HDR RF Outputs: 5 diversity pairs, BNC
• RF Impedance: 50 ohms
• Power Supply: Internal, 100–240 VAC, 50/60 Hz, 2A
• DC Input: 12V DC, 250mA
• DC Output: 12V DC, 5A
• DC Output Connector: Anderson Powerpole
• Antenna Housing Color: Matte Black
• Antenna Mounting: Wall or ceiling
• DISTRO5 HDR Dimensions: 8.80 x 8.25 x 1.75 in (223.5 x 210 x 44.5 mm)
• DISTRO5 HDR Weight: 3.7 lb (1.7 kg)

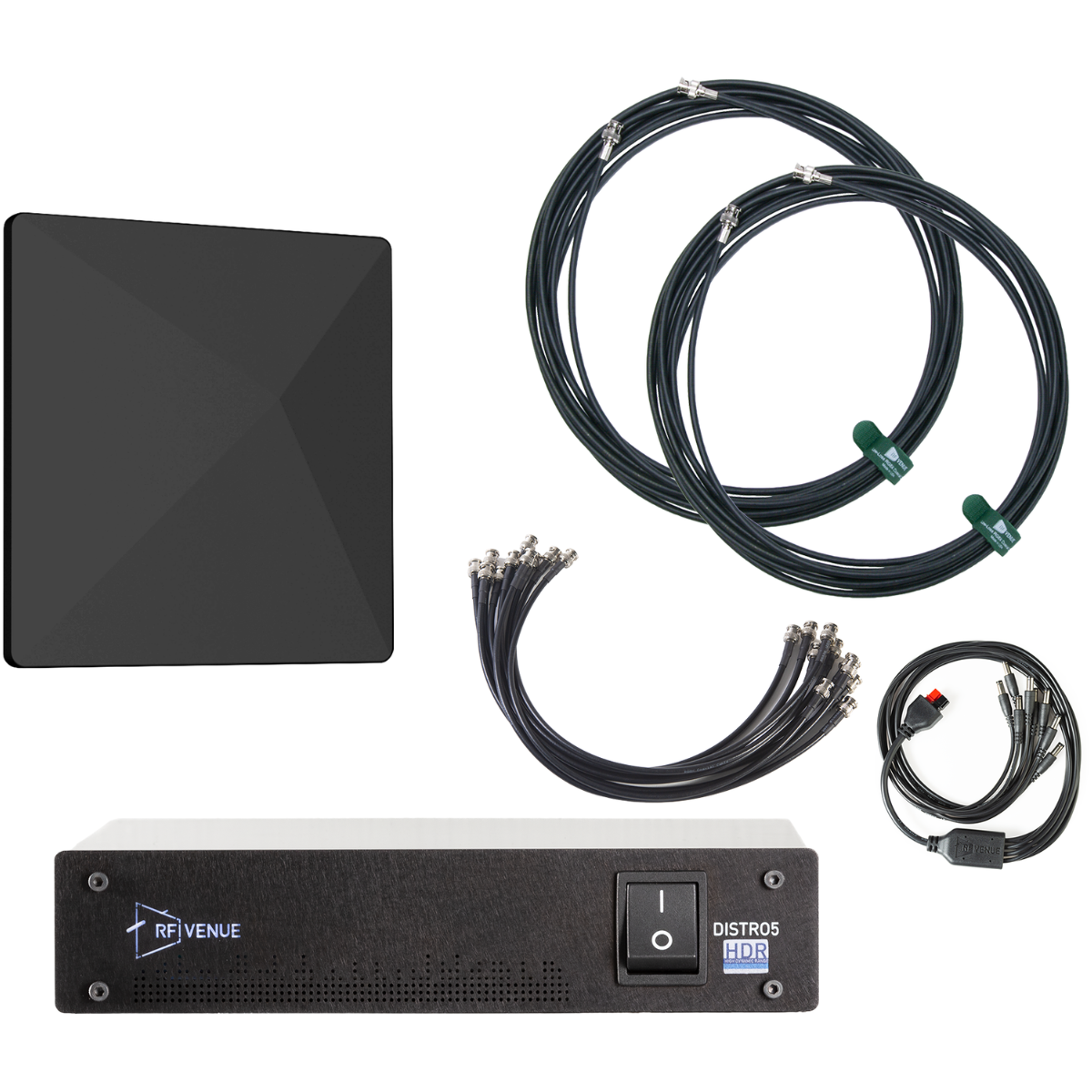

What's In The Box

• (1) DISTRO5 HDR
• (1) IEC Power Cord
• (1) Set of Short and Long Rack Ears
• (1) Half-Rack Connecting Plate and Mounting Hardware
• (1) Diversity Architectural Matte Black Wall or Ceiling Mount Antenna
• (2) 25 ft RF Venue Low Loss Antenna Cables
• (1) 10-Pack of 1.5 ft RF Venue Low Loss BNC Interconnect Cables
• (1) DC-OCTOPUS-CABLE
