RF Venue D-ARCBD9 | 9-Channel Dual-Zone RF Distribution | Black Architectural Diversity Antenna

RF VENUE D-ARCBD9  (RF Venue DARCBD9)

Wireless Microphone Antenna Distribution Bundle

The RF Venue D-ARCBD9 is a complete 9-channel wireless microphone RF distribution bundle combining the DISTRO9 HDR with a black Diversity Architectural Antenna, premium low-loss coaxial cabling, and DC receiver power distribution. It provides a compact 1RU solution for professional installations requiring dependable diversity reception, flexible multi-zone coverage, and discreet wall or ceiling antenna placement.

RF Venue D-ARCBD9 Competitive Differences

• Dual-feed Diversity Architectural Antenna provides both A and B diversity connections from one low-profile enclosure
• Black architectural enclosure provides a discreet appearance for dark ceilings, walls, theaters, auditoriums, and other finished spaces
• Wall or ceiling mounting eliminates the need for two separately positioned diversity paddle antennas
• DISTRO9 HDR distributes RF to up to 9 diversity wireless microphone receivers from a single 1RU chassis
• Two diversity antenna input zones provide flexible coverage for large spaces, separate rooms, or multiple RF coverage areas
• Wide 50–1000 MHz DISTRO9 HDR operating range supports VHF, UHF, and compatible 900 MHz wireless systems
• Unity-gain RF outputs can be cascaded to a second DISTRO9 HDR for up to 17 wireless microphone channels in 2RU
• Included low-loss double-shielded RG8X cabling provides the antenna and receiver interconnections required for a complete 9-channel system

RF Venue D-ARCBD9 Description

The RF Venue D-ARCBD9 combines RF Venue's Diversity Architectural Antenna with its DISTRO9 HDR antenna distribution platform for wireless microphone systems with up to nine diversity receivers. The antenna uses a dual-feed design that supplies separate A and B diversity connections from one housing, helping reduce RF dropouts associated with changing transmitter orientation while avoiding the visual clutter of two separately mounted antennas.

The black Diversity Architectural Antenna is designed for permanent indoor AV installations where appearance is as important as RF performance. Its slim enclosure can be installed on a wall or ceiling and operates across 470–698 MHz. The Diversity Flood coverage pattern makes it well suited to conference rooms, multipurpose spaces, training facilities, houses of worship, schools, theaters, auditoriums, and other venues requiring broad wireless microphone coverage.

The DISTRO9 HDR provides nine diversity RF output pairs and two diversity antenna input zones in a single rack-space chassis. Its 50–1000 MHz operating range supports a broad selection of professional wireless microphone systems, while its high-dynamic-range architecture is designed for clean, low-noise RF distribution. The two antenna zones can also simplify systems that need coverage across separate rooms or larger areas.

Power distribution is integrated into the DISTRO9 HDR, with 12V DC available over coax for compatible active antennas or inline RF devices and a dedicated 12V DC, 5A output for compatible wireless microphone receivers. The bundle also supplies two 25-foot RG8X antenna cables, ten 1.5-foot interconnect cables, ten 2-foot interconnect cables, and DC power distribution hardware for a complete and organized multi-channel wireless installation.

D-ARCBD9 Features

• Turnkey RF antenna and power distribution bundle for up to 9 diversity wireless microphone receivers
• Includes black Diversity Architectural Antenna
• Dual-feed antenna design provides separate A and B diversity connections
• Single architectural enclosure replaces two separately mounted diversity antenna housings
• Low-profile design for permanent installed AV applications
• Supports wall or ceiling installation
• Diversity Architectural Antenna operates from 470–698 MHz
• Diversity Flood antenna coverage pattern
• 3 dBd antenna gain
• Includes DISTRO9 HDR 9-channel antenna distribution system
• Two diversity RF input zones for multi-room and large-area coverage
• 9 diversity RF output pairs
• DISTRO9 HDR operates across 50–1000 MHz
• Unity-gain RF outputs can be cascaded to another DISTRO9 HDR
• Supports up to 17 wireless microphone channels with two DISTRO9 HDR units in 2RU
• DC power over coax supports compatible active antennas and inline RF devices
• 12V DC, 5A receiver power output
• Includes low-loss RG8X antenna and receiver interconnect cabling
• Compatible with wireless microphone systems from multiple manufacturers

D-ARCBD9 Specifications

• Bundle Type: 9-channel wireless microphone antenna and power distribution upgrade pack
• Wireless Microphone Capacity: Up to 9 diversity receiver channels
• DISTRO9 HDR Input Zones: 2
• DISTRO9 HDR RF Inputs: 2 diversity input pairs
• DISTRO9 HDR RF Outputs: 9 diversity output pairs
• DISTRO9 HDR Frequency Range: 50–1000 MHz
• DISTRO9 HDR RF Output Gain: ±3 dB
• DISTRO9 HDR Output Isolation: 60 dB at 510 MHz, 80 dB at 200 MHz
• DISTRO9 HDR Impedance: 50 ohms
• DISTRO9 HDR AC Input: 100–240 VAC
• DISTRO9 HDR Power Requirements: 50/60 Hz, 2A
• DISTRO9 HDR DC Over Coax: 12V DC, 100mA
• DISTRO9 HDR Receiver Power Output: 12V DC, 5A
• DISTRO9 HDR DC Output Connector: Anderson PowerPole
• DISTRO9 HDR Dimensions: 19 x 2 x 10 in (480 x 45 x 250 mm)
• DISTRO9 HDR Weight: 6 lb (2.7 kg)
• Diversity Architectural Antenna Frequency Range: 470–698 MHz
• Diversity Architectural Antenna Bandwidth: 146 MHz
• Diversity Architectural Antenna Impedance: 50 ohms
• Diversity Architectural Antenna Pattern: Diversity Flood
• Diversity Architectural Antenna Gain: 3 dBd
• Diversity Architectural Antenna Polarization: Linear
• Diversity Architectural Antenna Connectors: BNC female
• Diversity Architectural Antenna Dimensions: 11 x 11 x 2 in (280 x 280 x 50 mm)
• Diversity Architectural Antenna Weight: 2 lb (0.9 kg)
• Diversity Architectural Antenna Mounting: Wall or ceiling
• Diversity Architectural Antenna Operating Temperature: 14 to 104°F (-10 to 40°C)
• Diversity Architectural Antenna Color: Black

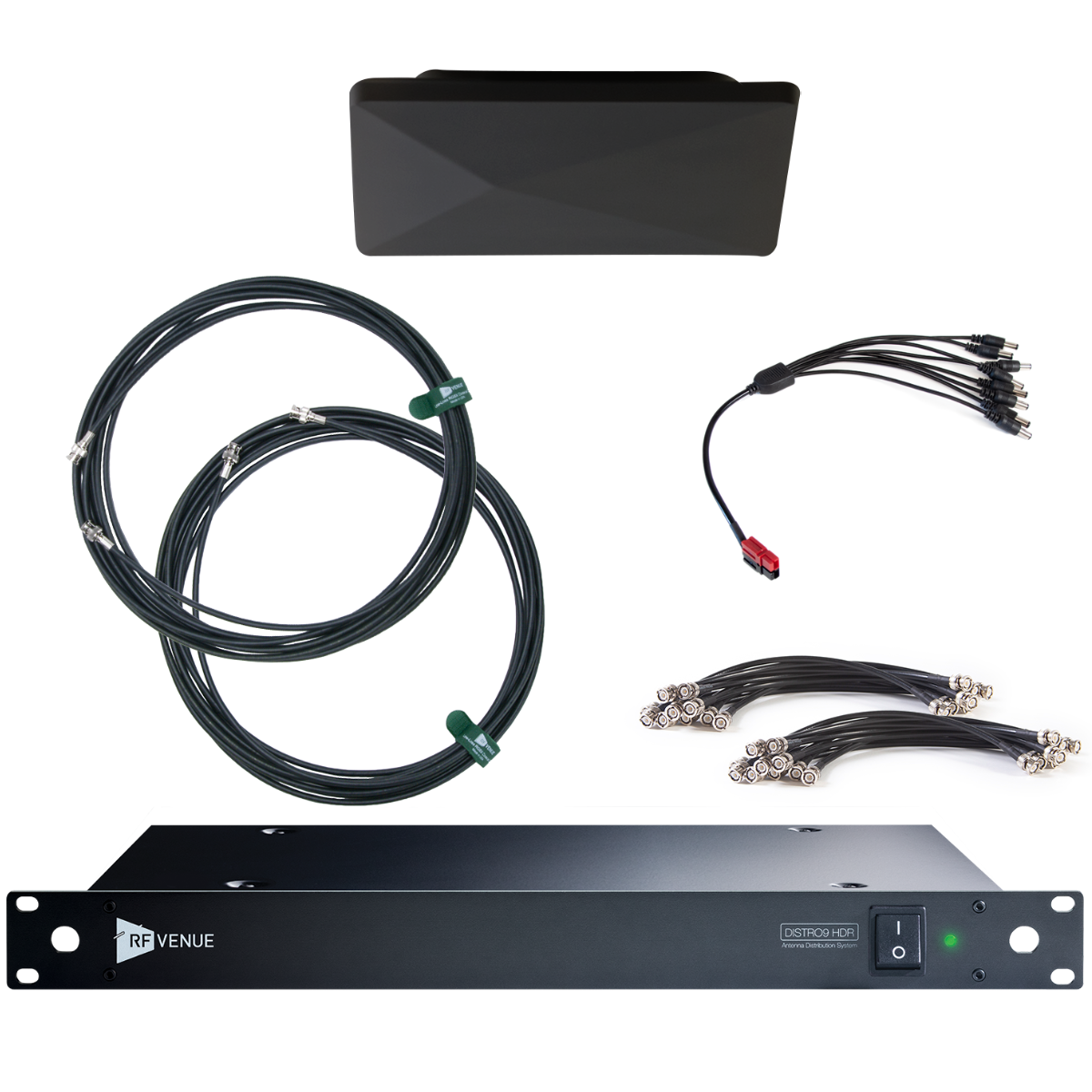

What's In The Box

• (1) Black Diversity Architectural Antenna
• (1) DISTRO9 HDR 9-Channel Antenna Distribution System
• (1) AC Power Cord
• (2) RG8X25 25 ft Low-Loss BNC Coaxial Cables
• (1) RG8X1.5-10 10-Pack of 1.5 ft RG8X BNC Interconnect Cables
• (1) RG8X2-10 10-Pack of 2 ft RG8X BNC Interconnect Cables
• (1) DC-OCTOPUS-CABLE Power Distribution Kit
