RF Venue D-ARCD5 | 5-Channel Wireless Mic Upgrade Pack | White Architectural Diversity Antenna Bundle

RF VENUE D-ARCD5  (RF Venue DARCD5)

Wireless Microphone Antenna Distribution Bundle

The RF Venue D-ARCD5 is a complete 5-channel wireless microphone upgrade pack designed to simplify antenna and RF distribution for installed and portable wireless systems. It combines the DISTRO5 HDR with a white Diversity Architectural Antenna, low-loss coaxial cabling, BNC interconnects, and DC power distribution components for a streamlined system covering up to five wireless microphone channels.

RF Venue D-ARCD5 Competitive Differences

• Turnkey bundle provides the primary antenna, RF distribution, interconnect, and DC power components needed for up to five wireless microphone channels
• Diversity Architectural Antenna provides both A and B diversity connections from one low-profile antenna enclosure
• White architectural antenna can be mounted on a wall or ceiling and painted to complement the surrounding interior
• DISTRO5 HDR distributes one diversity antenna pair to five diversity output pairs across the 470–698 MHz range
• Compact half-rack DISTRO5 HDR design can be cascaded with another unit for up to nine wireless microphone receivers in a single 1RU rack space
• Included low-loss, double-shielded coaxial cabling helps maintain RF signal integrity throughout the system
• 12V DC power distribution provides up to 5A for compatible rack equipment using the included DC-OCTOPUS-CABLE

RF Venue D-ARCD5 Description

The RF Venue D-ARCD5 combines RF Venue's DISTRO5 HDR antenna distribution system with its white Diversity Architectural Antenna to create a compact solution for multi-channel wireless microphone installations. The system distributes clean, low-noise RF from a single diversity antenna system to as many as five wireless microphone receivers.

The Diversity Architectural Antenna uses a dual-feed design that provides both A and B diversity connections from one enclosure, eliminating the need to install two separately positioned antennas. Its slim white housing is designed for indoor wall or ceiling installation and can be painted to blend into conference rooms, houses of worship, schools, auditoriums, multipurpose spaces, and other finished interiors.

The DISTRO5 HDR handles antenna and power distribution from a compact half-rack footprint. Its high-dynamic-range RF architecture operates from 470–698 MHz, while the 12V DC output can provide up to 5A of power for compatible rack equipment. A 12V DC input also supports battery-powered operation where AC power is not practical.

RF signal quality also depends on the cabling between system components, so the bundle includes two 25-foot white low-loss antenna cables and ten 1.5-foot low-loss BNC interconnect cables. Together with the included DC-OCTOPUS-CABLE, the D-ARCD5 provides an integrated approach to RF distribution for live sound, installed AV, education, worship, corporate, and production environments.

D-ARCD5 Features

• Complete wireless microphone RF upgrade pack for up to 5 channels
• Includes DISTRO5 HDR 5-channel antenna distribution system
• Includes white Diversity Architectural Antenna
• 470–698 MHz operating range
• One diversity antenna pair distributed to five diversity output pairs
• Dual-feed architectural antenna provides both A and B diversity connections
• Low-profile antenna supports wall or ceiling mounting
• White antenna enclosure can be painted to match interior spaces
• Compact half-rack DISTRO5 HDR footprint
• Two DISTRO5 HDR units can be cascaded for up to 9 wireless microphone receivers in 1RU
• 12V DC power output provides up to 5A for compatible equipment
• 12V DC input supports battery-powered operation
• Includes low-loss antenna and BNC interconnect cabling

D-ARCD5 Specifications

• Bundle Type: 5-channel wireless microphone antenna and power distribution upgrade pack
• Wireless Microphone Capacity: Up to 5 channels
• RF Frequency Range: 470–698 MHz
• DISTRO5 HDR RF Inputs: 1 diversity pair, BNC
• DISTRO5 HDR RF Outputs: 5 diversity pairs, BNC
• RF Impedance: 50 ohms
• AC Power Supply: Internal, 100–240 VAC, 50/60 Hz, 2A
• DC Input: 12V DC, 250mA
• DC Output: 12V DC, 5A
• DC Output Connector: Anderson Powerpole
• Antenna Color: White
• Antenna Mounting: Wall or ceiling
• DISTRO5 HDR Dimensions: 8.80 x 8.25 x 1.75 in (223.5 x 210 x 44.5 mm)
• DISTRO5 HDR Weight: 3.7 lb (1.7 kg)

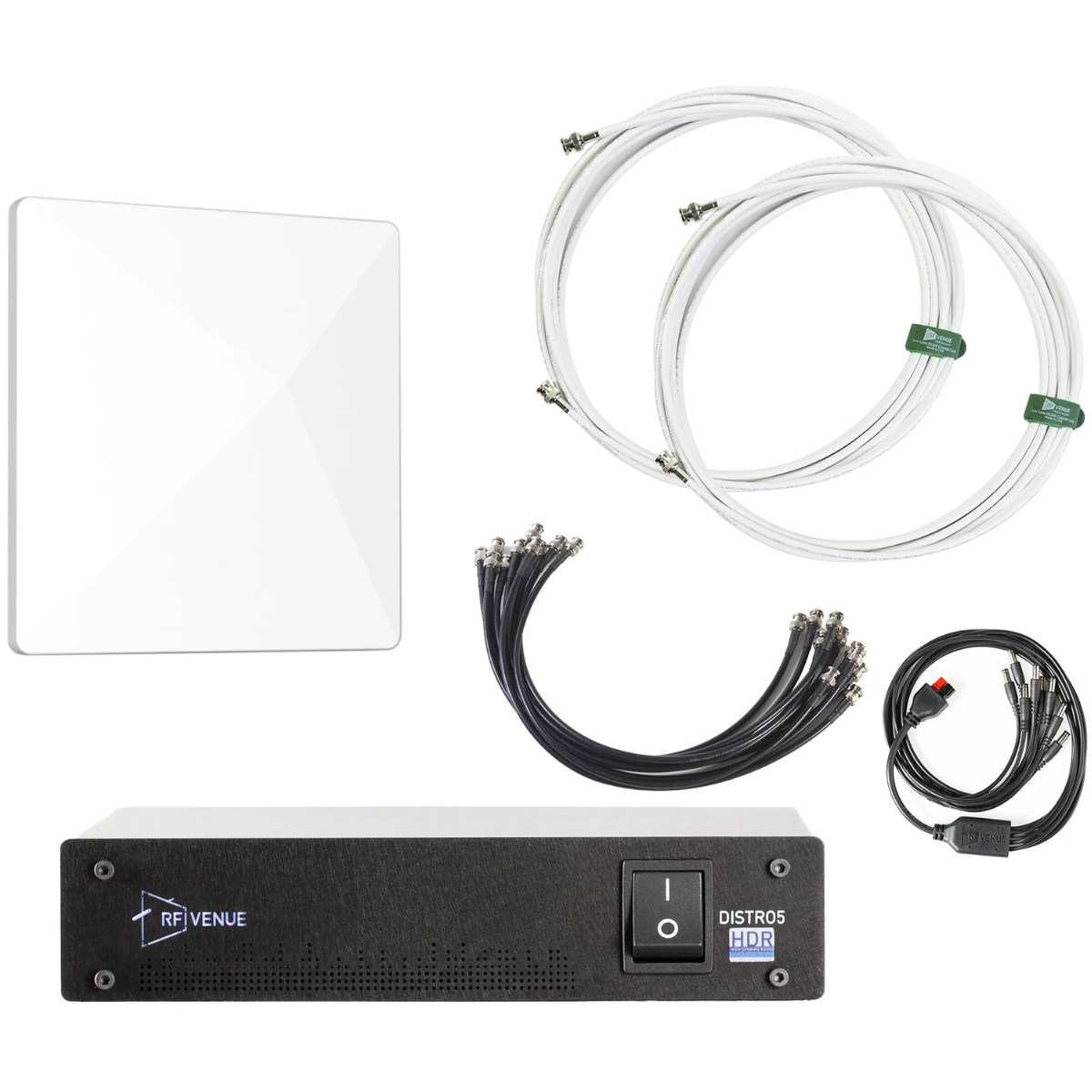

What's In The Box

• (1) DISTRO5 HDR
• (1) White Diversity Architectural Antenna
• (2) 25 ft White RF Venue Low Loss Antenna Cables
• (1) 10-Pack of 1.5 ft RF Venue Low Loss BNC Interconnect Cables
• (1) DC-OCTOPUS-CABLE
