RF Venue D-ARCD9 | 9-Channel Dual-Zone RF Distribution | White Architectural Diversity Antenna

RF VENUE D-ARCD9  (RF Venue DARCD9)

Wireless Microphone Antenna Distribution Bundle

The RF Venue D-ARCD9 is a turnkey 9-channel wireless microphone RF distribution bundle combining the DISTRO9 HDR with a white Diversity Architectural Antenna, premium low-loss coaxial cabling, and DC receiver power distribution. It provides a streamlined solution for professional installations that need reliable diversity reception, flexible multi-zone coverage, and discreet wall or ceiling antenna placement.

RF Venue D-ARCD9 Competitive Differences

• Diversity Architectural Antenna provides both A and B diversity connections from one low-profile enclosure instead of requiring two separately mounted paddle antennas
• White antenna can be installed on a wall or ceiling and painted with non-metallic paint to complement finished interiors
• DISTRO9 HDR provides 9 diversity receiver outputs from a single 1RU chassis
• Two diversity antenna input zones provide flexible RF coverage for large spaces, multiple rooms, or separate coverage areas
• DISTRO9 HDR operates across 50–1000 MHz for compatibility with VHF, UHF, and compatible 900 MHz wireless systems
• Any unity-gain RF output can be cascaded to another DISTRO9 HDR for systems with up to 17 wireless microphone channels in 2RU
• DC power over coax supports compatible active antennas and inline RF amplifiers
• Included double-shielded low-loss RG8X coaxial cabling provides the antenna and receiver interconnections required for a 9-channel system

RF Venue D-ARCD9 Description

The RF Venue D-ARCD9 combines RF Venue's Diversity Architectural Antenna with the DISTRO9 HDR to create a complete antenna distribution solution for systems with up to nine diversity wireless microphone receivers. The architectural antenna uses a dual-feed design that provides separate A and B diversity connections from a single enclosure, helping maintain reliable RF reception while eliminating the visual clutter of two separately mounted antenna housings.

The white Diversity Architectural Antenna is designed specifically for installed AV environments. Its slim 11-inch-square enclosure can be mounted on a wall or ceiling, while the included mounting hardware supports multiple installation methods. The antenna operates from 470–698 MHz, provides a Diversity Flood coverage pattern, and is well suited to conference rooms, training facilities, houses of worship, schools, auditoriums, multipurpose spaces, and other locations where RF performance and appearance are both important.

The DISTRO9 HDR provides nine diversity RF outputs and two diversity antenna input zones in a single rack-space chassis. Its wide 50–1000 MHz operating range accommodates a broad selection of professional wireless microphone systems, while its high-dynamic-range RF architecture provides clean distribution across the supported spectrum. Two antenna zones also make it possible to design coverage for larger areas or multiple rooms from one distribution platform.

The DISTRO9 HDR provides 12V DC power over coax for compatible active antennas or inline amplifiers and a separate 12V DC, 5A output for powering compatible wireless microphone receivers. The bundle also includes two white 25-foot RG8X antenna cables, ten 1.5-foot RG8X interconnects, ten 2-foot RG8X interconnects, and a DC-OCTOPUS-CABLE for a complete and organized multi-channel wireless installation.

D-ARCD9 Features

• Turnkey RF antenna and power distribution bundle for up to 9 diversity wireless microphone receivers
• Includes white Diversity Architectural Antenna
• Dual-feed antenna design provides separate A and B diversity connections
• Single architectural enclosure replaces two separately mounted diversity antennas
• Low-profile design for discreet installed AV applications
• Supports wall or ceiling installation
• White antenna enclosure can be painted with suitable non-metallic paint
• Diversity Architectural Antenna operates from 470–698 MHz
• Diversity Flood antenna coverage pattern
• Includes DISTRO9 HDR antenna distribution system
• Two diversity RF input zones for multi-room or large-area coverage
• 9 diversity RF output pairs
• DISTRO9 HDR operates across 50–1000 MHz
• Unity-gain RF outputs can be cascaded to another DISTRO9 HDR
• Supports up to 17 wireless microphone channels with two DISTRO9 HDR units in 2RU
• DC power over coax available for compatible active antennas and inline RF devices
• 12V DC, 5A receiver power output
• Includes white 25-foot low-loss RG8X antenna cables
• Includes 1.5-foot and 2-foot RG8X BNC receiver interconnect cables

D-ARCD9 Specifications

• Bundle Type: 9-channel wireless microphone antenna and power distribution upgrade pack
• Wireless Microphone Capacity: Up to 9 diversity receiver channels
• DISTRO9 HDR Input Zones: 2
• DISTRO9 HDR RF Inputs: 2 diversity input pairs
• DISTRO9 HDR RF Outputs: 9 diversity output pairs
• DISTRO9 HDR Frequency Range: 50–1000 MHz
• DISTRO9 HDR RF Output Gain: ±3 dB
• DISTRO9 HDR Output Isolation: 60 dB at 510 MHz, 80 dB at 200 MHz
• DISTRO9 HDR Impedance: 50 ohms
• DISTRO9 HDR AC Input: 100–240 VAC
• DISTRO9 HDR Power Requirements: 50/60 Hz, 2A
• DISTRO9 HDR DC Over Coax: 12V DC, 100mA
• DISTRO9 HDR Receiver Power Output: 12V DC, 5A
• DISTRO9 HDR DC Output Connector: Anderson PowerPole
• DISTRO9 HDR Dimensions: 19 x 2 x 10 in (480 x 45 x 250 mm)
• DISTRO9 HDR Weight: 6 lb (2.7 kg)
• Diversity Architectural Antenna Frequency Range: 470–698 MHz
• Diversity Architectural Antenna Bandwidth: 146 MHz
• Diversity Architectural Antenna Impedance: 50 ohms
• Diversity Architectural Antenna Pattern: Diversity Flood
• Diversity Architectural Antenna Gain: 3 dBd
• Diversity Architectural Antenna Polarization: Linear
• Diversity Architectural Antenna Connectors: BNC female
• Diversity Architectural Antenna Dimensions: 11 x 11 x 2 in (280 x 280 x 50 mm)
• Diversity Architectural Antenna Weight: 2 lb (0.9 kg)
• Diversity Architectural Antenna Mounting: Wall or ceiling
• Diversity Architectural Antenna Operating Temperature: 14 to 104°F (-10 to 40°C)
• Diversity Architectural Antenna Color: White

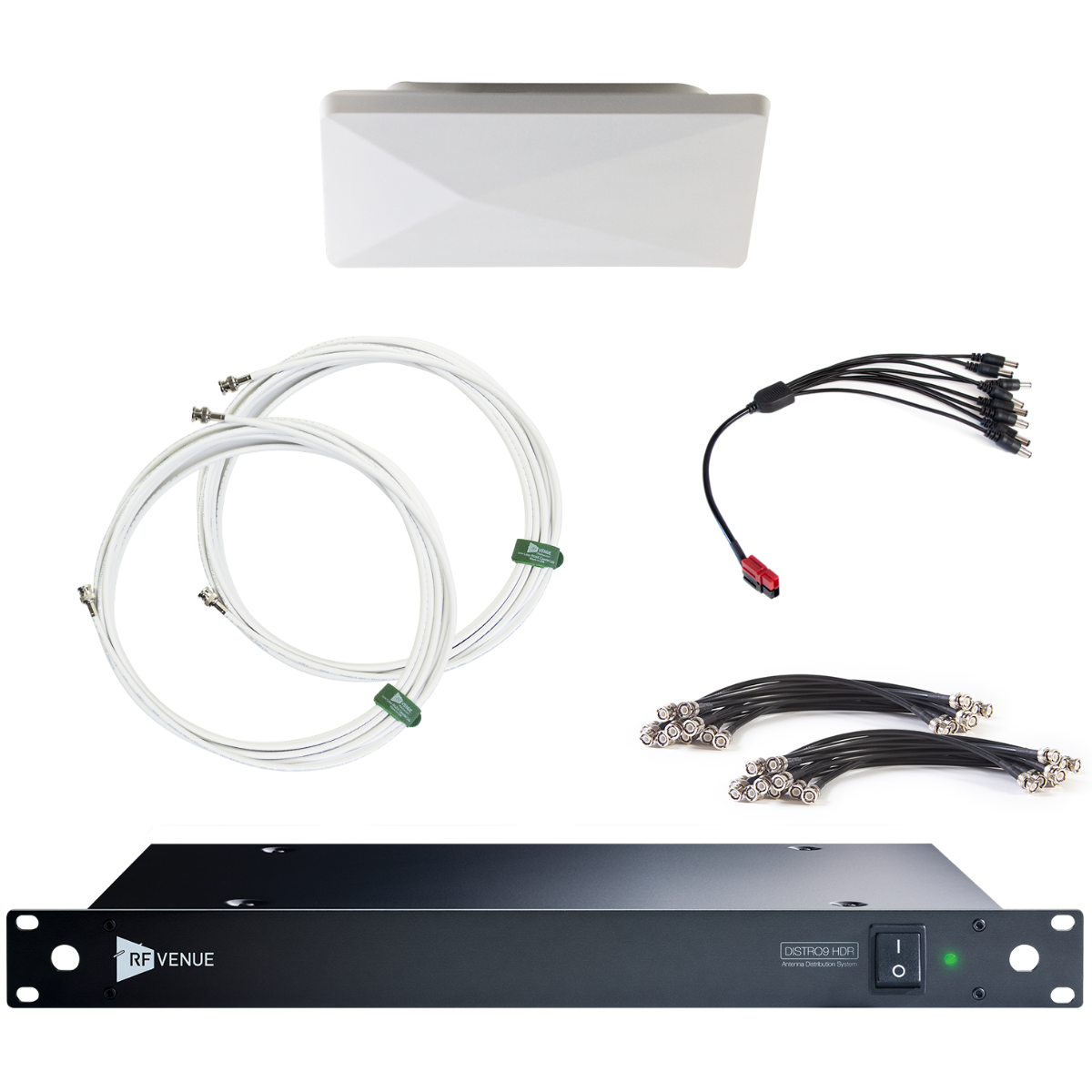

What's In The Box

• (1) White Diversity Architectural Antenna
• (1) Ceiling Hardware Mounting Kit
• (1) Wall Hardware Mounting Kit
• (1) DISTRO9 HDR 9-Channel Antenna Distribution System
• (1) AC Power Cord
• (2) White 25 ft RG8X Low-Loss BNC Coaxial Cables
• (10) 1.5 ft RG8X BNC Interconnect Cables
• (10) 2 ft RG8X BNC Interconnect Cables
• (1) DC-OCTOPUS-CABLE
