RF Venue D-OMNID9 | 9-Channel Dual-Zone RF Distribution | 360° Diversity Omni Antenna

RF VENUE D-OMNID9  (RF Venue DOMNID9)

Wireless Microphone Antenna Distribution Bundle

The RF Venue D-OMNID9 is a complete 9-channel wireless microphone RF distribution bundle combining the DISTRO9 HDR with a Diversity Omni Antenna, premium low-loss coaxial cabling, and DC receiver power distribution. Its 360-degree polarization-diversity antenna and dual-zone distribution architecture make it especially useful for multi-room systems, centrally positioned antennas, large venues, and outdoor wireless microphone applications.

RF Venue D-OMNID9 Competitive Differences

• Diversity Omni combines vertically and horizontally polarized antenna elements in one compact enclosure for true diversity reception
• 360-degree omnidirectional coverage allows a single antenna assembly to receive wireless microphones approaching from any direction
• DISTRO9 HDR distributes RF to up to 9 diversity wireless microphone receivers from a single 1RU chassis
• Two diversity antenna input zones support large-area, multi-room, and multi-zone wireless microphone installations
• DISTRO9 HDR operates across 50–1000 MHz for broad VHF, UHF, and compatible 900 MHz wireless system support
• Any unity-gain RF output can be cascaded to another DISTRO9 HDR for up to 17 wireless microphone channels in 2RU
• DC power over coax supports compatible active antennas and inline RF devices
• Included low-loss, double-shielded RG8X coaxial cabling provides the antenna and receiver interconnections required for the 9-channel system

RF Venue D-OMNID9 Description

The RF Venue D-OMNID9 combines RF Venue's Diversity Omni antenna technology with the DISTRO9 HDR antenna distribution platform for wireless microphone systems with up to nine diversity receivers. The Diversity Omni contains both a vertical monopole and horizontal folded-loop antenna element, providing separate A and B diversity feeds while receiving both vertically and horizontally polarized RF signals.

Both antenna elements provide 360-degree azimuth coverage, making the Diversity Omni particularly useful when microphones move around a centrally positioned antenna. This makes the system well suited to multi-zone facilities, sports venues, theme parks, amphitheaters, event spaces, and other applications where wide-area omnidirectional coverage is preferred. RF Venue specifies a typical range of up to approximately 100 feet from the center, with actual performance dependent on the RF environment and installation conditions.

The DISTRO9 HDR provides nine diversity RF output pairs and two diversity antenna input zones in a single rack-space chassis. Its wide 50–1000 MHz operating range and high-dynamic-range RF architecture provide flexible distribution for professional wireless microphone systems. The second antenna zone can be used to extend coverage into another room or area, while unity-gain outputs allow additional DISTRO9 HDR units to be cascaded when more wireless channels are required.

Power distribution is also integrated into the system. The DISTRO9 HDR provides 12V DC over coax for compatible active RF devices and a separate 12V DC, 5A output for compatible wireless microphone receivers. Two 25-foot RG8X antenna cables, 1.5-foot and 2-foot BNC interconnect cable packs, and the DC-OCTO power distribution kit complete the bundle for an organized multi-channel wireless installation.

D-OMNID9 Features

• Turnkey antenna and power distribution bundle for up to 9 diversity wireless microphone receivers
• Includes Diversity Omni polarization-diversity omnidirectional antenna
• Vertical monopole and horizontal folded-loop antenna elements
• Receives both vertically and horizontally polarized RF signals
• Separate A and B diversity antenna outputs
• 360-degree azimuth coverage from both antenna elements
• Typical antenna range up to approximately 100 ft from center depending on RF conditions
• Compact antenna design for centrally positioned installations
• Stand-mount bracket included
• Weather-resistant antenna cover included
• Ideal for multi-zone, multi-room, and outdoor applications
• Includes DISTRO9 HDR 9-channel antenna distribution system
• Two diversity RF input zones
• 9 diversity RF output pairs
• DISTRO9 HDR frequency range of 50–1000 MHz
• Unity-gain RF outputs can be cascaded to another DISTRO9 HDR
• Supports up to 17 wireless microphone channels with two DISTRO9 HDR units in 2RU
• DC power over coax available for compatible active antennas and inline RF devices
• 12V DC, 5A output for compatible receiver power distribution
• Includes premium low-loss RG8X antenna and receiver interconnect cables
• Double-shielded braid-over-foil coaxial cable construction

D-OMNID9 Specifications

• Bundle Type: 9-channel wireless microphone antenna and power distribution upgrade pack
• Wireless Microphone Capacity: Up to 9 diversity receiver channels
• DISTRO9 HDR Input Zones: 2
• DISTRO9 HDR RF Inputs: 2 diversity input pairs
• DISTRO9 HDR RF Outputs: 9 diversity output pairs
• DISTRO9 HDR Frequency Range: 50–1000 MHz
• DISTRO9 HDR RF Output Gain: ±3 dB
• DISTRO9 HDR Output Isolation: 60 dB at 510 MHz, 80 dB at 200 MHz
• DISTRO9 HDR Impedance: 50 ohms
• DISTRO9 HDR AC Input: 100–240 VAC
• DISTRO9 HDR Power Requirements: 50/60 Hz, 2A
• DISTRO9 HDR DC Over Coax: 12V DC, 100mA
• DISTRO9 HDR Receiver Power Output: 12V DC, 5A
• DISTRO9 HDR DC Output Connector: Anderson PowerPole
• DISTRO9 HDR Dimensions: 19 x 2 x 10 in (480 x 45 x 250 mm)
• DISTRO9 HDR Weight: 6 lb (2.7 kg)
• Diversity Omni Operating Frequency: 470–616 MHz, usable to 698 MHz where permitted
• Diversity Omni Bandwidth: 146 MHz
• Diversity Omni Impedance: 50 ohms
• Diversity Omni Vertical Element Coverage: 360° azimuth
• Diversity Omni Vertical Element Gain: +2 dBd at 500 MHz
• Diversity Omni Horizontal Element Coverage: 360° azimuth
• Diversity Omni Horizontal Element Gain: -2 dBd at 500 MHz
• Diversity Omni Connectors: (2) BNC female
• Diversity Omni Mount Threads: 1/4-20, 3/8-16, 5/8-27
• Diversity Omni Length: 4.2 in (105 mm)
• Diversity Omni Height: 8 in (204 mm)
• Diversity Omni Weight: 0.5 lb (187 g)
• Diversity Omni Operating Temperature: -9 to 130°F (-23 to 54°C)
• Diversity Omni Color: Black and Gold

What's In The Box

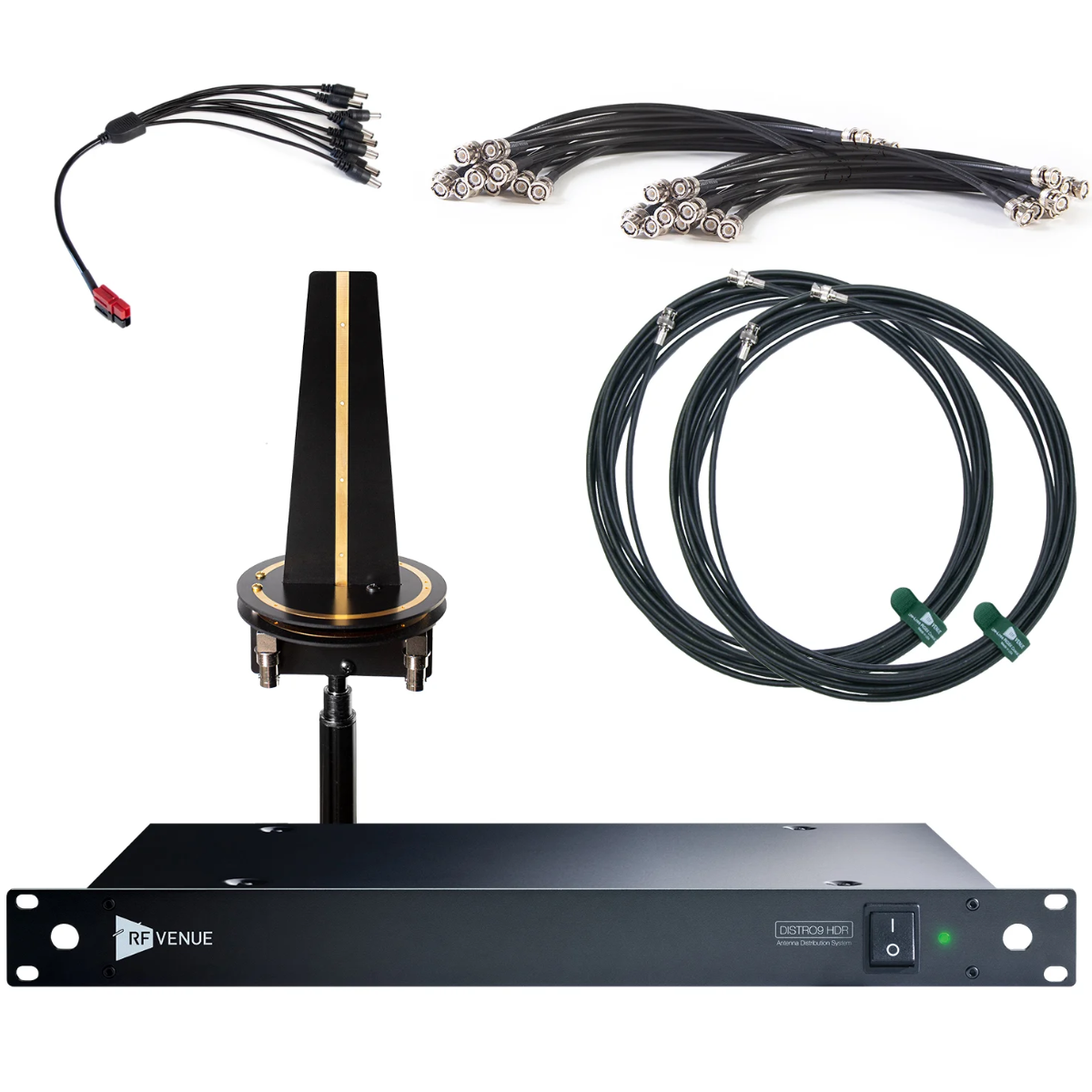

• (1) Diversity Omni Antenna
• (1) Diversity Omni Stand-Mount Bracket
• (1) Diversity Omni Weather-Resistant Cover
• (1) DISTRO9 HDR 9-Channel Antenna Distribution System
• (1) AC Power Cord
• (2) RG8X25 25 ft Low-Loss BNC Coaxial Cables
• (1) RG8X1.5-10 10-Pack of 1.5 ft BNC Interconnect Cables
• (1) RG8X2-10 10-Pack of 2 ft BNC Interconnect Cables
• (1) DC-OCTO 8-Channel DC Power Distribution Kit for DISTRO9
