RF Venue DFINBD9 | 9 Channel Dual-Zone RF Distribution | Black Wallmount Diversity Fin Antenna

RF VENUE DFINBD9  (RF Venue DFINBD-9)

Wireless Microphone Antenna Distribution Bundle

The RF Venue DFINBD9 is a turnkey 9-channel wireless microphone RF distribution system built around the black wallmount Diversity Fin antenna and DISTRO9 HDR. It combines polarization-diversity reception, dual-zone antenna distribution, premium low-loss coaxial cabling, and receiver power distribution in a rack-friendly system for installed wireless microphone applications.

RF Venue DFINBD9 Competitive Differences

• Patented Diversity Fin combines an LPDA and dipole antenna in one cross-polarized enclosure, replacing two conventional diversity paddle antennas
• DISTRO9 HDR supports up to 9 diversity wireless microphone receivers from a single 1RU chassis
• Two independent diversity input zones provide flexible antenna coverage for large areas, multiple rooms, or separate coverage zones
• DISTRO9 HDR operates across a wide 50–1000 MHz frequency range for VHF, UHF, and compatible 900 MHz wireless systems
• Any RF output can be cascaded to another DISTRO9 HDR for up to 17 wireless microphone channels in 2RU
• Included DC power distribution can power up to 8 compatible wireless microphone receivers from the DISTRO9 HDR
• Premium low-loss RG8X cabling uses double-shielded braid-over-foil construction for dependable RF signal transfer
• Black wallmount Diversity Fin provides a permanent-installation solution for theaters, houses of worship, schools, production facilities, and other professional venues

RF Venue DFINBD9 Description

The RF Venue DFINBD9 combines RF Venue's patented Diversity Fin antenna with the DISTRO9 HDR to provide dependable antenna distribution for wireless microphone systems with as many as nine diversity receivers. The Diversity Fin uses an orthogonal arrangement consisting of a directional LPDA and a bidirectional dipole, allowing one element to receive vertically polarized RF while the other receives horizontally polarized RF. This polarization-diversity approach helps reduce multipath-related signal fades as microphone and bodypack orientation changes.

The included DFINB version of the Diversity Fin is designed for permanent installation and includes a black wall-mount bracket. Its 470–698 MHz operating range supports professional UHF wireless microphone systems, while two BNC outputs provide the separate diversity feeds required by the DISTRO9 HDR. The antenna's passive design provides a straightforward, durable solution for installed AV environments without requiring active electronics at the antenna.

The DISTRO9 HDR provides nine low-noise diversity RF outputs plus two diversity input zones in a single rack-space chassis. Its 50–1000 MHz operating range supports a broad selection of wireless microphone frequency bands, while high-dynamic-range circuitry and carefully controlled gain structure are designed to distribute RF without unnecessarily compromising signal integrity. DC power can also be supplied over coax to compatible active antennas or inline RF devices.

For rack organization, the DISTRO9 HDR supplies 12V DC at up to 5A through its Anderson PowerPole output, allowing the included power distribution kit to power compatible wireless receivers without individual wall-mounted power supplies. The bundle also includes two 25-foot RG8X antenna cables plus ten 1.5-foot and ten 2-foot BNC interconnect cables, providing the RF cabling required for a complete nine-channel installation.

DFINBD9 Features

• Turnkey wireless microphone RF upgrade pack for up to 9 diversity receivers
• Includes black DFINB Diversity Fin wallmount antenna
• Patented cross-polarized Diversity Fin antenna design
• Combines one directional LPDA and one bidirectional dipole antenna
• Receives both vertically and horizontally polarized RF signals
• Single Diversity Fin performs the diversity-reception role of two conventional paddle antennas
• Includes black wall-mount bracket for permanent installation
• Includes DISTRO9 HDR 9-channel antenna distribution system
• Two diversity RF input zones for multi-zone and multi-room coverage
• 9 diversity receiver outputs
• Any RF output can be cascaded to another DISTRO9 HDR
• Supports up to 17 wireless microphone channels with two DISTRO9 HDR units in 2RU
• DC power available over coax for compatible active antennas or inline RF devices
• 12V DC, 5A receiver power output
• Included DC power distribution kit supports powering compatible wireless receivers
• Premium RG8X low-loss coaxial antenna and interconnect cables included
• Double-shielded braid-over-foil coaxial cable construction
• DISTRO9 HDR is designed and assembled in the USA
• DISTRO9 HDR is ETL listed in the USA and Canada

DFINBD9 Specifications

• Bundle Type: 9-channel wireless microphone antenna and power distribution upgrade pack
• Wireless Microphone Capacity: Up to 9 diversity receiver channels
• DISTRO9 HDR Input Zones: 2
• DISTRO9 HDR RF Inputs: 2 diversity input pairs
• DISTRO9 HDR RF Outputs: 9 diversity output pairs
• DISTRO9 HDR Frequency Range: 50–1000 MHz
• DISTRO9 HDR RF Output Gain: ±3 dB
• DISTRO9 HDR Impedance: 50 ohms
• DISTRO9 HDR Input Voltage: 100–240 VAC
• DISTRO9 HDR Power Requirements: 50/60 Hz, 2A
• DISTRO9 HDR DC Over Coax: 12V DC, 100mA
• DISTRO9 HDR Receiver Power Output: 12V DC, 5A
• DISTRO9 HDR DC Output Connector: Anderson PowerPole
• DISTRO9 HDR Dimensions: 19 x 2 x 10 in (480 x 45 x 250 mm)
• DISTRO9 HDR Weight: 6 lb (2.7 kg)
• Diversity Fin Operating Frequency: 470–698 MHz
• Diversity Fin Bandwidth: 228 MHz
• Diversity Fin Impedance: 50 ohms
• Diversity Fin LPDA Beam Width: 140° azimuth
• Diversity Fin LPDA Gain: 5 dBd
• Diversity Fin Dipole Beam Width: 100° azimuth
• Diversity Fin Dipole Gain: 1.8 dBd
• Diversity Fin Connectors: (2) BNC female
• Diversity Fin Dimensions: 12 x 14.6 in (300 x 370 mm)
• Diversity Fin Weight: 1 lb (454 g)
• Diversity Fin Operating Temperature: -9 to 130°F (-23 to 54°C)
• Diversity Fin Color: Black

What's In The Box

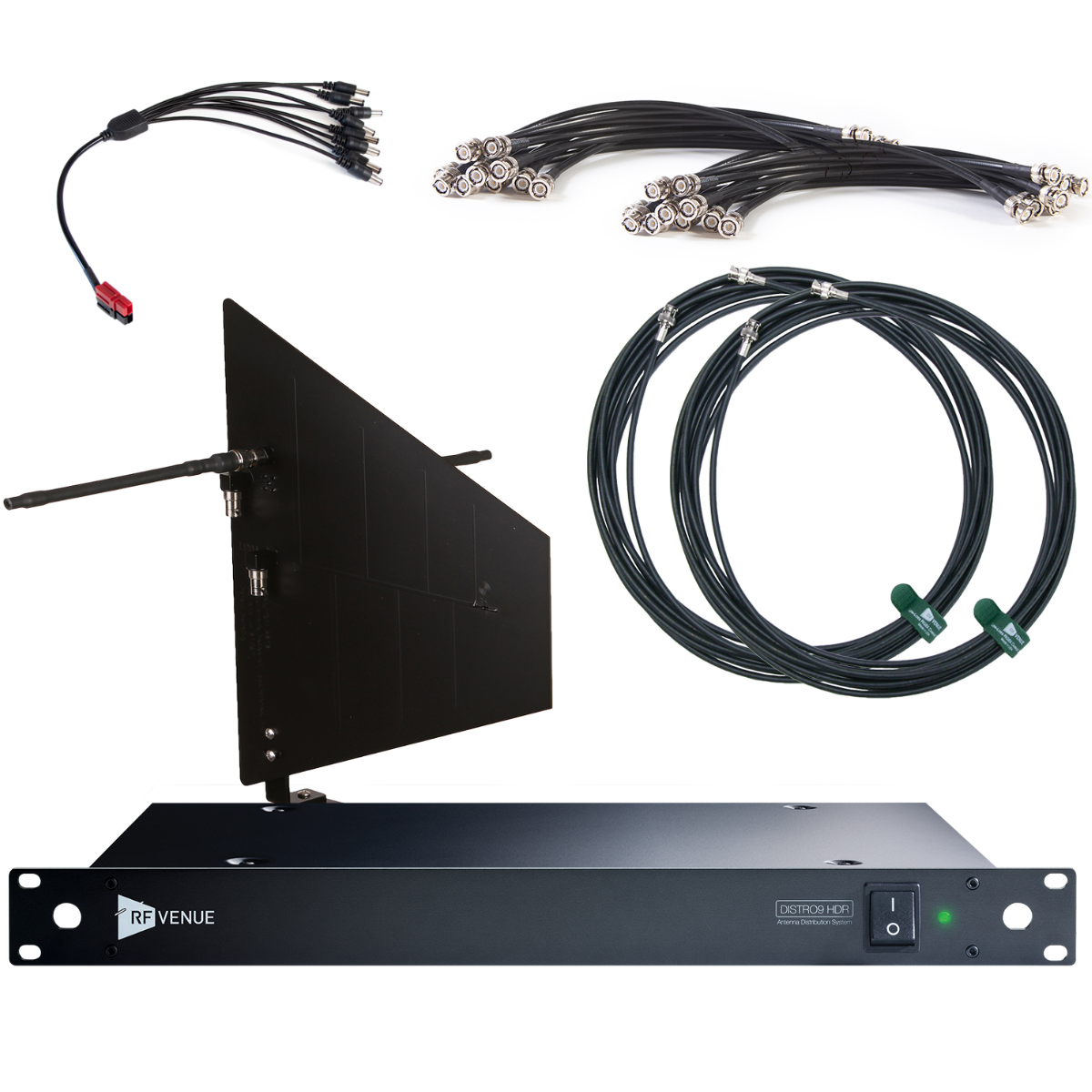

• (1) DFINB Black Diversity Fin Antenna
• (1) Black Wall-Mount Bracket
• (1) DISTRO9 HDR 9-Channel Antenna Distribution System
• (1) AC Power Cord
• (2) RG8X25 25 ft Low-Loss BNC Coaxial Cables
• (1) RG8X1.5-10 10-Pack of 1.5 ft BNC Interconnect Cables
• (1) RG8X2-10 10-Pack of 2 ft BNC Interconnect Cables
• (1) DC-KIT-D9 DC Power Distribution Kit
