RF Venue DFINWD9 | 9-Channel Dual-Zone RF Distribution | White Wallmount Diversity Fin Antenna

RF VENUE DFINWD9  (RF Venue DFIN-WD9)

Wireless Microphone Antenna Distribution Bundle

The RF Venue DFINWD9 is a turnkey 9-channel wireless microphone RF distribution system built around the white wallmount Diversity Fin antenna and DISTRO9 HDR. It combines polarization-diversity reception, dual-zone antenna distribution, low-loss coaxial cabling, and receiver power distribution in a single-rack-space system designed for professional installed wireless microphone applications.

RF Venue DFINWD9 Competitive Differences

• Patented Diversity Fin combines an LPDA and dipole antenna in one cross-polarized enclosure, performing the diversity-reception role of two conventional paddle antennas
• White Diversity Fin and matching wall-mount bracket provide a cleaner appearance for permanent installations in finished spaces
• DISTRO9 HDR supports up to 9 diversity wireless microphone receivers from a single 1RU chassis
• Two diversity antenna input zones provide flexible coverage for large spaces, multiple rooms, or separate RF coverage areas
• DISTRO9 HDR operates across 50–1000 MHz for compatibility with VHF, UHF, and compatible 900 MHz wireless systems
• Any unity-gain RF output can be cascaded to another DISTRO9 HDR for up to 17 wireless microphone channels in 2RU
• DC power over coax can support compatible active antennas or inline RF amplifiers
• Included low-loss RG8X coaxial cabling uses double-shielded braid-over-foil construction for dependable RF signal transfer

RF Venue DFINWD9 Description

The RF Venue DFINWD9 combines RF Venue's patented Diversity Fin antenna technology with the DISTRO9 HDR to provide antenna distribution for systems with up to nine diversity wireless microphone receivers. The Diversity Fin uses a directional LPDA element and a bidirectional dipole positioned at right angles, allowing the antenna to receive both vertically and horizontally polarized RF signals. This polarization-diversity design helps reduce multipath-related signal fades caused by changing microphone and bodypack orientation.

The included DFINW Diversity Fin features a white enclosure and white wall-mount bracket for permanent installation in spaces where a lower-visibility antenna system is preferred. Its passive 470–698 MHz design provides separate A and B BNC outputs and is well suited to houses of worship, schools, theaters, conference facilities, broadcast environments, and other professional wireless microphone installations.

The DISTRO9 HDR provides nine diversity receiver outputs and two diversity antenna input zones in a single 1RU chassis. Its 50–1000 MHz operating range and high-dynamic-range RF architecture are designed for clean distribution across a broad wireless spectrum. The second antenna zone adds flexibility for covering multiple rooms or larger areas, while DC power over coax can support compatible active antennas or inline amplifiers.

The DISTRO9 HDR also provides a 12V DC, 5A power output for compatible receiver power distribution. Low-loss 25-foot antenna cables plus 1.5-foot and 2-foot BNC interconnect cable packs are included to complete the RF connections between the antenna, distributor, and wireless receivers, creating an organized system with fewer separately sourced components.

DFINWD9 Features

• Turnkey RF distribution bundle for up to 9 diversity wireless microphone receivers
• Includes white DFINW Diversity Fin antenna
• Includes white wall-mount bracket for permanent installation
• Patented cross-polarized Diversity Fin antenna design
• Combines directional LPDA and bidirectional dipole antenna elements
• Receives both vertically and horizontally polarized RF signals
• Helps reduce multipath-related wireless microphone signal dropouts
• Diversity Fin operates from 470–698 MHz
• Includes DISTRO9 HDR 9-channel antenna distribution system
• Two diversity antenna input zones for large-area and multi-room installations
• 9 diversity receiver output pairs
• DISTRO9 HDR operates across 50–1000 MHz
• Unity-gain RF outputs can be cascaded to another DISTRO9 HDR
• Supports up to 17 wireless microphone channels with two DISTRO9 HDR units in 2RU
• DC power over coax available for compatible active antennas and inline RF devices
• 12V DC, 5A receiver power output
• Premium low-loss RG8X coaxial antenna and interconnect cables included
• Double-shielded braid-over-foil coaxial cable construction

DFINWD9 Specifications

• Bundle Type: 9-channel wireless microphone antenna and power distribution upgrade pack
• Wireless Microphone Capacity: Up to 9 diversity receiver channels
• DISTRO9 HDR Input Zones: 2
• DISTRO9 HDR RF Inputs: 2 diversity input pairs
• DISTRO9 HDR RF Outputs: 9 diversity output pairs
• DISTRO9 HDR Frequency Range: 50–1000 MHz
• DISTRO9 HDR RF Output Gain: ±3 dB
• DISTRO9 HDR Output Isolation: 60 dB at 510 MHz, 80 dB at 200 MHz
• DISTRO9 HDR Impedance: 50 ohms
• DISTRO9 HDR AC Input: 100–240 VAC
• DISTRO9 HDR Power Requirements: 50/60 Hz, 2A
• DISTRO9 HDR DC Over Coax: 12V DC, 100mA
• DISTRO9 HDR Receiver Power Output: 12V DC, 5A
• DISTRO9 HDR DC Output Connector: Anderson PowerPole
• DISTRO9 HDR Dimensions: 19 x 2 x 10 in (480 x 45 x 250 mm)
• DISTRO9 HDR Weight: 6 lb (2.7 kg)
• Diversity Fin Operating Frequency: 470–698 MHz
• Diversity Fin Bandwidth: 228 MHz
• Diversity Fin Impedance: 50 ohms
• Diversity Fin LPDA Beam Width: 140° azimuth
• Diversity Fin LPDA Gain: 5 dBd
• Diversity Fin Dipole Beam Width: 100° azimuth
• Diversity Fin Dipole Gain: 1.8 dBd
• Diversity Fin Connectors: (2) BNC female
• Diversity Fin Dimensions: 12 x 14.6 in (300 x 370 mm)
• Diversity Fin Weight: 1 lb (454 g)
• Diversity Fin Operating Temperature: -9 to 130°F (-23 to 54°C)
• Diversity Fin Color: White

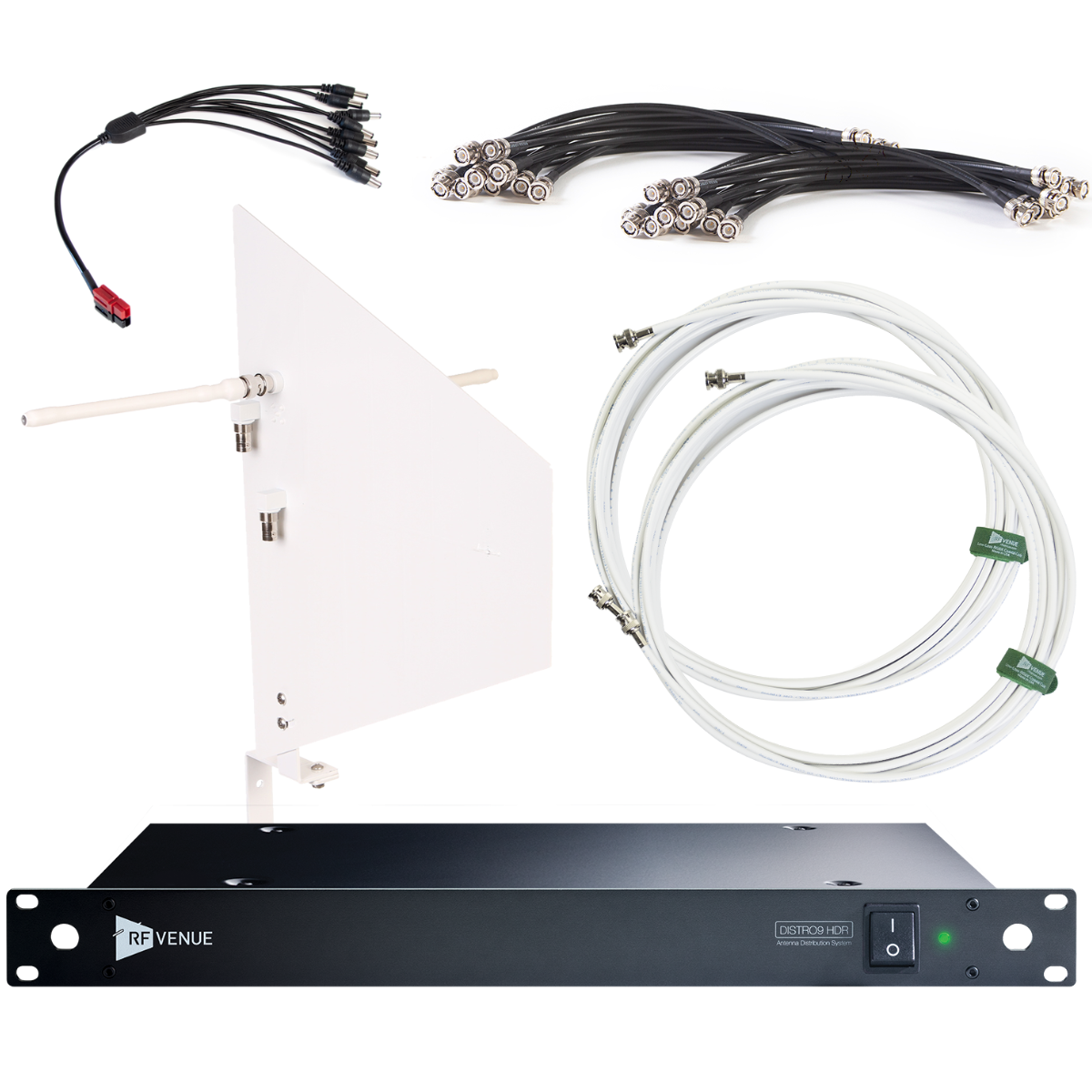

What's In The Box

• (1) DFINW White Diversity Fin Antenna
• (1) White Wall-Mount Bracket
• (1) DISTRO9 HDR 9-Channel Antenna Distribution System
• (1) AC Power Cord
• (2) RG8X25 25 ft Low-Loss BNC Coaxial Cables
• (1) RG8X1.5-10 10-Pack of 1.5 ft BNC Interconnect Cables
• (1) RG8X2-10 10-Pack of 2 ft BNC Interconnect Cables
• (1) DC-KIT-D9 DC Power Distribution Kit
