Samson DE60x | Cardioid 7.35mm Capsule - 135dB Max SPL | IP65 Headset Mic with 4 Wireless Adapters

Samson DE 60x  (Samson DE-60x)

Cardioid Headset Microphone

The Samson DE60x is a low-profile headset microphone designed for clear, consistent speech and vocal reproduction in live performance, broadcast, theater, presentations, houses of worship, and fitness applications. Its miniature 7.35mm condenser capsule uses a cardioid pickup pattern to focus on sound from the front while rejecting off-axis sound and helping reduce feedback.

Samson DE60x Competitive Differences

• 7.35mm miniature condenser capsule provides discreet placement while handling sound pressure levels up to 135dB
• Cardioid polar pattern rejects sound from behind the microphone to improve vocal isolation and help minimize feedback
• IP65-rated construction provides resistance to dust, water, and sweat for fitness instructors and active performers
• Low-profile double-ear design features an adjustable frame and microphone boom for a secure, comfortable fit
• Four detachable adapter cables support 3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F transmitter connections

Samson DE60x Description

The Samson DE60x combines a discreet headset design with a miniature back-electret condenser capsule for speech and vocal applications where clear reproduction and dependable positioning are important. Its 50Hz to 18kHz frequency response supports natural vocal detail, while its 135dB maximum SPL allows it to accommodate energetic performers and high-output voices.

The unidirectional cardioid pickup pattern emphasizes sound arriving from the front of the microphone while rejecting sound from the rear. This makes the DE60x well suited to live stages, presentations, theater productions, fitness instruction, broadcast work, and other environments where reducing surrounding sound and feedback is beneficial.

For active use, the headset features a moisture-resistant coating, gold-plated connector, and stainless steel mesh grille. Its IP65 rating provides protection against dust and water or sweat exposure, helping the microphone withstand demanding performance and fitness environments.

Four detachable cables expand compatibility across wireless systems, with 3.5mm, Hirose 4-pin, Switchcraft TA3F, and Switchcraft TA4F connections included. Four windscreens, a clothing collar clip, and a protective carrying case are also supplied for transport and everyday use.

DE60x Features

• Low-profile double-ear headset microphone
• 7.35mm miniature back-electret condenser capsule
• Unidirectional cardioid polar pattern
• Adjustable headset frame and microphone boom
• Designed for live vocals, broadcast, presentations, theater, houses of worship, and fitness applications
• 50Hz to 18kHz frequency response
• 135dB maximum SPL
• Gold-plated connector
• Moisture-resistant coating
• Stainless steel mesh grille
• IP65-rated for dust and water/sweat resistance
• Includes four detachable wireless transmitter adapter cables
• Includes four windscreens, clothing collar clip, and protective carrying case
• Beige finish for discreet appearance

DE60x Specifications

• Microphone Element: Back-electret condenser
• Capsule Diameter: 7.35mm
• Polar Pattern: Cardioid / Unidirectional
• Frequency Response: 50Hz to 18kHz
• Maximum SPL: 135dB
• Sensitivity: -45dB 1V/Pa ±3dB at 1kHz
• Output Impedance: 2k ohms ±30%
• Operating Voltage: 0.8 to 5V DC
• Cable Length: 3.9 ft / 1.2 m
• Adapter Connections: 3.5mm, Hirose 4-Pin, Switchcraft TA3F, Switchcraft TA4F
• Environmental Rating: IP65 dust and water/sweat resistant
• Color: Beige
• Weight: 13 g / 0.46 oz
• UPC: 809164023401

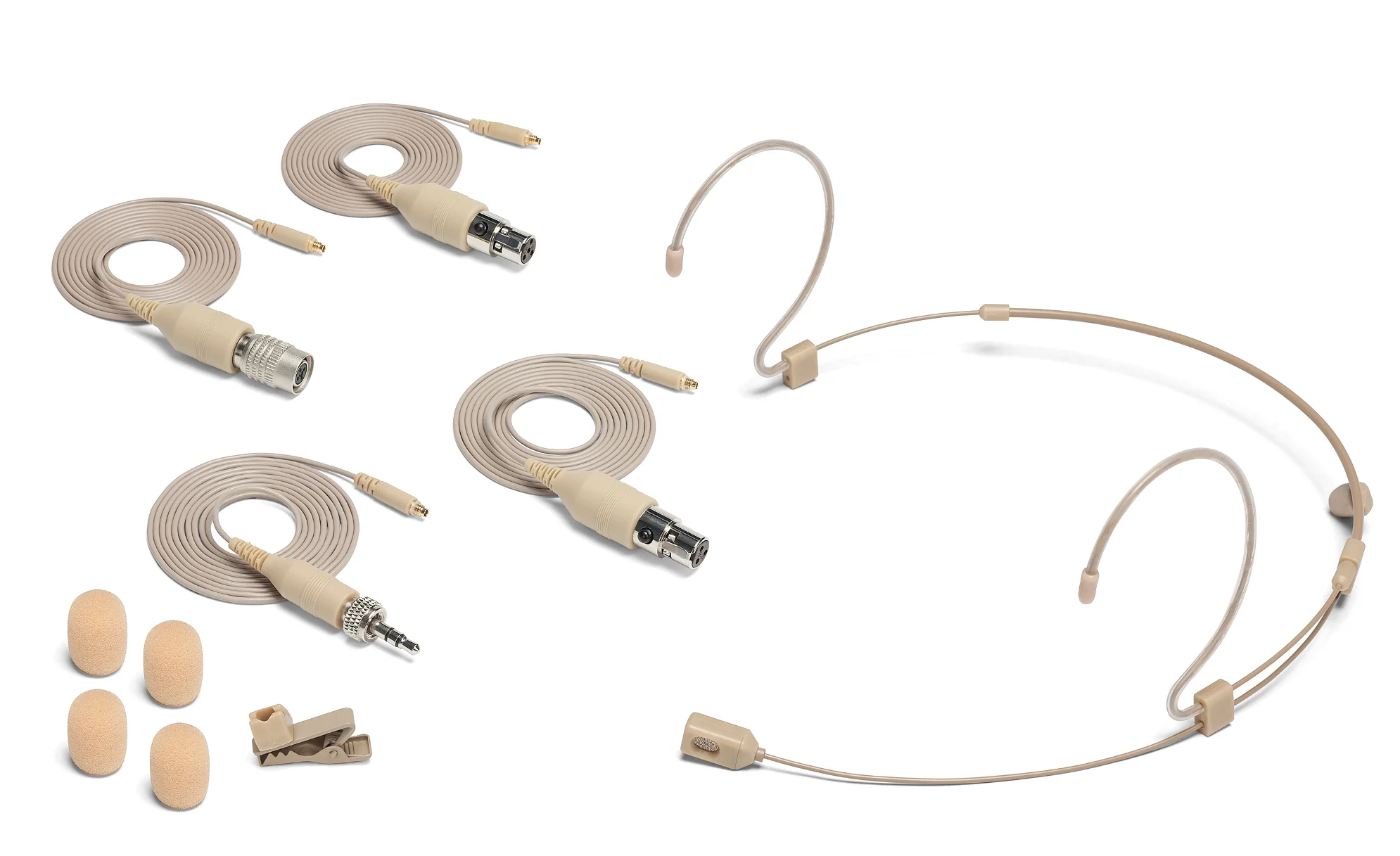

What's In The Box

• Samson DE60x headset microphone
• 3.5mm adapter cable
• Hirose 4-pin adapter cable
• Switchcraft TA3F adapter cable
• Switchcraft TA4F adapter cable
• 4 windscreens
• Clothing collar clip
• Protective carrying case
