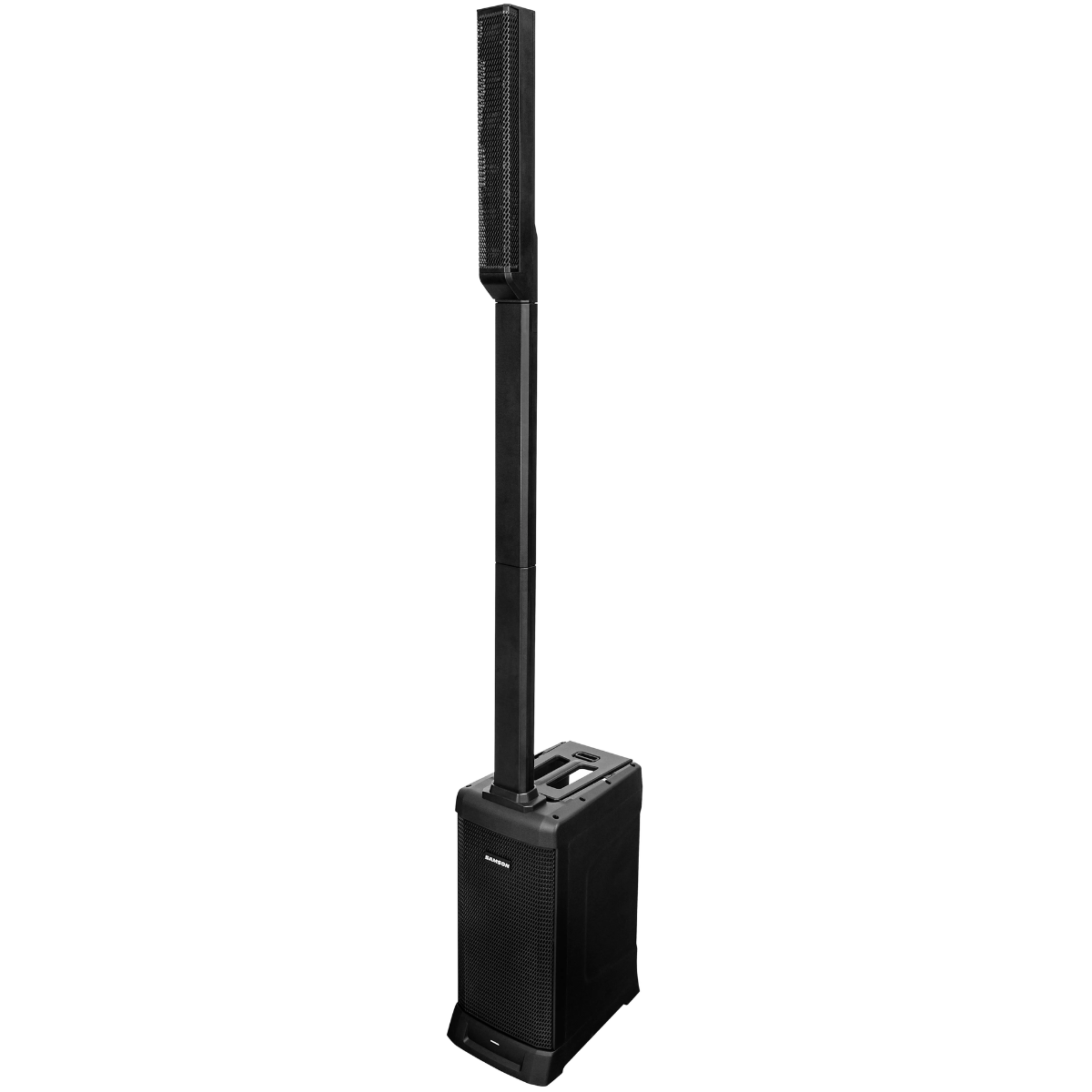

Samson Resound VX6.1 | 400W Column Array - 125dB SPL | 8in Subwoofer with 6x 2.5in Drivers

Samson SAVX61  (sE Electronics SAVX-61)

Portable Column Array PA System

The Samson Resound VX6.1 is a lightweight 400W portable column array PA system designed to deliver clear, full-range sound in a compact package that is easy to transport and set up. An 8-inch subwoofer works with six 2.5-inch neodymium array drivers to produce balanced coverage with up to 125 dB maximum SPL for musicians, mobile DJs, houses of worship, restaurants, retail spaces, and live productions.

Samson Resound VX6.1 Competitive Differences

• 400W Class-D amplification divided between 200W for the subwoofer and 200W for the column array
• Six 2.5-inch neodymium array drivers paired with an 8-inch woofer for clear highs and extended low-frequency response
• 125 dB maximum system SPL for powerful output from a compact portable system
• Integrated 3-channel mixer with two XLR/TRS combo inputs and stereo source connectivity
• Bluetooth audio streaming with True Wireless Stereo pairing for linking two VX6.1 systems
• Samson XPD Wireless USB compatibility for optional XPD Series digital wireless systems
• Five selectable DSP presets and variable reverb for adapting the system to different performances and venues
• Column components store in the rear of the subwoofer for compact one-hand transport

Samson Resound VX6.1 Description

The Samson Resound VX6.1 combines an 8-inch subwoofer with six 2.5-inch neodymium drivers arranged in a vertical column array. A Class-D amplifier supplies 400 watts of total system power, split between 200 watts for the subwoofer and 200 watts for the array, while the system reaches a maximum SPL of 125 dB. Frequency response extends from 60 Hz to 20 kHz at -3 dB and 40 Hz to 20 kHz at -6 dB.

An integrated 3-channel mixer allows the VX6.1 to serve as the center of a compact live sound system. The first two channels provide XLR/TRS combo connections for microphones, line-level equipment, and instruments, while stereo sources can connect through RCA, 3.5mm TRS, or Bluetooth. Samson XPD Wireless USB compatibility also allows supported XPD Series wireless systems to be integrated without a separate conventional receiver connection.

Five selectable DSP presets help optimize the system for different applications, while per-channel 2-band EQ and variable reverb provide additional control over vocals, instruments, and program material. True Wireless Stereo technology allows two VX6.1 systems to be paired wirelessly for stereo Bluetooth playback when a wider sound system is required.

The VX6.1 is designed specifically for portable use. Its interlocking column sections assemble without a separate speaker stand and store in the rear of the subwoofer when transportation is required. At 40 lb, the complete system is well suited for gigging musicians, mobile DJs, houses of worship, restaurants, retail environments, presentations, theaters, and production applications where fast setup and compact storage are important.

Resound VX6.1 Features

• All-in-one portable column array PA system
• 400W Class-D amplification
• 200W subwoofer amplification
• 200W column array amplification
• 8-inch woofer
• Six 2.5-inch neodymium array drivers
• 125 dB maximum SPL
• Top-mounted 3-channel mixer
• Two XLR/TRS combo inputs for microphone, line, and instrument sources
• Stereo RCA input
• 3.5mm stereo TRS input
• Bluetooth wireless audio connectivity
• True Wireless Stereo pairing with a second compatible Resound system
• Samson XPD Wireless USB compatibility
• Five selectable DSP presets
• 2-band EQ per channel
• Variable reverb
• XLR Thru output with Mix/Channel 1 selection
• Interlocking column components for fast setup
• Column sections store in the rear of the subwoofer for transport
• Extension column segment included
• 40 lb total system weight

Resound VX6.1 Specifications

• System Type: Portable column array PA system
• Amplifier Type: Class D
• System Output Power: 400W
• Subwoofer Power: 200W
• Array Power: 200W
• Maximum SPL: 125 dB
• Frequency Response: 60 Hz to 20 kHz (-3 dB)
• Extended Frequency Response: 40 Hz to 20 kHz (-6 dB)
• Low-Frequency Driver: 8-inch woofer
• Array Drivers: 6 x 2.5-inch neodymium drivers
• Mixer: Integrated 3-channel mixer
• Input Channels: 6 inputs configured as 2 mono and 2 stereo
• Analog Inputs: XLR/TRS combo Mic/Line/Instrument, stereo RCA, 3.5mm TRS
• Wireless Input: Bluetooth
• Wireless Microphone Compatibility: Samson XPD Series USB wireless systems, sold separately
• Output: XLR Thru, selectable Mix/Channel 1
• DSP: 5 selectable presets
• EQ: 2-band per channel
• Effects: Variable reverb
• Wireless Linking: True Wireless Stereo pairing
• Assembled Dimensions: 74 x 15 x 11 in (188 x 38 x 28 cm)
• Weight: 40 lb (18 kg)
