Shure AD610 | ShowLink Access Point for ADX & AXT | Real-Time Wireless Control via 2.4GHz

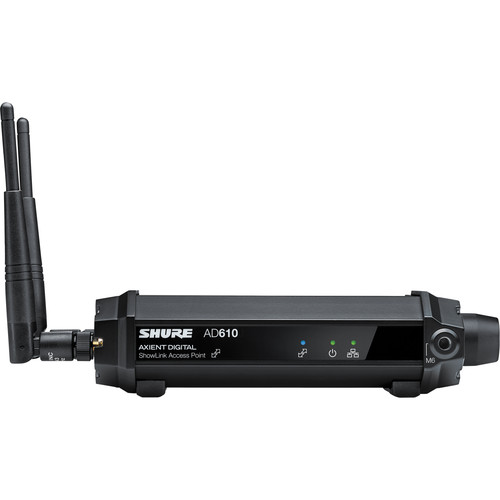

Shure Professional AD 610  (Shure AD610)

Wireless Access Point for Axient Systems

The Shure AD610 is a ShowLink Wireless Access Point that enables real-time remote control of Axient Digital (ADX) and Axient analog (AXT) transmitters. Designed for demanding live and broadcast applications, it ensures uninterrupted performance adjustments via a robust 2.4GHz wireless link, all without interrupting the audio signal.

Shure AD610 Competitive Differences

• Supports up to 24 transmitters per access point
• True diversity antenna design ensures reliable 2.4GHz communication

Shure AD610 Description

The Shure AD610 is a central part of the Axient ShowLink ecosystem, giving technicians and engineers full control of transmitter parameters—such as gain, frequency, and mute functions—in real time. This access point creates a dedicated 2.4GHz network (IEEE 802.15.4) that runs parallel to the audio RF, allowing remote adjustments without affecting the performance or audio quality. Engineered for flexibility and reliability, the AD610 includes true diversity SMA antenna inputs and automatic channel selection to maintain optimal signal integrity. For complex productions, multiple AD610 units can be deployed to expand coverage or manage more transmitters across a larger performance area. With support for Power over Ethernet (PoE) or optional external power, this unit integrates easily into networked systems. The durable, IPX3-rated aluminum housing makes it road-ready for touring, theater, broadcast, and any application where wireless mic control is critical.

Model Features

• Real-time control of up to 24 ADX or AXT transmitters
• 2.4GHz ShowLink wireless communication
• True diversity antenna design for stable connections
• Automatic frequency agility and transmitter hand-off
• PoE or 15V DC power options (power supply not included)

Model Specifications

• Supported Transmitters: ADX, AXT (up to 24)
• Frequency Range: 2.40 – 2.4835 GHz
• Antenna Inputs: 2 x SMA (50 Ohms, omnidirectional)
• Network Interface: Ethernet 10/100 Mb/s (DHCP or manual IP)
• Power: PoE (36–57 VDC) or 15V DC, 600 mA (external supply)
• Housing: Extruded aluminum, IPX3 rated
• Dimensions: 7.4 x 4.0 x 1.8 in (without antennas)
• Weight: 16.3 oz (464 g without antennas)
• UPC: Not specified

What's In The Box

• Shure AD610 Wireless Access Point
• 2 x Omnidirectional 2.4GHz antennas
