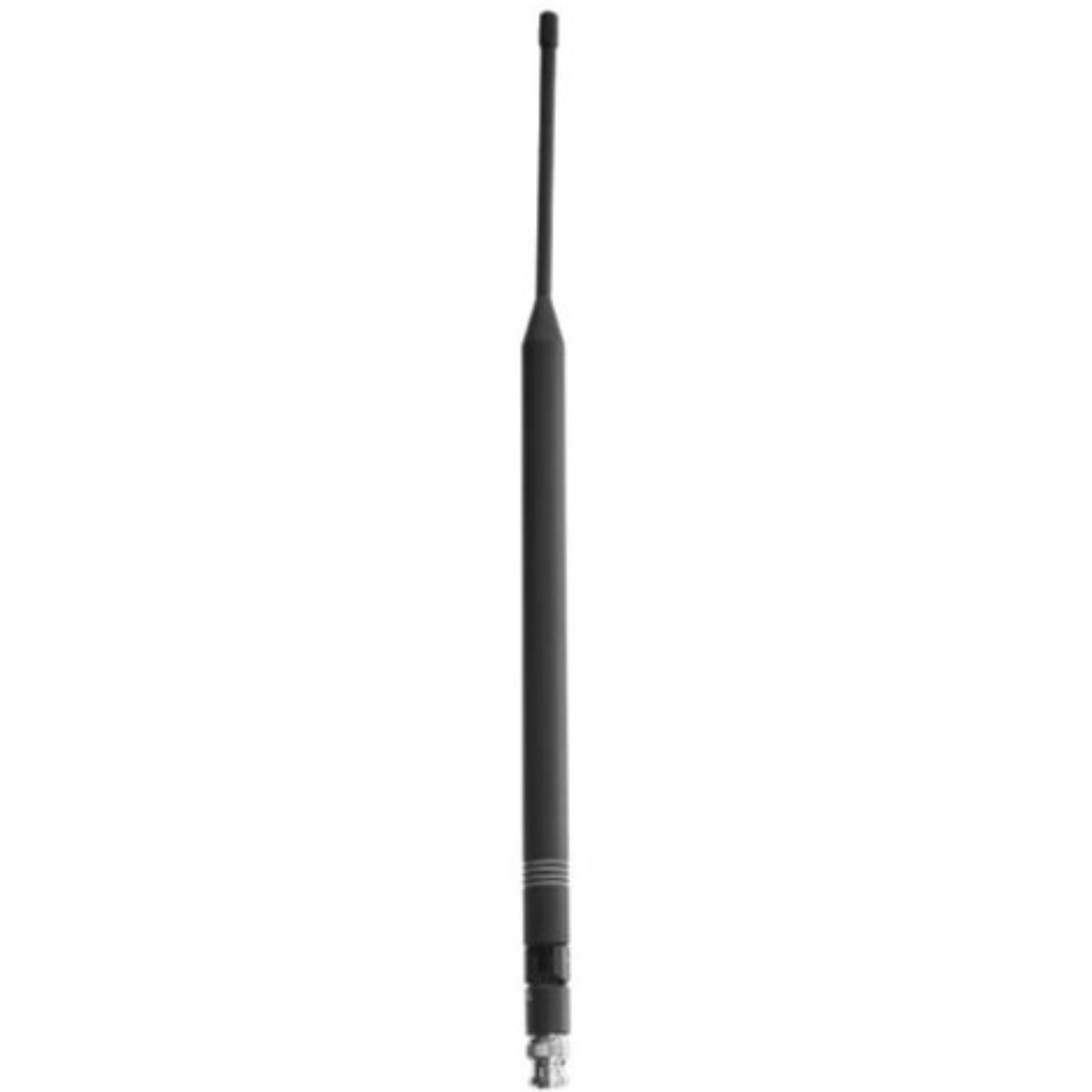

Shure UA8-470-636 | 470-636MHz Half-Wave Antenna | Adjustable 0°, 45° and 90° Positioning

Shure UA8-470-636  (Shure UA8470636)

Half-Wave UHF Antenna

The Shure UA8-470-636 is a single half-wave omnidirectional dipole antenna designed for compatible Shure wireless receivers and personal monitor transmitters operating between 470 and 636MHz. Its BNC connection and adjustable joint make it suitable for front-rack antenna placement in touring, installed sound, broadcast, corporate audiovisual, and house-of-worship systems.

Shure UA8-470-636 Competitive Differences

• Wide 470–636MHz operating range supports compatible Shure wireless frequency bands
• Half-wave dipole design provides omnidirectional RF reception around the antenna
• Adjustable joint supports 0-degree, 45-degree, and 90-degree positioning
• BNC connector allows direct attachment to compatible receivers, transmitters, and rack antenna hardware
• Suitable for relocating compatible receiver antennas to the front of an equipment rack
• Frequency-dependent compatibility with multiple Shure wireless and personal monitoring product families
• Current UA8 design replaces the earlier Shure UA820 antenna series

Shure UA8-470-636 Description

The Shure UA8-470-636 is designed for professional wireless systems operating across the 470–636MHz UHF range. Its half-wave dipole construction provides an omnidirectional reception pattern, making it useful for wireless microphone systems in venues where transmitters may move throughout the performance area.

The integrated pivoting joint allows the antenna to be positioned at 0 degrees, 45 degrees, or 90 degrees. This flexibility helps installers arrange antennas correctly when attached directly to a receiver or relocated to the front panel of an equipment rack.

A standard BNC connector provides straightforward installation with compatible Shure wireless receivers, personal monitor transmitters, antenna distribution systems, and rackmount antenna hardware. Compatibility depends on the connected device operating within the antenna’s 470–636MHz frequency range.

The UA8-470-636 is suited to touring productions, live venues, houses of worship, theaters, broadcast facilities, corporate audiovisual systems, and rental companies using compatible Shure wireless equipment. It is supplied as one antenna rather than a matched pair.

UA8-470-636 Features

• Half-wave UHF dipole antenna
• Omnidirectional reception pattern
• 470–636MHz operating frequency range
• Adjustable 0-degree, 45-degree, and 90-degree positioning
• BNC antenna connector
• Suitable for compatible front-rack antenna installations
• Compatible with select Shure wireless receivers when frequency ranges match
• Compatible with select Shure PSM transmitters when frequency ranges match
• Supports touring, installed sound, broadcast, presentation, and house-of-worship applications
• Replaces the earlier Shure UA820 antenna

UA8-470-636 Specifications

• Product Type: UHF wireless system antenna
• Antenna Type: Half-wave dipole
• Reception Pattern: Omnidirectional
• Operating Frequency: 470–636MHz
• Connector Type: BNC
• Positioning Angles: 0°, 45°, and 90°
• Compatible Systems: Select Shure Axient, UHF-R, ULX-D, ULX, SLX, SLX-D, QLX-D, and BLX4R receivers within the supported frequency range
• Compatible Transmitters: Select Shure PSM900 and PSM1000 transmitters within the supported frequency range
• Quantity: 1 antenna
• Package Dimensions: 14.95 x 2.95 x 0.75 in (380 x 75 x 19 mm)
• Package Weight: 0.15 lb (0.07 kg)
• Warranty: 2-year limited manufacturer warranty
• UPC: 042406529969

What's In The Box

• Shure UA8-470-636 half-wave UHF antenna
