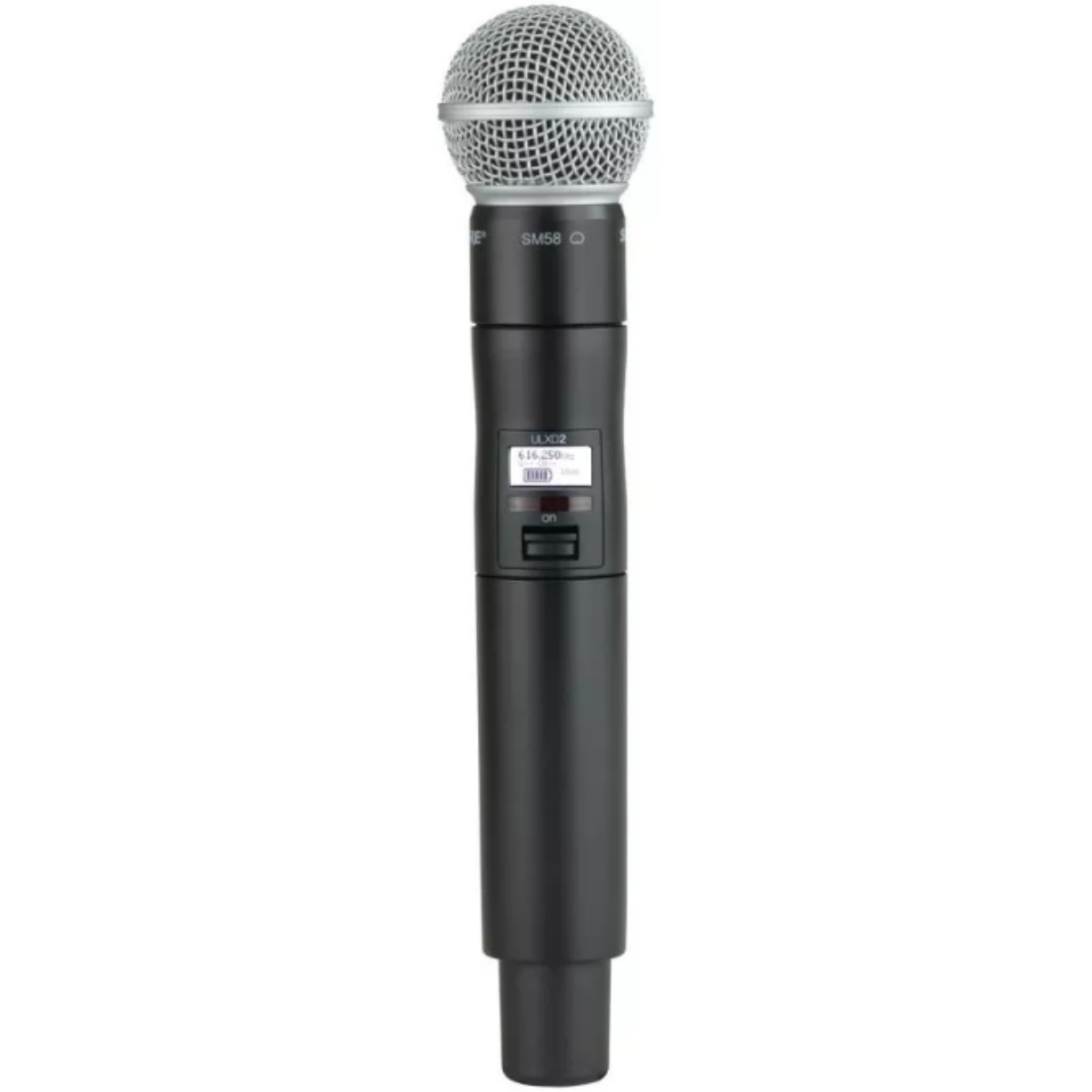

Shure ULXD2/SM58-G50 | SM58 Handheld Transmitter | 470-534 MHz ULX-D Wireless

Shure ULXD2SM58 G50  (Shure ULXD2/SM58 G50)

Digital Wireless Handheld Transmitter

The Shure ULXD2/SM58 G50 is a digital handheld wireless transmitter for Shure ULX-D Digital Wireless Systems, equipped with an SM58 cardioid microphone cartridge. Designed for professional live sound, presentations, houses of worship, theaters, and installed systems, it combines dependable RF performance, secure digital transmission, rugged construction, and the familiar vocal response of the SM58.

Shure ULXD2/SM58 G50 Competitive Differences

• Includes the Shure SM58 cardioid dynamic microphone cartridge
• G50 frequency band operates from 470 to 534 MHz
• AES 256-bit encryption supports applications requiring secure wireless transmission
• Shure Gain Ranging optimizes system dynamic range without requiring transmitter gain adjustments
• Interchangeable Shure microphone cartridge design provides flexibility for different applications
• Selectable 1 mW, 10 mW, and 20 mW RF output power
• Rugged machined aluminum housing for professional use

Shure ULXD2/SM58 G50 Description

The Shure ULXD2/SM58 G50 delivers professional digital wireless performance in a durable handheld format. It is designed for use with compatible ULX-D Digital Wireless receivers and incorporates an integrated single-band helical antenna for streamlined operation.

The included SM58 cartridge provides the proven cardioid vocal performance widely used for live vocals and speech. The transmitter also accepts interchangeable compatible Shure microphone cartridges, allowing the system to be adapted to different performers and applications without replacing the complete transmitter.

AES 256-bit encryption is available when secure wireless transmission is required, while Shure Gain Ranging automatically optimizes the system's dynamic range for the input source. A backlit LCD provides access to transmitter settings and status information, and frequency and power lockout functions help prevent unintended changes during an event.

The machined aluminum housing is designed to withstand demanding professional environments. Power can be supplied by compatible Shure SB900-series rechargeable lithium-ion batteries or standard AA batteries, making the ULXD2 suitable for touring productions, corporate events, theaters, houses of worship, and installed sound systems.

ULXD2/SM58 G50 Features

• ULX-D digital handheld wireless transmitter
• Includes SM58 cardioid microphone cartridge
• 30 Hz to 20 kHz transmitter frequency response; actual system response depends on microphone cartridge
• Interchangeable Shure microphone cartridges
• AES 256-bit encryption
• Shure Gain Ranging technology
• Selectable 1 mW, 10 mW, and 20 mW RF output power
• Integrated single-band helical antenna
• Backlit LCD with menu and controls
• Frequency and power lockout
• External charging contacts for compatible docked charging systems
• Machined aluminum construction

ULXD2/SM58 G50 Specifications

• Wireless System Compatibility: Shure ULX-D Digital Wireless Systems
• Microphone Cartridge: Shure SM58
• Polar Pattern: Cardioid
• Frequency Band: G50
• RF Frequency Range: 470–534 MHz
• Audio Frequency Response: 30 Hz–20 kHz; actual response is microphone dependent
• Gain Offset Range: 0 to 21 dB in 3 dB steps
• Maximum Input Level: 145 dB SPL at 1 kHz, 1% THD with SM58, typical
• RF Output Power: 1 mW, 10 mW, or 20 mW
• Occupied Bandwidth: Less than 200 kHz
• Modulation: Shure proprietary digital
• Antenna Type: Integrated single-band helical
• Battery Type: Shure SB900-series rechargeable lithium-ion battery or 2 AA batteries
• Dimensions: 10.1 x 2.0 in (256 x 51 mm), length x diameter
• Weight: 12.0 oz (340 g), without batteries
• Housing: Machined aluminum
