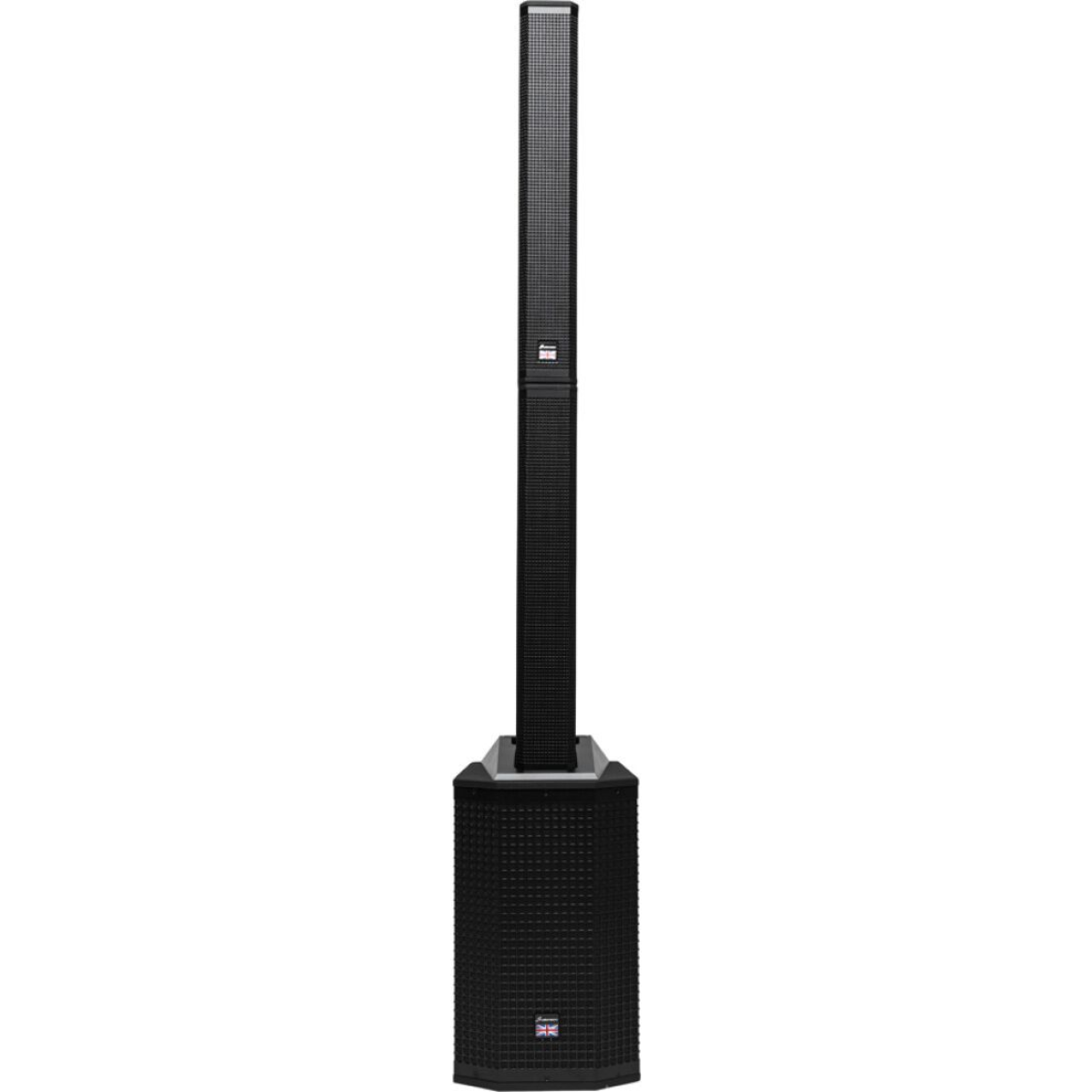

StudioMaster Direct 121M
(Studio Master Direct-121M)
Active Column Array PA System
The Studiomaster Direct 121M is a self-powered 3-way column array PA system that combines a six-driver midrange column, dedicated compression driver, and 12-inch bass reflex subwoofer in one portable system. Its integrated mixer, Bluetooth connectivity, digital signal processing, and wide sound coverage make it useful for live performances, DJ events, presentations, houses of worship, schools, and mobile sound reinforcement.
Studiomaster Direct 121M Competitive Differences
- 600W RMS and 2400W peak system power with up to 122dB maximum SPL
- Six 3-inch midrange drivers, a 1-inch compression driver, and a 12-inch bass reflex subwoofer
- Integrated 4-channel mixer with microphone, line, instrument, RCA, and Bluetooth connectivity
- 24-bit DSP with Music, DJ, and Speech presets, EQ, high-pass filtering, limiting, and digital delay
- Digital delay adjustable up to 100 meters for delay-speaker and distributed-audio applications
- Tool-free column assembly with internal connections for fast setup and teardown
Studiomaster Direct 121M Description
The Studiomaster Direct 121M uses a 3-way speaker configuration to deliver full-range sound from a compact column system. Six 3-inch midrange drivers reproduce vocals and instruments, while the dedicated 1-inch compression driver handles high-frequency detail. A powered 12-inch bass reflex subwoofer supplies the system's low-frequency output.
The integrated 4-channel mixer supports two microphone or line-level sources through XLR/TRS combination inputs, a high-impedance instrument source, and a stereo RCA source. Bluetooth audio streaming provides convenient wireless playback, while the available XLR outputs support signal linking and connection to additional sound equipment.
A built-in 24-bit DSP processor provides Music, DJ, and Speech presets along with adjustable equalization, gain, high-pass filtering, limiter protection, and output delay. The digital delay can be adjusted for distances up to 100 meters in 0.25-meter increments, allowing the system to be aligned with additional speakers in larger or distributed setups.
Efficient Class-D amplification and a universal 100–240V switch-mode power supply support reliable portable operation. The column sections connect without external speaker cables, allowing the system to be assembled quickly for mobile DJs, live performers, corporate events, houses of worship, rental applications, schools, and small venue sound reinforcement.
Direct 121M Features
- Self-powered 3-way column array PA system
- 600W RMS total system power
- 2400W peak system power
- Maximum SPL of 122dB
- Six 3-inch midrange drivers
- One 1-inch precision compression driver
- 12-inch powered bass reflex subwoofer
- 120° horizontal by 30° vertical sound coverage
- High-efficiency Class-D amplification
- Integrated 4-channel mixer
- Two Mic/Line XLR/TRS combination inputs
- High-impedance instrument input
- Stereo RCA input
- Bluetooth wireless audio streaming
- True Wireless Stereo Bluetooth pairing
- 24-bit DSP with graphic display and rotary encoder
- Music, DJ, and Speech DSP presets
- Adjustable master equalization
- High-pass filter and limiter protection
- Digital delay adjustable up to 100 meters
- Dedicated subwoofer level control
- Tool-free assembly with internal column connections
- Universal 100–240V AC switch-mode power supply
Direct 121M Specifications
- System Type: Self-Powered 3-Way Column Array PA System
- System Power: 600W RMS / 2400W Peak
- Amplifier Output: 2 x 300W RMS
- Amplifier Type: Class-D
- Maximum SPL: 122dB
- Frequency Response: 35Hz–20kHz
- Midrange Drivers: 6 x 3 in
- High-Frequency Driver: 1 x 1 in Compression Driver
- Subwoofer: 1 x 12 in Bass Reflex Woofer
- Coverage: 120° H x 30° V
- Mixer: Integrated 4-Channel Mixer
- Mic/Line Inputs: 2 x XLR/TRS Combination Inputs
- Instrument Input: 1 x 1/4 in Hi-Z Input
- Stereo Input: 1 x RCA Stereo Pair
- Line Outputs: 2 x XLR Line-Link Outputs
- Mix Output: 1 x XLR Pre-DSP Mix Output
- DSP: 24-Bit Processing with Graphic Display
- DSP Presets: Music, DJ, and Speech
- DSP Functions: EQ, Gain, High-Pass Filter, Limiter, Delay, and Preset Storage
- Digital Delay: 0–100 m in 0.25 m Increments
- Wireless Audio: Bluetooth with True Wireless Stereo Pairing
- Power Supply: 100–240V AC Switch-Mode Power Supply
- Approx. Assembled Dimensions: 14.1 x 82.9 x 17.2 in (357 x 2105 x 437 mm)
- Approx. System Weight: 71.7 lb (32.5 kg)
What's In The Box
- Studiomaster Direct 121M powered subwoofer and mixer unit
- Full-range column speaker
- Height-adjusting column section
- Power cable
- User manual
- Warranty documentation
