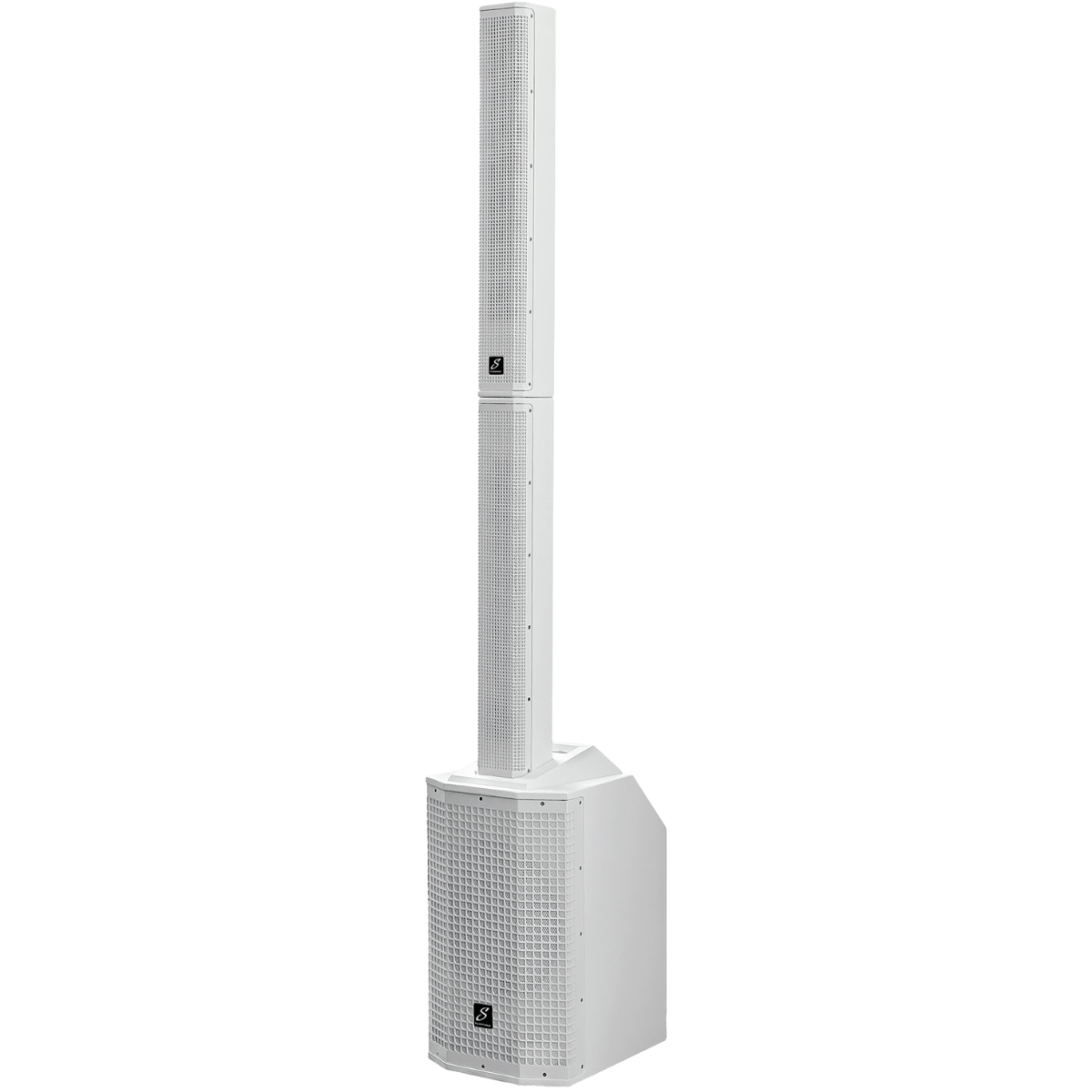

StudioMaster Direct 121M White
(Studio Master Direct-121M-White)
Active Column Array PA System
The Studiomaster Direct 121M in white is a self-powered 3-way column array PA system that combines a six-driver midrange column, dedicated compression driver, and 12-inch bass reflex subwoofer in a portable all-in-one design. Its integrated mixer, Bluetooth connectivity, digital processing, and wide sound coverage make it useful for live performances, DJ events, presentations, houses of worship, schools, and mobile sound reinforcement.
Studiomaster Direct 121M Competitive Differences
- Distinctive white finish for weddings, corporate events, houses of worship, and visually coordinated installations
- 600W RMS system output with up to 122dB maximum SPL
- Six 3-inch midrange drivers, a 1-inch compression driver, and a 12-inch bass reflex subwoofer
- Integrated 4-channel mixer with microphone, line, instrument, RCA, and Bluetooth connectivity
- 24-bit DSP with equalization, high-pass filtering, limiter protection, and adjustable digital delay
- Digital delay supports delay-speaker alignment at distances up to 100 meters
- Tool-free column assembly with internal connections for fast setup and teardown
Studiomaster Direct 121M Description
The white Studiomaster Direct 121M uses a 3-way speaker configuration to deliver balanced, full-range sound from a compact column system. Six 3-inch midrange drivers reproduce vocals and instruments, while a dedicated 1-inch compression driver provides high-frequency detail. A powered 12-inch bass reflex subwoofer delivers the system's low-frequency output.
The integrated 4-channel mixer supports two microphone or line-level sources through XLR/TRS combination inputs, a high-impedance instrument source, and a stereo RCA source. Bluetooth audio streaming provides convenient wireless playback from compatible smartphones, tablets, and computers.
Built-in 24-bit DSP provides digital equalization, gain adjustment, high-pass filtering, limiter protection, and output delay. The delay can be adjusted for distances up to 100 meters in 0.25-meter increments, allowing the system to be aligned with additional speakers in larger rooms or distributed sound applications.
Efficient Class-D amplification and a universal 100–240V switch-mode power supply support portable operation in a wide range of locations. The tool-free column assembly reduces setup time, making the system suitable for mobile DJs, live performers, corporate events, wedding production, rental applications, schools, houses of worship, and small venues.
Direct 121M Features
- Self-powered 3-way column array PA system
- White exterior finish
- 600W RMS total system output
- Maximum SPL of 122dB
- Six 3-inch midrange drivers
- One 1-inch precision compression driver
- 12-inch powered bass reflex subwoofer
- 120° horizontal by 30° vertical sound coverage
- High-efficiency Class-D amplification
- Integrated 4-channel mixer
- Two Mic/Line XLR/TRS combination inputs
- One high-impedance instrument input
- One stereo RCA input
- XLR line-link and mix outputs
- Bluetooth wireless audio streaming
- 24-bit DSP processing
- Graphic DSP display with rotary control
- Digital equalization and gain control
- Adjustable high-pass filter
- Limiter protection
- Digital delay adjustable up to 100 meters
- Dedicated subwoofer level control
- Tool-free assembly with internal column connections
- Universal 100–240V AC switch-mode power supply
Direct 121M Specifications
- System Type: Self-Powered 3-Way Column Array PA System
- Color: White
- Total Power Output: 600W RMS
- Amplifier Output: 2 x 300W RMS
- Amplifier Type: Class-D
- Maximum SPL: 122dB
- Frequency Response: 35Hz–20kHz
- Midrange Drivers: 6 x 3 in
- High-Frequency Driver: 1 x 1 in Compression Driver
- Subwoofer: 1 x 12 in Bass Reflex Woofer
- Coverage: 120° H x 30° V
- Mixer: Integrated 4-Channel Mixer
- Mic/Line Inputs: 2 x XLR/TRS Combination Inputs
- Instrument Input: 1 x 1/4 in Hi-Z Input
- Stereo Input: 1 x RCA Stereo Pair
- Outputs: XLR Line-Link and Mix Outputs
- DSP: 24-Bit Processing with Graphic Display
- DSP Functions: EQ, Gain, High-Pass Filter, Limiter, and Delay
- Digital Delay: Up to 100 m in 0.25 m Increments
- Wireless Audio: Bluetooth
- Power Supply: 100–240V AC Switch-Mode Power Supply
- Approx. Assembled Dimensions: 14.1 x 82.9 x 17.2 in (357 x 2105 x 437 mm)
- Approx. System Weight: 71.7 lb (32.5 kg)
