Swisson XES 8G | 8-Port Gigabit etherCON Switch | Art-Net, sACN & Dante Optimized

Swisson XES-8G  (Swisson XES8G)

8-Port Gigabit Ethernet Switch

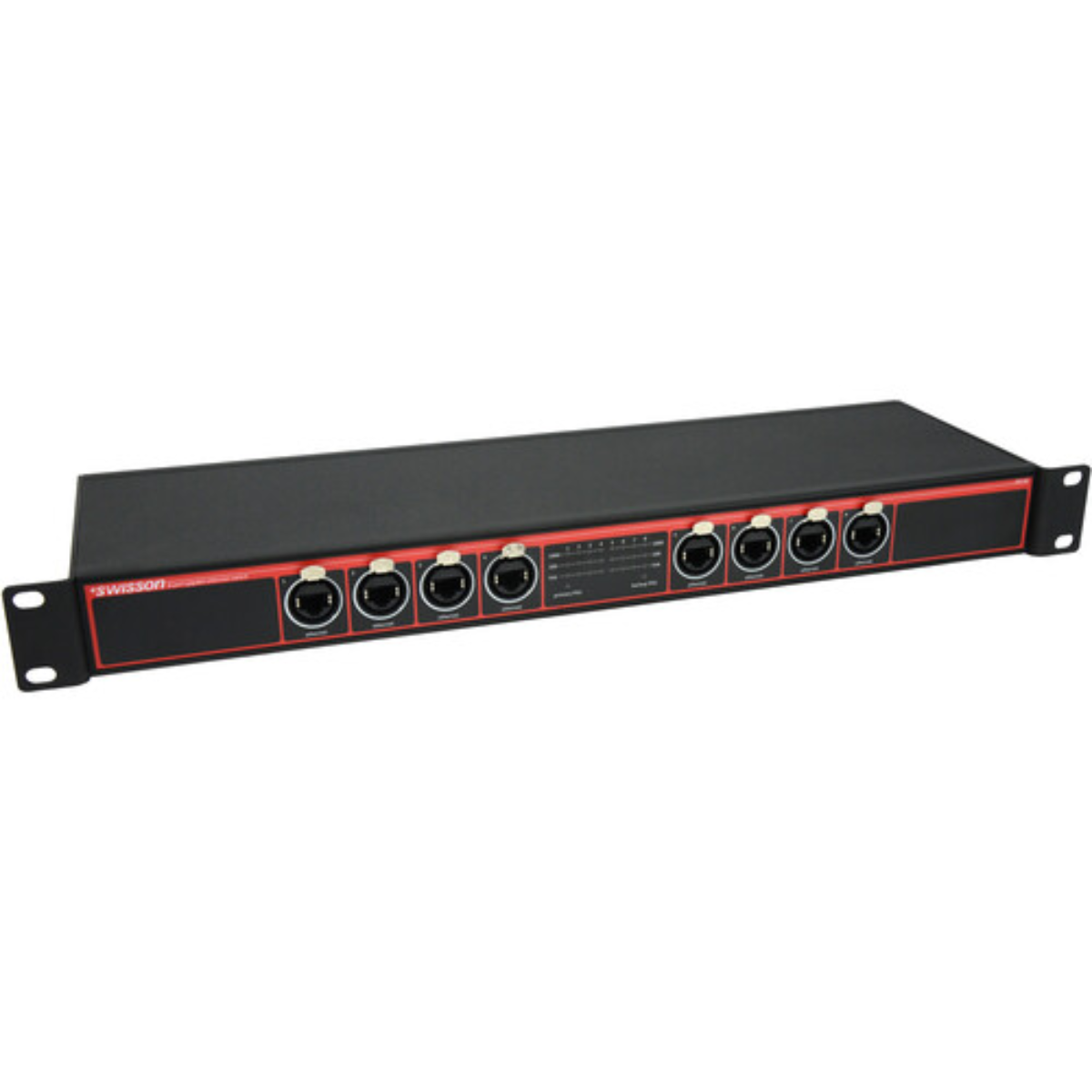

The Swisson XES 8G is a professional 1U rackmount Gigabit Ethernet switch optimized for Art-Net, sACN, and Dante networks used in lighting, audio, and multimedia systems. Eight Neutrik etherCON RJ45 ports, non-blocking Layer 2 switching, and redundant internal power supplies make it well suited for theaters, touring productions, live events, installations, and other applications where dependable network distribution is critical.

Swisson XES 8G Competitive Differences

• Eight Neutrik etherCON RJ45 ports support 10BASE-T, 100BASE-TX, and 1000BASE-T Gigabit Ethernet.
• Non-blocking Layer 2 architecture is optimized for Art-Net, sACN, and Dante network traffic.
• Four-queue DiffServ provides quality-of-service prioritization designed for Dante traffic.
• No broadcast bandwidth limitation helps accommodate broadcast-heavy protocols such as Art-Net.
• Supports more than 1000 simultaneous Art-Net or sACN universes under available full-bandwidth conditions.
• Dante capacity of up to 128 channels per direction at 48 kHz under available full-bandwidth conditions.
• Two independent internal power supplies provide automatic failover if the primary power supply loses power.
• Separate Neutrik powerCON inputs and loop-through outputs are provided for both primary and backup power supplies.

Swisson XES 8G Description

The Swisson XES 8G is designed specifically for professional entertainment networks where standard Ethernet infrastructure must reliably carry lighting, audio, and multimedia data. Its eight Gigabit-capable etherCON ports provide secure network connections for consoles, lighting nodes, audio devices, media systems, and other Ethernet-enabled equipment.

The non-blocking Layer 2 switching architecture provides the bandwidth required for demanding real-time applications. Swisson has optimized the switch for Art-Net, sACN, and Dante, including four-queue DiffServ QoS for Dante and unrestricted broadcast traffic for protocols such as Art-Net. The switch also remains ready to forward data during periods of low network activity rather than entering a sleep state that could introduce additional forwarding delay.

For Dante systems, the XES 8G supports an estimated capacity of up to 128 channels in each direction at 48 kHz. Art-Net and sACN capacity exceeds 1000 simultaneous universes when the full network bandwidth is available to the application, giving lighting programmers and system designers substantial capacity for multi-universe control networks.

Reliability is strengthened by two separate internal power supplies. When both are connected, the primary supply operates the switch while the backup remains on standby and automatically takes over if the primary supply fails. A 19-inch, 1U rackmount format, Neutrik etherCON network connectors, and separate powerCON input and loop-through connections make the unit practical for touring racks, theaters, concert lighting systems, TV studios, theme parks, architectural lighting, and permanent installations.

XES 8G Features

• 8-port Gigabit Ethernet switch
• 8 x Neutrik etherCON Cat 5e RJ45 network connectors
• 10/100/1000 Mbps Ethernet operation
• Non-blocking Layer 2 Ethernet switching
• Optimized for Art-Net, sACN, and Dante
• More than 1000 simultaneous Art-Net/sACN universes under full-bandwidth conditions
• Up to 128 Dante channels per direction at 48 kHz under full-bandwidth conditions
• Four-queue DiffServ QoS optimized for Dante
• No broadcast bandwidth limitation
• Does not enter sleep mode during periods without network traffic
• Auto-negotiating Ethernet ports
• Auto MDI-X
• Two independent internal power supplies
• Automatic backup power supply takeover
• 2 x Neutrik powerCON power inputs
• 2 x Neutrik powerCON loop-through outputs
• Individual network link and activity indicators
• Primary and backup PSU status indicators
• Passive cooling
• 19-inch 1U rackmount design

XES 8G Specifications

• Ethernet Ports: 8
• Network Connectors: 8 x Neutrik etherCON Cat 5e RJ45
• Ethernet Standards: 1000BASE-T, 100BASE-TX, 10BASE-T
• Gigabit Ethernet Standard: IEEE 802.3ab
• Ethernet Features: Auto-Negotiating, Auto MDI-X
• Switch Type: Non-Blocking Layer 2 Ethernet Switch
• Address Look-Up Engine: 4000 Entries
• Packet Buffer: 192 Kbytes
• Art-Net/sACN Capacity: More Than 1000 Simultaneous Universes
• Dante Capacity: Up to 128 Channels per Direction at 48 kHz
• Power Supplies: 2 Independent Internal PSUs
• Power Connections: 2 x Neutrik powerCON Inputs, 2 x Neutrik powerCON Loop-Through Outputs
• AC Power Input: 100–240 VAC, 50/60 Hz
• Typical Power Consumption: 6.5W
• Maximum Load per AC Mains Loop-Through Output: 19.8A
• Maximum Ethernet Cable Length: 328 ft (100 m)
• Operating Temperature: -22 to 122°F (-30 to 50°C)
• Rack Mount: 19 in, 1U
• Dimensions: 19 x 5.35 x 1.75 in (482.6 x 136 x 44.5 mm)
• Weight: 3.75 lb (1.7 kg)
• Manufacturer Article Number: 10 42 18
