Swisson XND-8R5 | 8-Port Art-Net/sACN DMX Node | 5-Pin XLR Rackmount Interface

Swisson XND-8R5  (Swisson XND8R5)

8-Port Ethernet DMX Node

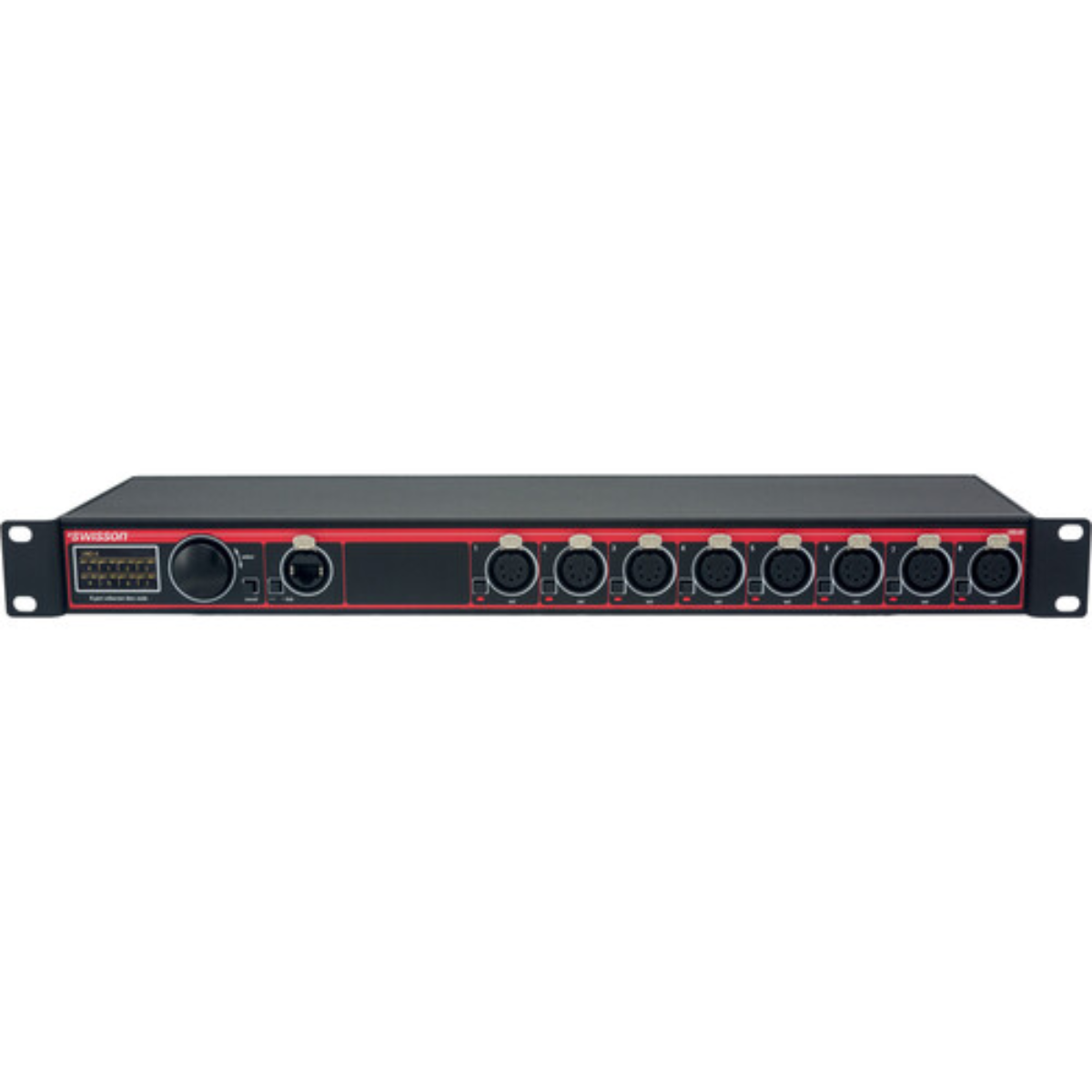

The Swisson XND 8R5 is a rackmount Ethernet DMX node that distributes up to eight independent DMX universes using Art-Net or sACN. Eight individually optically isolated 5-pin XLR ports can be configured as inputs or outputs, making it a flexible network interface for touring, installed, theatrical, and event lighting systems.

Swisson XND 8R5 Competitive Differences

• Supports up to eight independent DMX universes through eight individually optically isolated ports.
• Each 5-pin XLR DMX port can be individually configured as an input or output.
• Supports Art-Net 1 through 4, sACN, DMX512, and RDM on DMX output ports.
• Automatically merges DMX data when two controllers transmit to the same universe.
• 128 x 64 monochrome OLED display and rotary encoder provide direct configuration and status monitoring.
• Web interface provides access to status information, configuration settings, and firmware updates.
• Neutrik powerCON input and output support convenient rack power connections.

Swisson XND 8R5 Description

The Swisson XND 8R5 is designed for lighting systems that need to move multiple DMX universes over an Ethernet network. It converts Art-Net or sACN network data to DMX and can also accept DMX input for conversion to network protocols, allowing the unit to serve as a versatile bridge between traditional DMX equipment and network-based lighting control.

All eight DMX ports are individually optically isolated and can be independently configured as inputs or outputs. This makes the XND 8R5 suitable for lighting consoles, media servers, computers, architectural systems, theaters, touring racks, and permanent installations where multiple universes need to be distributed from a centralized network connection.

Configuration is available directly from the front panel using the 128 x 64 pixel OLED display, rotary encoder, and dedicated port-access buttons. A built-in web interface also allows network settings and Art-Net or sACN preferences to be managed remotely while providing device status and firmware update access.

The 19-inch rackmount chassis is built for professional lighting environments and uses passive cooling with a typical power consumption of only 11W. Universal 100–240 VAC operation and powerCON input and output connectors simplify integration into touring and installed equipment racks.

XND 8R5 Features

• 8-port Ethernet DMX node
• Supports up to 8 independent DMX universes
• 8 x 5-pin XLR DMX ports
• Each DMX port individually configurable as input or output
• Individual optical isolation for each DMX port
• Supports Art-Net 1 through 4
• Supports sACN
• Supports DMX512
• Supports RDM on DMX output ports
• Automatic DMX merging when two controllers transmit to the same universe
• 128 x 64 pixel monochrome OLED display
• Rotary encoder for front-panel configuration
• Quick-access button for each DMX port
• Web interface for status, settings, and firmware updates
• DHCP capability for automatic network configuration
• 10BASE-T / 100BASE-TX Ethernet
• Auto-negotiating Ethernet connection with Auto MDI-X
• Neutrik powerCON power input and output
• Universal power supply
• Passive cooling
• 19-inch rackmount design

XND 8R5 Specifications

• DMX Universes: Up to 8
• DMX Channels: Up to 4096
• DMX Ports: 8 x 5-Pin XLR Female, Configurable as Input or Output
• Network Connection: RJ45 Ethernet
• Ethernet: 10BASE-T / 100BASE-TX, Auto-Negotiating, Auto MDI-X
• Network Protocols: Art-Net 1–4, sACN, sACN Draft Version 0.2
• DMX Standard: ANSI E1.11
• RDM Standard: ANSI E1.20, Output Ports Only
• Signal Interface: EIA-485
• Display: 128 x 64 Pixel Monochrome OLED
• Power Input: 100–240 VAC
• Typical Power Consumption: 11W
• Power Connectors: Neutrik powerCON Input and Output
• Cooling: Passive
• Operating Temperature: -22 to 122°F (-30 to 50°C)
• Rack Mount: 19 in
• Dimensions: 19 x 5.35 x 1.75 in (482.6 x 136 x 44.5 mm)
• Weight: Approximately 4 lb (1.8 kg)
• Manufacturer Article Number: 10 48 31
