Turbosound TS-MC12-P | 12in Point Source Element - 138dB SPL | Touring & Install with Asymmetrical Coverage

Turbosound TS-MC12-P  (TurboSound MC12-P)

Point Source Loudspeaker

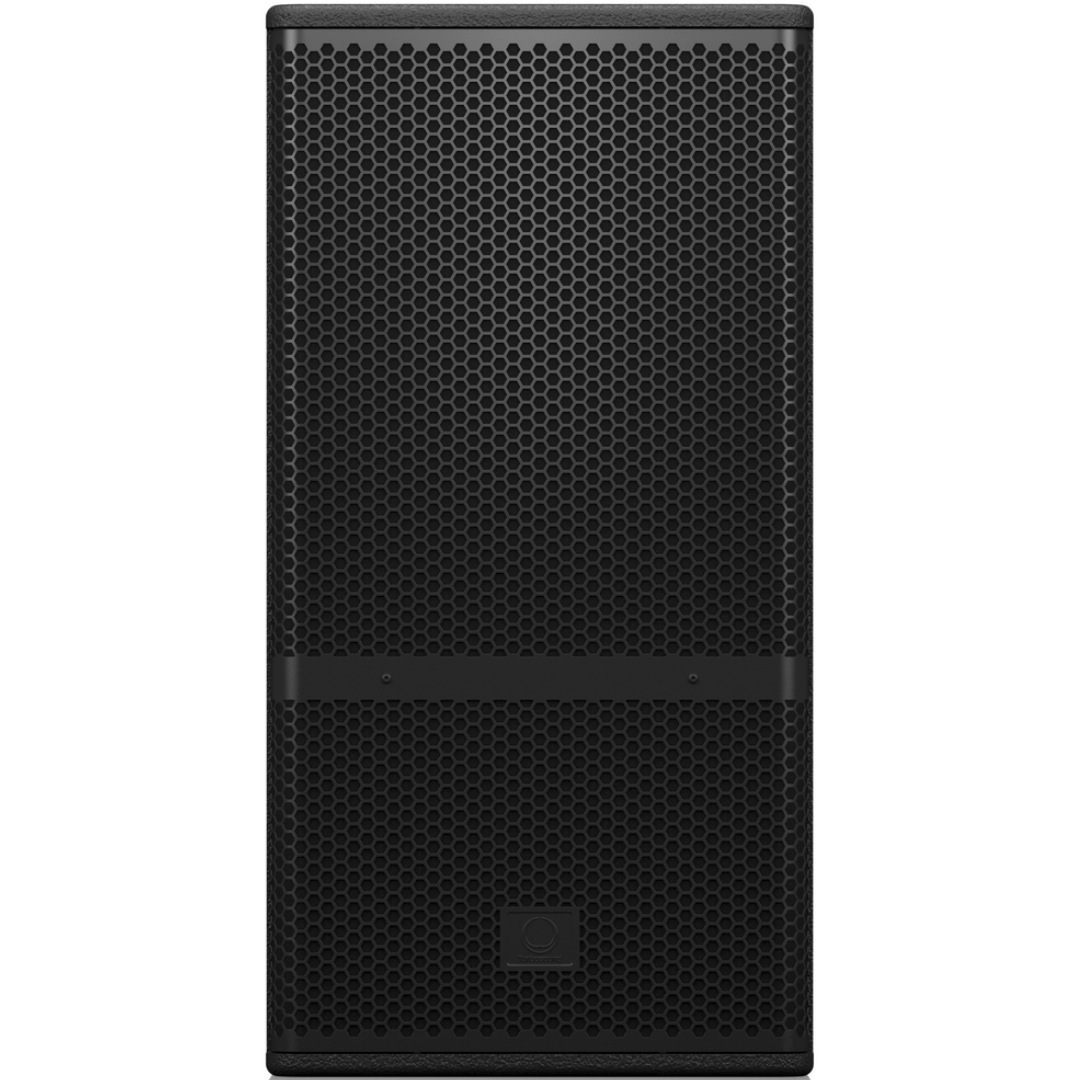

Turbosound TS-MC12-P is a full-size 12" 3-way point source asymmetrical element designed for high-output sound reinforcement in touring and fixed install applications. Its powerful SPL capability, bi-amp/passive flexibility, and weather-resistant build make it an exceptional solution for front-of-house systems in a wide range of venues.

Turbosound TS-MC12-P Competitive Differences

• Up to 140dB max SPL with hybrid bi-amp/passive operation
• Asymmetrical 40–100° horizontal dispersion for targeted coverage

Turbosound TS-MC12-P Description

The Turbosound TS-MC12-P delivers outstanding power, clarity, and flexibility in a compact format. Featuring a 12" neodymium low-frequency driver and a 1.4" coaxial compression driver, it’s capable of producing full-range sound from 39Hz to 20kHz. The integrated Dendritic Plane Wave Transformer (DPWT) waveguide ensures smooth, wide, and controlled dispersion, ideal for both speech and music applications. Its bi-amplified and switchable passive modes provide adaptability depending on the audio system requirements. When paired with Lab Gruppen amplifiers and Lake DSP, it offers advanced FIR filtering and seamless system tuning for optimal sound performance. Built for the rigors of touring and outdoor installs, the TS-MC12-P features a weather-resistant birch plywood enclosure, IP54-rated protection, and a semi-matte polyurethane finish. Integrated rigging points and a dual-angle pole mount allow flexible deployment options.

Model Features

• 3-way, full-range 12" point source speaker
• 690W continuous, 2,760W peak power handling
• Asymmetrical 40°–100° (H) x 30° (V) dispersion
• Bi-amp and passive switchable operation
• Max SPL: 138dB (passive) / 140dB (bi-amp)
• Weather-resistant IP54-rated enclosure
• Seamless integration with Lab Gruppen and Lake DSP
• Integral suspension hardware and dual-angle pole mount

Model Specifications

• Frequency Response (-3 dB): 55 Hz – 20 kHz
• Frequency Response (-10 dB): 39 Hz – 20 kHz
• Dispersion: 40–100° (H) x 30° (V) asymmetrical
• Max SPL: 138 dB (passive), 140 dB (bi-amp)
• Power Handling: 690W continuous / 2,760W peak
• Impedance: 8Ω (FR), LF: 8Ω, MHF: 12Ω
• Enclosure: 15/18mm marine birch plywood, vented
• Connectors: 2 x 4-pole twist-lock (NLT4MP STX)
• Dimensions: 27.6 x 24 x 18.1 in (700 x 358 x 460 mm)
• Weight: 62.8 lb (28.5 kg)
• IP Rating: IP54
• Finish: Black polyurethane
• Grille: Powder-coated steel

What's In The Box

• TS-MC12-P loudspeaker
• User documentation
